CCEC Engine Models

CCEC-Chongqing Engine Co., Ltd. is a joint venture company established by Chongqing Electromechanical Co., Ltd. and CMS Corporation of the United States in October 1995 with a 50:50 shareholding.
CCEC, Ltd. mainly produces CMS N, K, M, QSK series mechanical and electronically controlled diesel engines. Engine displacement 10.8 L, 14 L, 18.9 L, 38 L, 50 L, power range from 145 kW to 1343 kW
The main products meet the emission requirements of Stage 2 and Stage 3 (Euro 2, Euro 3) for road diesel engines stipulated by the Chinese National Standard, American Standard and European Standard, as well as the first and second stage emission requirements of off-highway vehicle diesel engines (Tier 1 and 2). Tier 2)
Products are widely used in construction machinery, marine propulsion power units and auxiliary power units, water pump power units, generator sets, natural gas engines and other fields.



Find Engines by Series

This is the list of all CCEC engines series for gas generator drive, industrial, pump set, generator drive and marine applications. Click here to find engines by type

Industrial Engine

MTA11 Industrial	185 – 451 HP
NTA855 Industrial	240 – 451 HP
QSNT Industrial	500 HP
KTA19 Industrial	451 – 700 HP
KTA38 Industrial		925 – 1101 HP
KTA50 Industrial			1600 – 2682 HP
QSK19 Industrial	506 – 815 HP
QSK23 Industrial		760 – 860 HP
QSK38 Industrial		1085 – 1600 HP
QSK50 Industrial			1400 – 2500 HP
QSK60 Industrial				2237 – 3004 HP
QSK78 Industrial						3500 HP
QSK95 Industrial								4400 HP
X15 Industrial	375 – 535 HP
QST30 Industrial		1050 – 1200 HP
Engine Model Power/HP	0	600	1200	1800	2400	3000	3600	4200
	Emission Srandard:Euro ⅠEuro ⅡEuro ⅢEuro ⅣEuro ⅤEuro ⅥEuro Ⅶ

CCEC Industrial Engine Catalogue

Series

Model

QSM11 N/A Euro I – III	We are sorry to tell that mechanical M11 engine no longer in production, please choose QSM11 engine to replace M11 engine.
	M11-G2 \| 300HP @ 1500 RPM	M11-C225A \| 185 HP @ 1850 RPM	M11-C225B \| 225 HP @ 1800 RPM	M11-C225C \| 290 HP @ 1800 RPM
	M11-C225D \| 225 HP @ 2100 RPM	M11-C225E \| 275 HP @ 2100 RPM	M11-C225H \| 245 HP @ 2100 RPM	M11-C250A \| 244 HP @ 2100 RPM
	M11-C250B \| 249 HP @ 2100 RPM	M11-C250E20 \| 249 HP @ 2100 RPM	M11-C270 \| 270 HP @ 2100 RPM	M11-C270E20 \| 270 HP @ 2100 RPM
	M11-C290 \| 290 HP @ 2100 RPM	M11-C290E20 \| 290 HP @ 2100 RPM	M11-C300A \| 300 HP @ 2100 RPM	M11-C300B \| 290 HP @ 2100 RPM
	M11-C300C \| 300 HP @ 2100 RPM	M11-C310A \| 310 HP @ 2100 RPM	M11-C310B \| 310 HP @ 2100 RPM	M11-C310E20 \| 310 HP @ 2100 RPM
	M11-C330 \| 330 HP @ 2100 RPM	M11-C330E20 \| 330 HP @ 2100 RPM	M11-C350 \| 350 HP @ 2100 RPM	M11-C350E20 \| 350 HP @ 2100 RPM
	M11-C380E20 \| 381 HP @ 2100 RPM	ISM305E20 \| 300 HP @ 1900 RPM	ISM305ESP22 \| 300 HP @ 1900 RPM	ISME335 30 \| 330 HP @ 1900 RPM
	ISM340E20 \| 335 HP @ 1900 RPM	ISME345 30 \| 341 HP @ 1900 RPM	ISM380 \| 380 HP @ 1800 RPM	ISM380E20 \| 380 HP @ 1900 RPM
	ISME385 30 \| 381 HP @ 2100 RPM	ISM405E20 \| 400 HP @ 1900 RPM	ISME420 30 \| 410 HP @ 1900 RPM	ISM440E20 \| 426 HP @ 1900 RPM
	ISM450 \| 451 HP @ 1800 RPM
NTA855 N/A Euro II	NT855-C250 \| 251 HP @ 2100 RPM	NT855-C280 \| 240 HP @ 2000 RPM	NT855-C280B \| 280 HP @ 2100 RPM	NTA855-C310 \| 310 HP @ 2100 RPM
	NTA855-C335 \| 335 HP @ 2100 RPM	NTA855-C360 \| 345 HP @ 2000 RPM	NTA855-C360B \| 359 HP @ 2100 RPM	NTA855-C400 \| 345 HP @ 1900 RPM
	NTA855-C400B \| 400 HP @ 2100 RPM	NTA855-C450 \| 451 HP @ 2100 RPM
QSNT N/A Euro III	QSNT-C500 \| 500 HP @ 2000 RPM
KTA19 N/A Euro II	KT19-C450 \| 451 HP @ 2200 RPM	KTA19-C/P/L525 \| 526 HP @ 2100 RPM	KT19-C.L600 \| 601 HP @ 2100 RPM	KTTA19-C700 \| 700 HP @ 2100 RPM
KTA38 N/A Euro II	KT38-C925 \| 925 HP @ 2100 RPM	KTA38-C/P/L1050 \| 1050 HP @ 2100 RPM	KTA38-C1100 \| 1100 HP @ 1800 RPM

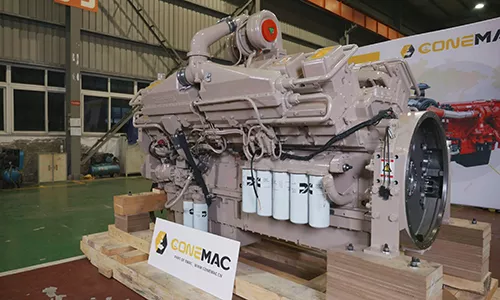

KTA50 N/A Euro II – III	KTA50-C1600 \| 1600 HP @ 2100 RPM	KTA50-C1600-II \| 1601 HP @ 1900 RPM	KTA50-C1800 \| 1801 HP @ 1900 RPM	KTA50-C2000 \| 2682 HP @ 1900 RPM
KTA50 N/A Euro II – III	KTTA50-C2000 \| 1999 HP @ 1900 RPM	KTA50-C2250 \| 2252 HP @ 1900 RPM
QSK19 2857 mm * 1415 mm * 1766 mm Euro II – III	QSK19-C506 \| 506 HP @ 1800 RPM	QSK19-C525 \| 525 HP @ 2000 RPM	QSK19-C560A \| 560 HP @ 2000 RPM	QSK19-C560B \| 560 HP @ 2000 RPM
	QSK19-C600 \| 599 HP @ 2000 RPM	QSK19-C675 \| 675 HP @ 1800 RPM	QSK19-C700A \| 700 HP @ 2000 RPM	QSK19-C700B \| 700 HP @ 1800 RPM
	QSK19-C760 \| 760 HP @ 2100 RPM	QSK19-C800 \| 800 HP @ 2100 RPM	QSK19-G3 \| 815 HP @ 1800 RPM
QSK23 N/A Euro II	QSK23-C760 \| 760 HP @ 1800 RPM	QSK23-C860 \| 860 HP @ 2100 RPM
QSK38 2260 mm * 1339 mm * 2332 mm Euro II	QSK38-C1085 \| 1085 HP @ 1800 RPM	QSK38-C1086 \| 1086 HP @ 1800 RPM	QSK38-C1200 \| 1200 HP @ 1800 RPM	QSK38-C1260 \| 1260 HP @ 1800 RPM
QSK38 2260 mm * 1339 mm * 2332 mm Euro II	QSK38-C1350 \| 1530 HP @ 1800 RPM	QSK23-C1530 \| 1530 HP @ 1900 RPM	QSK38-C1600 \| 1600 HP @ 1900 RPM
QSK50 2857 mm * 1415 mm * 1766 mm Euro II	QSK50-C1400 \| 1400 HP @ 1800 RPM	QSK50-C1500 \| 1500 HP @ 1800 RPM	QSK50-C1600 \| 1600 HP @ 1800 RPM	QSK50-C1675 \| 1675 HP @ 1800 RPM
QSK50 2857 mm * 1415 mm * 1766 mm Euro II	QSK50-C2500 \| 2500 HP @ 1900 RPM
QSK60 N/A Euro I – II	QSK60-C2237 \| 2237 HP @ 1800 RPM	QSK60-C2300 \| 2300 HP @ 1900 RPM	QSK60-C3000 \| 3000 HP @ 1900 RPM
QSK78 N/A Euro II	QSK78-C3500 \| 3500 HP @ 1900 RPM
QSK95 N/A Euro II	QSK95-C4400 \| 4400 HP @ 1800 RPM
X15 N/A Euro III	X15-C535 \| 535 HP @ 2100 RPM	QSX15-C375 \| 375 HP @ 1800 RPM	QSX15-C525 \| 525 HP @ 2100 RPM	QSX15-C530 \| 530 HP @ 1800 RPM
QST30 N/A Euro II	QST30-C1050 \| 1050 HP @ 1900 RPM	QST30-C1200 \| 1200 HP @ 1800 RPM
——END——

M11-G2 Industrial Engine

Rated Power: 300 HP @ 1500 RPM
Max. Torque: N/A
Fuel System: PT-STC
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

M11-C225A Industrial Engine

Rated Power: 185 HP @ 1850 RPM
Max. Torque: 788 N.m/1250r/min.
Fuel System: PT-STC
Aspiration: TC & Water-Air Intercooler
Emission Standard: Tier 1

M11-C225B Industrial Engine

Rated Power: 225 HP @ 1800 RPM
Max. Torque: 1071 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Water-Air Intercooler
Emission Standard: Tier 1

M11-C225C Industrial Engine

Rated Power: 290 HP @ 1800 RPM
Max. Torque: 1200 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Water-Air Intercooler
Emission Standard: Tier 1

M11-C225D Industrial Engine

Rated Power: 225 HP @ 2100 RPM
Max. Torque: 1031 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Water-Air Intercooler
Emission Standard: Tier 1

M11-C225E Industrial Engine

Rated Power: 275 HP @ 1800 RPM
Max. Torque: 1288 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Water-Air Intercooler
Emission Standard: Tier 1

M11-C225H Industrial Engine

Rated Power: 245 HP @ 2100 RPM
Max. Torque: 1031 N.m / 1300 r/min.
Fuel System: PT-STC
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

M11-C250A Industrial Engine

Rated Power: 244 HP @ 2100 RPM
Max. Torque: 1019.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

M11-C250B Industrial Engine

Rated Power: 249 HP @ 2100 RPM
Max. Torque: 1146 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Water-Air Intercooler
Emission Standard: Tier 1

M11-C250E20 Industrial Engine

Rated Power: 249 HP @ 2100 RPM
Max. Torque: 1146 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Air-Air Intercooler
Emission Standard: Naitonal II

M11-C270 Industrial Engine

Rated Power: 270 HP @ 2100 RPM
Max. Torque: 1248 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Water-Air Intercooler
Emission Standard: Tier 1

M11-C270E20 Industrial Engine

Rated Power: 270 HP @ 2100 RPM
Max. Torque: 1248 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Water-Air Intercooler
Emission Standard: Naitonal II

M11-C290 Industrial Engine

Rated Power: 290 HP @ 2100 RPM
Max. Torque: 1329 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Water-Air Intercooler
Emission Standard: Tier 1

M11-C290E20 Industrial Engine

Rated Power: 290 HP @ 2100 RPM
Max. Torque: 1200 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Air-Air Intercooler
Emission Standard: Naitonal II

M11-C300A Industrial Engine

Rated Power: 300 HP @ 2100 RPM
Max. Torque: 1376 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Water-Air Intercooler
Emission Standard: Tier 1

M11-C300B Industrial Engine

Rated Power: 290 HP @ 2100 RPM
Max. Torque: 1329 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Water-Air Intercooler
Emission Standard: Tier 1

M11-C300C Industrial Engine

Rated Power: 300 HP @ 2100 RPM
Max. Torque: 1376 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

M11-C310A Industrial Engine

Rated Power: 310 HP @ 2100 RPM
Max. Torque: 1265 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Air-Air Intercooler
Emission Standard: Tier 1

M11-C310B Industrial Engine

Rated Power: 310 HP @ 2100 RPM
Max. Torque: 1424 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Water-Air Intercooler
Emission Standard: Tier 1

M11-C310E20 Industrial Engine

Rated Power: 310 HP @ 2100 RPM
Max. Torque: 1265 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Air-Air Intercooler
Emission Standard: Naitonal II

M11-C330 Industrial Engine

Rated Power: 330 HP @ 2100 RPM
Max. Torque: 1458 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Water-Air Intercooler
Emission Standard: Tier 1

M11-C330E20 Industrial Engine

Rated Power: 330 HP @ 2100 RPM
Max. Torque: 1458 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Air-Air Intercooler
Emission Standard: Naitonal II

M11-C350 Industrial Engine

Rated Power: 350 HP @ 2100 RPM
Max. Torque: 1560 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Water-Air Intercooler
Emission Standard: Tier 1

M11-C350E20 Industrial Engine

Rated Power: 350 HP @ 2100 RPM
Max. Torque: 1560 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Air-Air Intercooler
Emission Standard: Naitonal II

M11-C380E20 Industrial Engine

Rated Power: 381 HP @ 2100 RPM
Max. Torque: 1650 N.m/1300r/min.
Fuel System: PT-STC
Aspiration: TC & Air-Air Intercooler
Emission Standard: Naitonal II

ISM305E20 Industrial Engine

Rated Power: 300 HP @ 1900 RPM
Max. Torque: 1550 N.m/1200r/min.
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro II

ISM305ESP22 Industrial Engine

Rated Power: 300 HP @ 1900 RPM
Max. Torque: 1450 N.m/1200r/min.
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro II

ISME335 30 Industrial Engine

Rated Power: 330 HP @ 1900 RPM
Max. Torque: 1410 N.m/1200r/min.
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro III

ISM340E20 Industrial Engine

Rated Power: 335 HP @ 1900 RPM
Max. Torque: 1699 N.m/1200r/min.
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro II

ISME345 30 Industrial Engine

Rated Power: 341 HP @ 1900 RPM
Max. Torque: 1710 N.m/1200r/min.
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro III

ISM380 Industrial Engine

Rated Power: 380 HP @ 1800 RPM
Max. Torque: 1627 N.m/1200r/min.
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: 1999 EPA/CARB

ISM380E20 Industrial Engine

Rated Power: 375 HP @ 1900 RPM
Max. Torque: 1825 N.m/1200r/min.
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro II

ISME385 30 Industrial Engine

Rated Power: 380 HP @ 1900 RPM
Max. Torque: 1835 N.m/1200r/min.
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro III

ISM405E20 Industrial Engine

Rated Power: 400 HP @ 1900 RPM
Max. Torque: 2000 N.m/1200r/min.
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro II

ISM410E20 Industrial Engine

Rated Power: 402 HP @ 1900 RPM
Max. Torque: 2000 N.m/1200r/min.
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro II

ISME420 30 Industrial Engine

Rated Power: 410 HP @ 1900 RPM
Max. Torque: 2010 N.m/1200r/min.
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro III

ISM440E20 Industrial Engine

Rated Power: 426 HP @ 1900 RPM
Max. Torque: 2100 N.m/1200r/min.
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro II

ISM450 Industrial Engine

Rated Power: 451 HP @ 1800 RPM
Max. Torque: 1966 N.m/1200r/min.
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: 1999 EPA/CARB

NT855-C250 Industrial Engine

Rated Power: 251 HP @ 2100 RPM
Max. Torque: 1017 N.m/1500r/min.
Fuel System: PT
Aspiration: N/A
Emission Standard: N/A

NT855-C280 Industrial Engine

Rated Power: 240 HP @ 2000 RPM
Max. Torque: 1050 N.m/1400r/min.
Fuel System: PT
Aspiration: N/A
Emission Standard: N/A

NT855-C280B Industrial Engine

Rated Power: 280 HP @ 2100 RPM
Max. Torque: 1139 N.m/1500r/min.
Fuel System: PT
Aspiration: N/A
Emission Standard: N/A

NTA855-C310 Industrial Engine

Rated Power: 310 HP @ 2100 RPM
Max. Torque: 1261 N.m/1500r/min.
Fuel System: PT
Aspiration: N/A
Emission Standard: N/A

NTA855-C335 Industrial Engine

Rated Power: 335 HP @ 2100 RPM
Max. Torque: 1363 N.m/1500r/min.
Fuel System: PT
Aspiration: N/A
Emission Standard: N/A

NTA855-C360 Industrial Engine

Rated Power: 345 HP @ 2000 RPM
Max. Torque: 1509 N.m/1400r/min.
Fuel System: PT
Aspiration: N/A
Emission Standard: N/A

NTA855-C360B Industrial Engine

Rated Power: 359 HP @ 2100 RPM
Max. Torque: 1464 N.m/1500r/min.
Fuel System: PT
Aspiration: N/A
Emission Standard: N/A

NTA855-C400 Industrial Engine

Rated Power: 345 HP @ 1900 RPM
Max. Torque: 1560 N.m/1300r/min.
Fuel System: PT
Aspiration: N/A
Emission Standard: N/A

NTA855-C400B Industrial Engine

Rated Power: 400 HP @ 2100 RPM
Max. Torque: 1627 N.m/1400r/min.
Fuel System: PT
Aspiration: N/A
Emission Standard: N/A

NTA855-C450 Industrial Engine

Rated Power: 336 kW @ 2100 RPM
Max. Torque: 1831 N.m/1400r/min.
Fuel System: PT
Aspiration: N/A
Emission Standard: N/A

QSNT-C500 Industrial Engine

Rated Power: 500 HP @ 2000 RPM
Max. Torque: 2100 N·m @ 1400 RPM
Fuel System: CELECT
Aspiration: TC & Intercooler
Emission Standard: STG IIIA, NRMM 3

KT19-C450 Industrial Engine

Rated Power: 451 HP @ 2100 RPM
Max. Torque: N/A
Fuel System: PT Fuel Pump
Aspiration: TC
Emission Standard: N/A

KTA19-C/P/L525 Industrial Engine

Rated Power: 526 HP @ 2100 RPM
Max. Torque: N/A
Fuel System: PT Fuel Pump
Aspiration: TC
Emission Standard: N/A

KT19-C/L600 Industrial Engine

Rated Power: 601 HP @ 2100 RPM
Max. Torque: N/A
Fuel System: PT Fuel Pump
Aspiration: TC
Emission Standard: N/A

KTTA19-C700 Industrial Engine

Rated Power: 700 HP @ 2100 RPM
Max. Torque: N/A
Fuel System: PT Fuel Pump
Aspiration: TC & Aftercooled
Emission Standard: N/A

KT38-C925 Industrial Engine

Rated Power: 925 HP @ 2100 RPM
Max. Torque: N/A
Fuel System: PT
Aspiration: TC
Emission Standard: N/A

KTA38-C/P/L1050 Industrial Engine

Rated Power: 1050 HP @ 2100 RPM
Max. Torque: N/A
Fuel System: PT
Aspiration: TC
Emission Standard: N/A

KTA38-C1100 Industrial Engine

Rated Power: 1101 HP @ 1800 RPM
Max. Torque: N/A
Fuel System: PT
Aspiration: TC
Emission Standard: N/A

KTTA50-C2000 Industrial Engine

Rated Power: 1999 HP @ 1900 RPM
Max. Torque: N/A
Fuel System: PT
Aspiration: Turbocharger & Aftercooler
Emission Standard: U.S. EPA Tier 1

KTA50-C2250 Industrial Engine

Rated Power: 2252 HP @ 1900 RPM
Max. Torque: N/A
Fuel System: N/A
Aspiration: TC & LTA
Emission Standard: N/A

KTA50-C1800 Industrial Engine

Rated Power: 1801 HP @ 1900 RPM
Max. Torque: N/A
Fuel System: N/A
Aspiration: Two Stage Turbocharged & Aftercooled
Emission Standard: N/A

KTA50-C1600-II Industrial Engine

Rated Power: 1601 HP @ 1900 RPM
Max. Torque: N/A
Fuel System: N/A
Aspiration: TC & Aftercooled
Emission Standard: N/A

KTA50-C1600 Industrial Engine

Rated Power: 1601 HP @ 2100 RPM
Max. Torque: N/A
Fuel System: N/A
Aspiration: TC & Aftercooled
Emission Standard: N/A

KTA50-C2000 Industrial Engine

Rated Power: 2682 HP @ 1900 RPM
Max. Torque: N/A
Fuel System: N/A
Aspiration: Two Stage TC & Aftercooled
Emission Standard: N/A

QSK19-G3 Industrial Engine

Rated Power: 815 HP @ 1800 RPM
Max. Torque: N/A
Fuel System: CMI MCRS
Aspiration: TC & Intercooler
Emission Standard: N/A

QSK19-C506 Industrial Engine

Power: 506 HP @ 1800 RPM
Fuel System: MCRS
Compression Ratio: 15.8 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

QSK19-C525 Industrial Engine

Power: 525 HP @ 2000 RPM
Fuel System: N/A
Compression Ratio: 15.8 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

QSK19-C560A Industrial Engine

Power: 560 HP @ 2000 RPM
Fuel System: MCRS
Compression Ratio: 15.8 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

QSK19-C560B Industrial Engine

Power: 560 HP @ 2000 RPM
Fuel System: N/A
Compression Ratio: 15.8 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: U.S. EPA Tier 3

QSK19-C600 Industrial Engine

Power: 600 HP @ 2000 RPM
Fuel System: TC & Air-Air Intercooler
Compression Ratio: 15.8 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

QSK19-C675 Industrial Engine

Power: 675 HP @ 1800 RPM
Fuel System: N/A
Compression Ratio: 15.8 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

QSK19-C700A Industrial Engine

Power: 700 HP @ 2000 RPM
Fuel System: MCRS
Compression Ratio: 15.8 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

QSK19-C700B Industrial Engine

Power: 700 HP @ 1800 RPM
Fuel System: MCRS
Compression Ratio: 15.8 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

QSK19-C760 Industrial Engine

Rated Power: 760 HP @ 2100 RPM
Max. Torque: 3084 N·m @ 1500 RPM
Fuel System: CMI MCRS
Aspiration: TC & Intercooler
Emission Standard: U.S. EPA Tier 2

QSK19-C800 Industrial Engine

Rated Power: 801 HP @ 2100 RPM
Max. Torque: 3086 N·m @ 1500 RPM
Fuel System: CMI MCRS
Aspiration: TC & Intercooler
Emission Standard: U.S. EPA Tier 2

QSK23-C760 Industrial Engine ( Imported )

Rated Power: 760 HP @ 1800 RPM
Max. Torque: N/A
Fuel System: HPI Celect
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: N/A

QSK23-C860 Industrial Engine ( Imported )

Rated Power: 860 HP @ 2100 RPM
Max. Torque: 3086 N·m @ 1500 RPM
Fuel System: CMI MCRS
Aspiration: TC & Intercooler
Emission Standard: U.S. EPA Tier 2

QSK38-C1085 Industrial Engine

Power: 1085 HP @ 1800 RPM
Fuel System: MCRS
Compression Ratio: 15 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: U.S. EPA Tier 2

QSK38-C1086 Industrial Engine

Power: 1086 HP @ 1800 RPM
Fuel System: Cummins MCRS
Compression Ratio: 15 : 1
Aspiration: Turbocharged Aftercooled
Emission Standard: U.S. EPA Tier 2

QSK38-C1200 Industrial Engine

Power: 1200 HP @ 1800 RPM
Fuel System: MCRS
Compression Ratio: 15 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

QSK38-C1260 Industrial Engine

Power: 1260 HP @ 1800 RPM
Fuel System: MCRS
Compression Ratio: 15 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: U.S. EPA Tier 2

QSK38-C1350 Industrial Engine

Power: 1350 HP @ 1800 RPM
Fuel System: MCRS
Compression Ratio: 15 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: U.S. EPA Tier 2

QSK38-C1530 Industrial Engine

Power: 1530 HP @ 1800 RPM
Fuel System: MCRS
Compression Ratio: 15 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

QSK38-C1600 Industrial Engine

Power: 1600 HP @ 1900 RPM
Fuel System: MCRS
Compression Ratio: 15 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: U.S. EPA Tier 2

QSK50-C1400 Industrial Engine

Power: 1400 HP @ 1800 RPM
Fuel System: CMI MCRS
Compression Ratio: 15.0 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: U.S. EPA Tier 2

QSK50-P1500 Pump Engine

Power: 1118 kW @ 1800 RPM
Fuel System: CMI MCRS
Compression Ratio: 15.0 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: U.S. EPA Tier 2

QSK50-P1600 Pump Engine

Power: 1193 kW @ 1800 RPM
Fuel System: CMI MCRS
Compression Ratio: 15.0 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: U.S. EPA Tier 2

QSK50-C1675 Industrial Engine

Power: 1675 HP @ 1800 RPM
Fuel System: Cummins MCRS
Compression Ratio: 15 : 1
Aspiration: 2-Stg Turbocharged and Aftercooled
Emission Standard: U.S. EPA Tier 2

QSK50-P2500 Pump Engine

Power: 1864 kW @ 1900 RPM
Fuel System: CMI MCRS
Compression Ratio: 15.0 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: U.S. EPA Tier 2

QSK60-C2237 Industrial Engine ( Imported )

Rated Power: 2237 HP @ 1800 RPM
Max. Torque: 6527 N·m @ 1800 RPM
Fuel System: CMI MCRS
Aspiration: TC & Aftercooled
Emission Standard: Non-certified

QSK60-C2300 Industrial Engine ( Imported )

Rated Power: 2300 HP @ 1900 RPM
Max. Torque: 8620 N·m @ 1900 RPM
Fuel System: CMI MCRS
Aspiration: TC & Aftercooled
Emission Standard: U.S. EPA Tier 1

QSK60-C3000 Industrial Engine ( Imported )

Rated Power: 3004 HP @ 1900 RPM
Max. Torque: 11257 N·m @ 1900 RPM
Fuel System: CMI MCRS
Aspiration: TC & Aftercooled
Emission Standard: U.S. EPA Tier 2

QSK78-C3500 Industrial Engine ( Imported )

Rated Power: 3500 HP @ 1900 RPM
Max. Torque: N/A
Fuel System: HPI Electronic
Aspiration: 2-Stg Turbo. Aftercooled and Intercooled
Emission Standard: U.S. EPA Tier 2

QSK95-C4400 Industrial Engine ( Imported )

Rated Power: 4400 HP @ 1800 RPM
Max. Torque: N/A
Fuel System: Cummins MCRS
Aspiration: Turbocharged and Aftercooled
Emission Standard: N/A

QSX15-C375 Industrial Engine ( Imported )

Rated Power: 375 HP @ 1800 RPM
Max. Torque: N/A
Fuel System: HPI Electronic
Aspiration: Turbocharged CAC
Emission Standard: CARB Tier 3, EU Stage IIIA, US EPA Tier 3

QSX15-C525 Industrial Engine ( Imported )

Rated Power: 525 HP @ 2100 RPM
Max. Torque: N/A
Fuel System: HPI Electronic
Aspiration: Turbocharged CAC
Emission Standard: U.S. EPA Tier 2, CARB Tier 2, EU Stage II

QSX15-C530 Industrial Engine ( Imported )

Rated Power: 530 HP @ 1800 RPM
Max. Torque: N/A
Fuel System: HPI Electronic
Aspiration: Turbocharged CAC
Emission Standard: U.S. EPA Tier 2, CARB Tier 2, EU Stage II

X15-C535 Industrial Engine ( Imported )

Rated Power: 535 HP @ 2100 RPM
Max. Torque: N/A
Fuel System: XPI
Aspiration: Turbocharged CAC
Emission Standard: China MEP CS III, EU Stage IIIA, MSHA

QST30-C1050 Industrial Engine ( Imported )

Rated Power: 1050 HP @ 1900 RPM
Max. Torque: N/A
Fuel System: Bosch Electronic
Aspiration: Turbocharged and Aftercooled
Emission Standard: N/A

QST30-C1200 Industrial Engine ( Imported )

Rated Power: 1200 HP @ 1800 RPM
Max. Torque: N/A
Fuel System: Bosch Electronic
Aspiration: Turbocharged and Aftercooled
Emission Standard: N/A

Pump Drive Engine

NTA855 Pump		224 – 373 kW
KTA19 Pump		336 – 664 kW
KTA38 Pump			522 – 1112 kW
KTA50 Pump							1227 – 1657 kW
QSK38 Pump					855 kW
Engine Model Power/kW	0	200	400	600	800	1000	1200	1400
	Emission Srandard:Euro ⅠEuro ⅡEuro ⅢEuro ⅣEuro ⅤEuro ⅥEuro Ⅶ

CCEC Pump Engine Catalogue

Series

Model

NTA855 TC & Water-Air Intercooler	NT855-P300 \| 224 KW @1500 RPM	NT855-P300B \| 224 KW @1500 RPM	NTA855-P360C \| 268 KW @2100 RPM	NTA855-P360B \| 269 KW @1800 RPM
	NT855-P360 \| 269 KW @1800 RPM	NTA855-P360 \| 269 KW @2100 RPM	NT855-P400 \| 298 KW @1800 RPM	NTA855-P400A \| 298 KW @1500 RPM
	NTA855-P400C \| 298 KW @2100 RPM	NTA855-P400B \| 299 KW @1500 RPM	NTA855-P450 \| 336 KW @1800 RPM	NTA855-P450B \| 336 KW @2100 RPM
	NTA855-P470 \| 351 KW @1500 RPM	NTA855-P470B \| 351 KW @1500 RPM	NTA855-P500 \| 373 KW @1800 RPM	NTA855-P500B \| 373 KW @1800 RPM
KTA19 TC & Water-Air Intercooler	KTA19-P450 \| 336 KW @2100 RPM	KTA19-P495 \| 369 KW @1500 RPM	KTA19-P500A \| 373 KW @1500 RPM	KTA19-P500B \| 373 KW @1800 RPM
	KTA19-P525A \| 392 KW @1800 RPM	KTA19-P525B \| 392 KW @2100 RPM	KTA19-P600A \| 448 KW @1500 RPM	KTA19-P600B \| 448 KW @1800 RPM
	KTA19-C600 \| 448 KW @2100 RPM	KTA19-P755 \| 504 KW @1800 RPM	KTA19-P680 \| 507 KW @1500 RPM	KTA19-P700 \| 522 KW @1800 RPM
	KTAA19-C700 \| 522 kw @2100 RPM	KTAA19-P818B \| 552 KW @1500 RPM	KTA19-P750 \| 559 KW @1800 RPM	KTAA19-P673 \| 570 KW @1500 RPM
	KTAA19-P818 \| 610 KW @1500 RPM	KTAA19-P890 \| 664 KW @1800 RPM
KTA38 Turbocharged	KT38-P700 \| 522 KW @1800 RPM	KT38-P780 \| 582 KW @1800 RPM	KT38-P830 \| 619 KW @1500 RPM	KTA38-P900 \| 671 KW @1800 RPM
	KT38-P980 \| 731 KW @1500 RPM	KTA38-P980B \| 731 KW @1500 RPM	KT38-P1000 \| 746 KW @1800 RPM	KTA38-P1080 \| 813 KW @1800 RPM
	KTA38-P1100 \| 821 KW @1800 RPM	KTA38-P1200 \| 821 KW @1800 RPM	KTA38-P1200A \| 895 KW @1500 RPM	KTA38-P1200B \| 895 KW @1800 RPM
	KTA38-P1250 \| 933KW @1800 RPM	KTA38-P1300 \| 970 KW @1500 RPM	KTA38-P1400 \| 1045 KW @1800 RPM	KTA38-P1400 \| 1045 KW @1800 RPM
	KTA38-P1490 \| 1112 KW @1800 RPM
KTA50 TC & Water-Air Intercooler	KTA50-P1645 \| 1227 KW @1800 RPM	KTA50-P1915 \| 1429 KW @1800 RPM	KTTA50-2000 \| 1491 KW @1900 RPM	KTA50-P2220 \| 1657 KW @1800 RPM
QSK38 Turbocharged, intercooled	QSK-CQ38E \| 855 kW @1800 RPM
——END——

NT855-P300 Pump Engine

Power: 224 kW (300 HP) @ 1500 RPM
Fuel System: CMI PT
Compression Ratio: 14.0 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

NT855-P300B Pump Engine

Rated Power: 224 kW @ 1500 RPM
Max. Torque: 224 kW @ 1500 RPM
Fuel System: PT
Aspiration: N/A
Emission Standard: N/A

NT855-P360 Pump Engine

Power: 269 kW (360 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 14.0 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

NT855-P400 Pump Engine

Power: 298 kW (400 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 14.0 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

NTA855-P360 Pump Engine

Power: 269 kW (360 HP) @ 2100 RPM
Fuel System: CMI PT
Compression Ratio: 14.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

NTA855-P360B Pump Engine

Power: 269 kW @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 14.0 : 1
Aspiration: N/A
Emission Standard: N/A

NTA855-P360C Pump Engine

Rated Power: 268 kW @ 2100 RPM
Max. Torque: 1464 N.m/1500r/min.
Fuel System: PT
Aspiration: N/A
Emission Standard: N/A

NTA855-P400A Pump Engine

Power: 298 kW (400 HP) @ 1500 RPM
Fuel System: CMI PT
Compression Ratio: 14 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

NTA855-P400B Pump Engine

Power: 299 kW (400 HP) @ 1500 RPM
Fuel System: CMI PT
Compression Ratio: 14 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

NTA855-P400C Pump Engine

Power: 298 kW (400 HP) @ 2100 RPM
Fuel System: CMI PT
Compression Ratio: 14 .5: 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

NTA855-P450 Pump Engine

Power: 336 kW (450 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 14 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

NTA855-P450B Pump Engine

Rated Power: 336 kW @ 2100 RPM
Max. Torque: 1831 N.m/1400r/min.
Fuel System: PT
Aspiration: N/A
Emission Standard: N/A

NTA855-P470 Pump Engine

Power: 351 kW (400 HP) @ 1500 RPM
Fuel System: CMI PT
Compression Ratio: 14 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

NTA855-P470B Pump Engine

Power: 351 kW @ 1500 RPM
Fuel System: CMI PT
Compression Ratio: 14.0 : 1
Aspiration: N/A
Emission Standard: N/A

NTA855-P500 Pump Engine

Power: 373 kW (500 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 14 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

NTA855-P500B Pump Engine

Power: 373 kW @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 14.0 : 1
Aspiration: N/A
Emission Standard: N/A

KTA19-P450 Pump Engine

Rated Power: 336 kW (450 HP) @ 2100 RPM
Fuel System: PT-STC
Compression Ratio: 15.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-P495 Pump Engine

Rated Power: 369 kW (495 HP) @ 1500 RPM
Fuel System: CMI PT
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-P500A Pump Engine

Rated Power: 373 kW (500 HP) @ 1500 RPM
Fuel System: PT-STC
Compression Ratio: 14.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-P500B Pump Engine

Rated Power: 373 kW (500 HP) @ 1800 RPM
Fuel System: PT-STC
Compression Ratio: 14.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-P525A Pump Engine

Rated Power: 392 kW (525 HP) @ 1800 RPM
Fuel System: PT-STC
Compression Ratio: 14.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-P525B Pump Engine

Rated Power: 392 kW (525 HP) @ 2100 RPM
Fuel System: PT-STC
Compression Ratio: 15.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-P600A Pump Engine

Rated Power: 448 kW (600 HP) @ 1500 RPM
Fuel System: CMI PT
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-P600B Pump Engine

Rated Power: 448 kW (600 HP) @ 1800 RPM
Fuel System: PT-STC
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-C600 Pump Engine

Rated Power: 448 kW (600 HP) @ 2100 RPM
Fuel System: PT-STC
Compression Ratio: 15.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-P680 Pump Engine

Rated Power: 507 kW (680 HP) @ 1500 RPM
Fuel System: PT-STC
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-P700 Pump Engine

Rated Power: 522 kW (700 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-P750 Pump Engine

Rated Power: 559 kW (750 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-P755 Pump Engine

Rated Power: 504 kW (675 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTAA19-P673 Pump Engine

Rated Power: 570 kW (764 HP) @ 1500 RPM
Fuel System: CMI PT
Compression Ratio: 13.9 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

KTAA19-C700 Pump Enegin

Rated Power: 522 kW (700 HP) @ 2100 RPM
Fuel System: N/A
Compression Ratio: N/A
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

KTAA19-P818 Pump Engine

Rated Power: 610 kW (818 HP) @ 1500 RPM
Fuel System: PT-STC
Compression Ratio: 13.9 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

KTAA19-P818B Pump Engine

Rated Power: 552 kW (740 HP) @ 1500 RPM
Fuel System: PT-STC
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTAA19-P890 Pump Engine

Rated Power: 664 kW (890 HP) @ 1800 RPM
Fuel System: CMS PT
Compression Ratio: 13.9 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

KTA38-P1250 Pump Engine

Rated Power: 933 kW (1250 HP) @ 1800 RPM
Fuel System: PT-STC
Compression Ratio: 15.0 : 1
Aspiration: Turbocharged & Water-Air Intercooler
Emission Standard: N/A

KT38-P700 Pump Engine

Power: 522 kW (700 HP) @ 1800 RPM
Fuel System: PT
Compression Ratio: 5.5:1
Aspiration: Turbocharged
Emission Standard: N/A

KT38-P780 Pump Engine

Power: 582 kW (780 HP) @ 1800 RPM
Fuel System: PT
Compression Ratio: 15.5:1
Aspiration: Turbocharged
Emission Standard: N/A

KT38-P830 Pump Engine

Rated Power: 619 kW (830 HP) @ 1500 RPM
Fuel System: CMI PT
Compression Ratio: 15.5 : 1
Aspiration: Turbocharged
Emission Standard: N/A

KT38-P1000 Pump Engine

Rated Power: 746 kW (1000 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 15.5 : 1
Aspiration: Turbocharged
Emission Standard: N/A

KTA38-P900 Pump Engine

Rated Power: 671 kW (900 HP) @ 1800 RPM
Fuel System: PT-STC
Compression Ratio: 14.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA38-P980 Pump Engine

Rated Power: 731 kW (980 HP) @ 1500 RPM
Fuel System: CMI PT
Compression Ratio: 14.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA38-P980B Pump Engine

Power: 731 kW (980 HP) @ 1500 RPM
Fuel System: CMI PT
Compression Ratio: 14.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA38-P1080 Pump Engine

Rated Power: 805 kW (1080 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 14.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA38-P1100 Pump Engine

Rated Power: 821 kW (1100 HP) @ 1800 RPM
Fuel System: PT-STC
Compression Ratio: 14.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA38-P1200A Pump Engine

Rated Power: 895 kW (1200 HP) @ 1500 RPM
Fuel System: CMI PT
Compression Ratio: 14.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA38-P1200B Pump Engine

Rated Power: 895 kW (1200 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 14.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA38-P1200C Pump Engine

Power: 895 kW (1200 HP) @ 1800 RPM
Fuel System: PT
Compression Ratio: 13.9 : 1
Aspiration: Turbocharged
Emission Standard: N/A

KTA38-P1300 Pump Engine

Rated Power: 970 kW (1300 HP) @ 1500 RPM
Fuel System: CMI PT
Compression Ratio: 14.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA38-P1400 Pump Engine

Rated Power: 1045 kW (1400 HP) @ 1800 RPM
Fuel System: PT-STC
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA38-P1400B Pump Engine

Power: 1045 kW (1400 HP) @ 1800 RPM
Fuel System: PT
Compression Ratio: 13.9 : 1
Aspiration: Turbocharged
Emission Standard: N/A

KTA38-P1490 Pump Engine

Rated Power: 1112 kW (1490 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA50-P1645 Pump Engine

Rated Power: 1227 kW (1645 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA50-P1915 Pump Engine

Rated Power: 1429 kW (1915 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 14.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA50-P2220 Pump Engine

Rated Power: 1657 kW (2220 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTTA50-2000 Pump Engine

Rated Power: 1491 kW (2000 HP) @ 1900 RPM
Fuel System: CMI PT
Compression Ratio: 13.8 : 1
Aspiration: Dual TC and Low Temp. Aftercooled
Emission Standard: N/A

QSK38-P1600 Pump Engine

Power: 1193 kW @ 1800 RPM
Fuel System: MCRS
Compression Ratio: 15 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: U.S. EPA Tier 2

QSK38-P1530 Pump Engine

Power: 1141 kW @ 1800 RPM
Fuel System: MCRS
Compression Ratio: 15 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

QSK38-P1350 Pump Engine

Power: 1007 kW @ 1800 RPM
Fuel System: MCRS
Compression Ratio: 15 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: U.S. EPA Tier 2

QSK38-P1260 Pump Engine

Power: 940 kW @ 1800 RPM
Fuel System: MCRS
Compression Ratio: 15 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: U.S. EPA Tier 2

QSK38-P1200 Pump Engine

Power: 895 kW @ 1800 RPM
Fuel System: MCRS
Compression Ratio: 15 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

QSK38-P1086 Pump Engine

Power: 810 kW @ 1800 RPM
Fuel System: Cummins MCRS
Compression Ratio: 15 : 1
Aspiration: Turbocharged Aftercooled
Emission Standard: U.S. EPA Tier 2

QSK38-P1085 Pump Engine

Power: 809 kW @ 1800 RPM
Fuel System: MCRS
Compression Ratio: 15 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: U.S. EPA Tier 2

G-Drive Engine

MTA11 G-Drive	224 – 282 kW
NTA855 G-Drive	205 – 407 kW
KTA19 G-Drive	336 – 600 kW
KTA38 G-Drive		560 – 1220 kW
KTA50 G-Drive			1097 – 1650 kW
QSNT G-Drive	358 – 545 kW
QSK19 G-Drive		402 – 667 kW
QSK38 G-Drive			876 – 1231 kW
QSK50 G-Drive				1421 kW
Engine Model Power/kW	0	400	800	1200	1600	2000	2400	2800
	Emission Srandard:Euro ⅠEuro ⅡEuro ⅢEuro ⅣEuro ⅤEuro ⅥEuro Ⅶ

CCEC G-Drive Engine Catalogue

Series

Model

MTA11 G-Drive Engine 1324 mm * 835 mm * 1183 mm	MTA11-G2-A \| 224 kW @ 1500 RPM	MTA11-G2-B \| 257 kW @ 1500 RPM	MTA11-G2A \| 234 kW @ 1500 RPM	MTAA11-G3 \| 282 kW @ 1500 RPM
NTA855 G-Drive Engine 1534 mm * 781 mm * 1355 mm	NT855-G \| 205 kW @ 1500 RPM	NT855-GA \| 231 kW @ 1500 RPM	NTA855-G1-A \| 240 kW @ 1500 RPM	NTA855-G1-B \| 287 kW @ 1500 RPM
	NTA855-G1A \| 264 kW @ 1500 RPM	NTA855-G2A \| 310 kW @ 1500 RPM	NTA855-G1B \| 284 kW @ 1500 RPM	NTA855-G1B \| 284 kW @ 1500 RPM
	NTA855-G3 \| 358 kW @ 1800 RPM	NTA855-G4 \| 317 kW @ 1500 RPM	NTAA855-G7 \| 343 kW @ 1500 RPM	NTAA855-G7A \| 300 HP @ 2200 RPM
KTA19 G-Drive Engine 1573 mm * 796 mm * 1343 mm	KTA19-G2-A \| 336 kW @ 1500 RPM	KTA19-G2-B \| 392 kW @ 1800 RPM	KTA19-G3-A \| 403 kW @ 1500 RPM	KTA19-G3-B \| 463 kW @ 1800 RPM
	KTA19-G3A-A \| 448 kW @1500 RPM	KTA19-G3A-B \| 507 kW @ 1800 RPM	KTA19-G4-A \| 448 kW @ 1500 RPM	KTA19-G4-B \| 507 kW @ 1800 RPM
	KTA19-G8 \| 575 kW @ 1500 RPM	KTA19-G8A \| 550 kW @ 1500 RPM	KTA19-G8E \| 500 kW @1500 RPM	KTA19-G9A \| 600 kW @ 1500 RPM
	KTAA19-G5-A \| 470 kW @ 1500 RPM	KTAA19-G5-B \| 533 kW @ 1800 RPM	KTAA19-G6-A \| 520 kW @1500 RPM	KTAA19-G6-B \| 831 kW @ 1800 RPM
	KTAA19-G6A-A \| 610 kW @ 1500 RPM	KTAA19-G6A-B \| 664 kW @ 1800 RPM	KTAA19-G7-A \| 610 kW @ 1500 RPM	KTAA19-G7-B \| 664 kW @ 1800 RPM
KTA38 G-Drive Engine 2341 mm * 1360 mm * 1653 mm	KT38-GA \| 647 kW @ 1500 RPM	KT38-G-A \| 560 kW @ 1500 RPM	KT38-G-B \| 679 kW @ 1800 RPM	KTA38-G1-A \| 634 kW @ 1500 RPM
	KTA38-G1-B \| 769 kW @ 1800 RPM	KTA38-G1B-A \| 634 kW @ 1500 RPM	KTA38-G1B-B \| 769 kW @ 1800 RPM	KTA38-G1E \| 605 kW @ 1500 RPM
	KTA38-G2-A \| 664 kW @ 1500 RPM	KTA38-G2-B \|804 kW @ 1500 RPM	KTA38-G2A-A \| 813 kW @ 1500 RPM	KTA38-G2A-B \| 915 kW @ 1800 RPM
	KTA38-G2B-A \| 711 kW @ 1500 RPM	KTA38-G2B-B \| 830 kW @ 1500 RPM	KTA38-G2E \|715 kW @ 1500 RPM	KTA38-G4\| 1007 kW @ 1500 RPM
	KTA38-G5 \| 880 kW @ 1500 RPM	KTA38-G5E \| 825 kW @ 1500 RPM	KTA38-G7E \| 935 kW @ 1500 RPM	KTA38-G9-A \| 1195 kW @ 1500 RPM
	KTA38-G9-B \| 1220 kW @ 1500 RPM	KTAA38-G9A \| 1195 kW @ 1500 RPM	KTA38-G9E \| 990 kW @ 1500 RPM
KTA50 G-Drive Engine 2794 mm * 1507 mm * 1846 mm	KTA50-G3-A \|1097 kW @ 1500 RPM	KTA50-G3-B \| 1220 kW @ 1500 RPM	KTA50-G3E \| 1210 kW @ 1500 RPM	KTA50-G7E \| 1210 kW @ 1500 RPM
	KTA50-G8 \| 1200 kW @ 1500 RPM	KTA50-GS8 \| 1725 kW @ 1500 RPM	KTA50-G9 \| 1384 kW @ 1800 RPM	KTA50-G12-A \| 1095 kW @ 1500 RPM
	KTA50-G12-B \| 1178 kW @ 1500 RPM	KTA50-G12A-A \| 1200 kW @ 1500 RPM	KTA50-G12A-B \| 1347 kW @ 1500 RPM	KTA50-G15 \| 1491 kW @ 1500 RPM
	KTA50-G16 \| 1200 kW @ 1500 RPM
QSNT G-Drive Engine 1534 mm * 781 mm * 1355 mm	QSNT-G3-A \| 358 kW @ 1500 RPM	QSNT-G3-B \| 358 kW @ 1500 RPM	QSNT-G4 \| 407 kW @ 1500 RPM	QSNT-G4X \| 407 kW @ 1500 RPM
QSZ19 G-Drive Engine 1695 mm * 985 mm * 1723 mm	QSK19-G3-A \|574 kW @ 1500 RPM	QSK19-G3-B \| 608 kW @ 1800 RPM	QSK19-G4-A \| 574 kW @ 1500 RPM	QSK19-G4-B\| 559 kW @ 1800 RPM
	QSK19-G5 \| 669 kW @ 1800 RPM	QSK19-G11 \| 500 kW @ 1500 RPM	QSK19-G11X \| 667 kW @ 1500 RPM	QSK19-G12 \| 670 kW @ 1500 RPM
	QSK19-G13 \| 406 kW @ 1500 RPM	QSK19-G14\| 362 kW @ 1500 RPM	QSKTAA19-G3-NR2-A \| 336 kW @ 1500 RPM	QSKTAA19-G3-NR2-B \| 670 kW @ 1500 RPM
QSK38 G-Drive Engine 2220 mm * 1507 mm * 1846 mm	QSK38-G1 \| 1063 kW @ 1500 RPM	QSK38-G4 \| 1230 kW @ 1800 RPM	QSK38-G5-A \|1107 kW @ 1500 RPM	QSK38-G5-B \| 1063 kW @ 1500 RPM
QSK50 G-Drive Engine 2794 mm * 1507 mm * 1846 mm	QSK50-G7 \| 1063 kW @ 1500 RPM
——END——

MTA11-G2-A G-Drive Engine

Power: 224 kW (1500 RPM) @ 50 Hz
Fuel System: PT
Aspiration: TC & Aftercooled Intercooler
Emission Standard: N/A

MTA11-G2A G-Drive Engine

Power: 234 kW / 1500 RPM @ 50 Hz
Fuel System: PT
Aspiration: TC & Aftercooled Intercooler
Emission Standard: N/A

MTA11-G2-B G-Drive Engine

Power: 257 kW / 1800 RPM @ 60 Hz
Fuel System: PT
Aspiration: TC & Aftercooled Intercooler
Emission Standard: N/A

MTAA11-G3 G-Drive Engine

Power: 282 kW / 1500 RPM @ 50 Hz
Fuel System: PT
Aspiration: TC & Charged Air Cooled Intercooler
Emission Standard: N/A

NT855-G G-Drive Engine

Power: 275 HP (205 kW) at 1500 RPM
Fuel System: N/A
Aspiration: TC
Emission Standard: N/A

NT855-GA G-Drive Engine

Power: 310 HP (231 kW) at 1500 RPM
Fuel System: N/A
Aspiration: TC
Emission Standard: N/A

NTA855-G1-A G-Drive Engine

Power: 322 HP (240 kW) at 1500 RPM
Fuel System: N/A
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

NTA855-G1-B G-Drive Engine

Power: 386 HP (287 kW) at 1800 RPM
Fuel System: N/A
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

NTA855-G1A G-Drive Engine

Power: 355 HP (264 kW) at 1500 RPM
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

NTA855-G1B G-Drive Engine

Power: 380 HP (284 kW) at 1500 RPM
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

NTA855-G2-A G-Drive Engine

Power: 380 HP (284 kW) at 1500 RPM
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

NTA855-G2-B G-Drive Engine

Power: 420 HP (313 kW) at 1800 RPM
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

NTA855-G2A G-Drive Engine

Power: 415 HP (310 kW) at 1500 RPM
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

NTA855-G3 G-Drive Engine

Power: 480 HP (358 kW) at 1800 RPM
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

NTA855-G4 G-Drive Engine

Power: 425 HP (317 kW) at 1500 RPM
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

NTAA855-G7 G-Drive Engine

Power: 460 HP (343 kW) at 1500 RPM
Fuel System: PT
Aspiration: 460 HP(343 kW) at 1500RPM
Emission Standard: N/A

NTAA855-G7A G-Drive Engine

Power: N / A
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA19-G2-A G-Drive Engine

Power: 336 kWm (450 BHP)@ 1500 RPM
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-G2-B G-Drive Engine

Power: 392 kWm (525 BHP) @ 1800 RPM
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-G3-A G-Drive Engine

Power: 403 kWm (540 BHP)@1500 RPM
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-G3-B G-Drive Engine

Power: 463 kWm (620 BHP) @ 1800 RPM
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-G3A-A G-Drive Engine

Power: 680 BHP (507 kW) @ 1800 RPM
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-G3A-B G-Drive Engine

Power: 755 BHP (563 kW) @ 1800 RPM
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-G4-A G-Drive Engine

Power: 504 kWm (675 BHP) @ 1500 RPM
Fuel System: N/A
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-G4-B G-Drive Engine

Power: 563 kWm (755 BHP) @1800 RPM
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-G8 G-Drive Engine

Power: 575 kW (771 BHP) @ 1500 RPM
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-G8A G-Drive Engine

Power: 550 kW (737 BHP) @ 1500 RPM
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-G8E G-Drive Engine

Power: 495 kW (663 BHP) @ 1500 RPM
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19-G9A G-Drive Engine

Power: 600 kW (805 BHP) @1500 RPM
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTAA19-G5-A G-Drive Engine

Power: 630 BHP (470 kW) @ 1500 RPM
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTAA19-G5-B G-Drive Engine

Power: 714 BHP (533 kW) @ 1800 RPM
Fuel System: PT
Aspiration: TC & Air – Air Intercooler
Emission Standard: N/A

KTAA19-G6-A G-Drive Engine

Power: 570 kWm (764 BHP) @ 1500 RPM
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTAA19-G6-B G-Drive Engine

Power: 620 kWm (831 BHP) @ 1800 RPM
Fuel System: PT
Aspiration: TC & Air – Air Intercooler
Emission Standard: N/A

KTAA19-G6A-A G-Drive Engine

Power: 818 BHP (610 kW) @ 1500 RPM
Fuel System: PT
Aspiration: TC & Air – Air Intercooler
Emission Standard: N/A

KTAA19-G6A-B G-Drive Engine

Power: 890 BHP (664 kW) @ 1800 RPM
Fuel System: PT
Aspiration: TC & Air – Air Intercooler
Emission Standard: N/A

KTAA19-G7-A G-Drive Engine

Power: 610 kWm (818 BHP) @1500 RPM
Fuel System: PT
Aspiration: TC & Air – Air Intercooler
Emission Standard: N/A

KTAA19-G7-B G-Drive Engine

Power: 664 kWm (890 BHP) @ 1800 RPM
Fuel System: PT
Aspiration: TC & Air – Air Intercooler
Emission Standard: N/A

KT38-GA G-Drive Engine

Power: 867 HP (647 kW) @ 1500 RPM
Fuel System: CMA PT
Aspiration: Turbocharged
Emission Standard: N/A

KT38-G-A G-Drive Engine

Power: 825 BHP (615 kW) @ 1500 RPM
Fuel System: N / A
Aspiration: Turbocharged
Emission Standard: N/A

KT38-G-B G-Drive Engine

Power: 1000 BHP (747 kW) @ 1800 RPM
Fuel System: N/A
Aspiration: TC & Air – Air Intercooler
Emission Standard: N/A

KTA38-G1-A G-Drive Engine

Power: 850 BHP (634 kW) @ 1500 RPM
Fuel System: CMA PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-G1-B G-Drive Engine

Power: 1030 BHP (769 kW) @ 1800 RPM
Fuel System: CMA PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-G1B-A G-Drive Engine

Power: 850 BHP (634 kW) @ 1500 RPM
Fuel System: CMA PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-G1B-B G-Drive Engine

Power: 1135 BHP (847 kW) @ 1800 RPM
Fuel System: CMA PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-G1E G-Drive Engine

Power: 811 BHP (605 kW) @ 1500 RPM
Fuel System: CMA PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-G2-A G-Drive Engine

Power: 890 BHP (664 kW) @ 1500 RPM
Fuel System: N/A
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-G2-B G-Drive Engine

Power: 1085 BHP (809 kW) @ 1800 RPM
Fuel System: CMA PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-G2A-A G-Drive Engine

Power: 1200 BHP (895 kW) @ 1500 RPM
Fuel System: PT-STC
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-G2A-B G-Drive Engine

Power: 1350 BHP (1007 kW)@1800 RPM
Fuel System: PT-STC
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-G2B-A G-Drive Engine

Power: 953 BHP (711 kW) @ 1500 RPM
Fuel System: CMA PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-G2B-B G-Drive Engine

Power: 1233 BHP (920 kW) @ 1800 RPM
Fuel System: CMA PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-G2E G-Drive Engine

Power: 959 BHP (715 kW) @ 1500 RPM
Fuel System: CMA PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-G4 G-Drive Engine

Power: 1350 BHP (1007 kW) @ 1800 RPM
Fuel System: CMA PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-G5 G-Drive Engine

Power: 1180 BHP (881 kW) @ 1500 RPM
Fuel System: CMA PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-G5E G-Drive Engine

Power: 1106 BHP (825 kW) @ 1500 RPM
Fuel System: CMA PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-G7E G-Drive Engine

Power: 1254 BHP (935 kW) @ 1500 RPM
Fuel System: CMA PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-G9-A G-Drive Engine

Power: 1635 BH (1220 kW) @ 1800 RPM
Fuel System: CMA PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-G9-B G-Drive Engine

Power: 1635 BH (1220 kW) @ 1800 RPM
Fuel System: CMA PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTAA38-G9A G-Drive Engine

Power: 1602 BHP (1195 kWm)@1500 RPM
Fuel System: PT(G)-EFC
Aspiration: TC & Air – Air Intercooler
Emission Standard: N/A

KTA38-G9E G-Drive Engine

Power: 1328 BHP (990 kW) @ 1500 RPM
Fuel System: CMS PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA50-G3-A G-Drive Engine

Power: 1470BHP(1097kWm)@1500RPM
Fuel System: N/A
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA50-G3-B G-Drive Engine

Power: 1635 BHP (1220 kWm) @ 1800 RPM
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA50-G3E G-Drive Engine

Power: 1474 BHP (1100 kW) @ 1500 RPM
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA50-G7E G-Drive Engine

Power: 1621 BHP (1210 kW) @ 1500 RPM
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA50-G8 G-Drive Engine

Power: N/A
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA50-GS8 G-Drive Engine

Power: N/A
Fuel System: PT
Aspiration: TC & Low Temp. Aftercooled
Emission Standard: N/A

KTA50-G9 G-Drive Engine

Power: 1855 BHP (1384 kW) @1800 RPM
Fuel System: CMA PT
Aspiration: TC & Low Temp. Aftercooled
Emission Standard: N/A

KTA50-G12-A G-Drive Engine

Power: 1468 BHP (1095 kWm) @ 1500 RPM
Fuel System: CMA PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA50-G12-B G-Drive Engine

Power: 1684 BHP (1256 kWm) @ 1800 RPM
Fuel System: CMA PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA50-G12A-B G-Drive Engine

Power: 1805 BHP (1347 kWm) @ 1800 RPM
Fuel System: CMA PT
Aspiration: TC & Low Temp. Aftercooled
Emission Standard: N/A

KTA50-G15 G-Drive Engine

Power: 1491 kW (1998 HP) 1500 RPM
Fuel System: PT
Aspiration: TC & Low Temp. Aftercooled
Emission Standard: N/A

KTA50-G16 G-Drive Engine

Power: 1650 kW (2213 HP) @ 1500 RPM
Fuel System: PT
Aspiration: TC & Low Temp. Aftercooled
Emission Standard: N/A

KTA50-G12A-A G-Drive Engine

Power: 1684 BHP (1200 kWm) @ 1500 RPM
Fuel System: CMA PT
Aspiration: TC & Low Temp. Aftercooled
Emission Standard: N/A

QSNT-G3-A G-Drive Engine

Power: 358 kW (480 HP) @ 1500 RPM
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: STG IIIA, NRMM 3

QSNT-G3-B G-Drive Engine

Power: 358 kW (480 HP) @ 1800 RPM
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: STG IIIA, NRMM 3

QSNT-G4 G-Drive Engine

Power: 407 kW (545 HP) @ 1500 RPM
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

QSNT-G4X G-Drive Engine

ower: 407 kW (480 HP) @ 1500 RPM
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

QSK19-G3-A G-Drive Engine

Power: 770 HP (574 kW) at 1500 RPM
Fuel System: MCRS
Aspiration: TC & Air to Air Aftercooled
Emission Standard: N/A

QSK19-G3-B G-Drive Engine

Power: 815 HP (608 kW) at 1800 RPM
Fuel System: MCRS
Aspiration: TC & Air to Air Aftercooled
Emission Standard: N/A

QSK19-G4-A G-Drive Engine

Power: 770 HP (574 kW) at 1500 RPM
Fuel System: MCRS
Aspiration: TC & Charge Air Cooled
Emission Standard: N/A

QSK19-G4-B G-Drive Engine

Power: 750 HP (559 kW) at 1800 RPM
Fuel System: MCRS
Aspiration: TC & Charge Air Cooled
Emission Standard: N/A

QSK19-G5 G-Drive Engine

Power: 813 HP (606 kW) at 1500 RPM
Fuel System: MCRS
Aspiration: TC & Charge Air Cooled
Emission Standard: N/A

QSK19-G11 G-Drive Engine

Power: 813 HP (606 kW) at 1500 RPM
Fuel System: MCRS
Aspiration: TC & Air to Air Aftercooled
Emission Standard: N/A

QSK19-G11X G-Drive Engine

Power: 606kW(813BHP)@1500RPM
Fuel System: MCRS
Aspiration: TC & Air to Air Aftercooled
Emission Standard: N/A

QSK19-G12 G-Drive Engine

Power: 675 HP (503 kW) at 1500 RPM
Fuel System: MCRS
Aspiration: TC & Low Temperature Aftercooled
Emission Standard: N/A

QSK19-G13 G-Drive Engine

Power: 605 HP (451 kW) at 1500 RPM
Fuel System: PT
Aspiration: TC & Charge Air Cooled
Emission Standard: Noncertified EPA Tier 3

QSK19-G14 G-Drive Engine

Power: 539 HP (402 kW) at 1500 RPM
Fuel System: PT
Aspiration: TC & Charge Air Cooled
Emission Standard: Noncertified EPA Tier 3

QSKTAA19-G3-NR2-A G-Drive Engine

Power: 770 HP (574 kW) at 1500 RPM
Fuel System: PT
Aspiration: TC & Air to Air Aftercooled
Emission Standard: N/A

QSKTAA19-G3-NR2-B G-Drive Engine

Power: 815 HP (608 kW) at 1800 RPM
Fuel System: PT
Aspiration: TC & Air to Air Aftercooled
Emission Standard: N/A

QSK38-G1 G-Drive Engine

Power: 1174 HP (876 kW) at 1500 RPM
Fuel System: CMS MCRS
Aspiration: TC & Low Temp Aftercooled
Emission Standard: U.S. EPA Tier 2

QSK38-G4 G-Drive Engine

Power: 1650 HP (1231 kW) at 1800 RPM
Fuel System: CMS MCRS
Aspiration: TC & Low Temp Aftercooled
Emission Standard: U.S. EPA Tier 2

QSK38-G5-A G-Drive Engine

Power: 1484 HP (1107 kW) at 1500 RPM
Fuel System: CMS MCRS
Aspiration: TC & Aftercooled
Emission Standard: U.S. EPA Tier 2

QSK38-G5-B G-Drive Engine

Power: 1425 HP (1063 kW) at 1800 RPM
Fuel System: CMS MCRS
Aspiration: TC & Aftercooled
Emission Standard: U.S. EPA Tier 2

QSK50-G7 G-Drive Engine

Power: 1905 HP (1421 kW) at 1500 RPM
Fuel System: CMS
Aspiration: TC & Aftercooled
Emission Standard: U.S. EPA Tier 2

Marine Engine

NTA855 Marine Main	147 – 450 HP
KTA19 Marine Main		425 – 700 HP
KTA38 Marine Main		545 – 1200 HP
KTA50 Marine Main				1400 – 2200 HP
QSK19 Marine Main		500 – 800 HP
NTA855 Marine Auxiliary	180 – 317 kW
KTA19 Marine Auxiliary	336 – 507 kW
KTA38 Marine Auxiliary		560 – 1007 kW
KTA50 Marine Auxiliary			1097 – 1290 kW
QSK19 Marine Auxiliary		433 – 597 kW
Engine Model Power/HP ＆ kW	0	400	800	1200	1600	2000	2400	2800
	Emission Srandard:Euro ⅠEuro ⅡEuro ⅢEuro ⅣEuro ⅤEuro ⅥEuro Ⅶ

CCEC Marine Main Engine Catalogue

Series

Model

NTA855 1534mm * 781mm * 1355mm Euro ll – Euro Vl	NT855 – M147 \| 147 HP @ 1600 RPM	NT855 – M200 \| 200 HP @ 1800 RPM	NT855 – M220 \| 220 HP @ 1800 RPM	NT855 – M240 \| 240 HP @ 1800 RPM
	NT855 – M250 \| 250 HP @ 1800 RPM	NT855 – M270 \| 270 HP @ 1800 RPM	NT855 – M300 \| 300 HP @ 1800 RPM	NTA855 – M350 \| 350 HP @ 1800 RPM
	NTA855 – M400A \| 400 HP @ 1800 RPM	NTA855 – M400B \| 400 HP @ 2100 RPM	NTA855 – M450 \| 450 HP @ 1800 RPM
KTA19 1573mm * 796mm * 1343mm Euro lll	K19 – M500 \| 500 HP @ 1800 RPM	K19 – M550 \| 550 HP @ 2100 RPM	K19 – M600 \| 600 HP @ 1800 RPM	K19 – M640 \| 640 HP @ 1800 RPM
	KT19 – M425 \| 425 HP @ 1800 RPM	KTA19 – M470 \| 470 HP @ 1800 RPM	KTA19 – M500 \| 500 HP @ 1800 RPM	KTA19 – M550 \| 550 HP @ 2100 RPM
	KTA19 – M3 – 500 \| 500 BHP @ 1800 RPM	KTA19 – M600 \| 600 BHP @ 1800 RPM	KTA19 – M640 \| 640 BHP @ 1800 RPM	KTA19 – M700 \| 700 BHP @ 2100 RPM
KTA38 2210mm * 1320mm * 1651mm Euro lll	K38 – M800 \| 800 BHP @ 1800 RPM	K38 – M900 \| 900 BHP @ 1600 RPM	K38 – M1000 \| 1000 BHP @ 1800 RPM	K38 – M1100 \| 1100 BHP @ 1800 RPM
	KT38 – M600 \| 600 HP @ 1800 RPM	KT38 – M780 \| 780 HP @ 1800 RPM	KT38 – M800 \| 800 HP @ 1800 RPM	KTA38 – M900 \| 900 HP @ 1800 RPM
	KTA38 – M0 – 850 \| 850 BHP @ 1800 RPM	KTA38 – M1 – 1000 \| 1000 HP @ 1800 RPM	KTA38 – M2 – 545 \| 545 HP @ 1800 RPM	KTA38 – M2 – 1200A \| 1200 HP @ 1800 RPM
	KTA38-M2-1200B \| 1200 BHP @ 1800 RPM
KTA50 2794mm * 1507mm * 1846mm Euro lll	K50 – M2000 \| 2000 BHP @ 1800 RPM	K50 – M2200 \| 2200 BHP @ 1900 RPM	KTA50 – M2 – 1400 \| 1400 BHP @ 1600 RPM	KTA50 – M2 – 1600A \| 1600 BHP @ 1900 RPM
KTA50 2794mm * 1507mm * 1846mm Euro lll	KTA50 – M2 – 1600B \| 1600 BHP @ 1900 RPM	KTA50 – M2 – 1700 \| 1700 BHP @ 1800 RPM	KTA50 – M2 – 1800 \| 1800 BHP @ 1900 RPMM	KTA50 – M2 – 1875 \| 1875 BHP @ 1950 RPM
QSK19 2007 mm * 963 mm * 1880mm IMO Tier ll	QSK19 – M373 \| 500 HP @ 1800 RPM	QSK19-M447 \| 599 HP @ 1800 RPM	QSK19-M492 \| 660 HP @ 1800 RPM	QSK19-M559-I \| 750 HP @ 1800 RPM
	QSK19-M559-II \| 750 HP @ 1800 RPM	QSK19-M567 \| 760 HP @ 2100 RPM	QSK19-M597-I \| 800 HP @ 1800 RPM	QSK19-M597-II \| 800 HP @ 2100 RPM
	QKS19-M597-III \| 800 HP @ 2100 RPM
——END——

CCEC Marine Auxiliary Engine Catalogue

Series

Model

NTA855 1534mm * 781mm * 1355mm Euro ll – Euro Vl	N855 – DM240 \| 322 HP @ 1500 RPM	N855 – DM284 \| 381 HP @ 1500 RPM	N855 – DM287 \| 385 HP @ 1800 RPM	N855 – DM313 \| 420 HP @ 1800 RPM
	N855 – DM317 \| 425 HP @ 1500 RPM	NT855 – D(M)180 \| 241 HP @ 1500 RPM	NT855 – D(M)205 \| 275 HP @ 1500 RPM	NT855 – D(M)230 \| 308 HP @ 1500 RPM
	NTA855 – D(M)240 \| 322 HP @ 1500 RPM	NTA855 – D(M)264 \| 354 HP @ 1500 RPM	NTA855 – D(M)284 \| 381 HP @ 1500 RPM	NTA855 – D(M)287 \| 385 HP @ 1800 RPM
	NTA855 – D(M)306 \| 410 HP @ 1800 RPM	NTA855 – D(M)313 \| 420 HP @ 1800 RPM	NTA855 – D(M)317 \| 425 HP @ 1500 RPM
KTA19 1182 mm * 761 mm * 1127 mm Euro ll – Euro lll	KTA19 – D(M)336 \| 450 HP @ 1500 RPM	KTA19 – D(M)392 \| 525 HP @ 1800 RPM	KTA19 – D(M)403 \| 540 HP @ 1500 RPM	KTA19 – D(M)448 \| 600 HP @ 1500 RPM
KTA19 1182 mm * 761 mm * 1127 mm Euro ll – Euro lll	KTA19 – D(M)463 \| 620 HP @ 1800 RPM	KTA19 – D(M)507 \| 680 HP @ 1800 RPM
KTA38 1494 mm * 796 mm * 1228 mm Euro ll – Euro lll	K38 – DM746 \| 1000 HP @ 1500 RPM	K38 – DM821 \| 1100 HP @ 1800 RPM	K38 – DM880 \| 540 HP @ 1500 RPM	K38 – DM969 \| 600 HP @ 1500 RPM
	KT38 – D(M)560 \| 620 HP @ 1800 RPM	KT38 – D(M)679 \| 680 HP @ 1800 RPM	KTA38 – D(M)664 \| 890 HP @ 1500 RPM	KTA38 – D(M)768 \| 1030 HP @ 1800 RPM
	KTA38 – D(M)809 \| 1085 HP @ 1800 RPM	KTA38 – D(M)814 \| 1092 HP @ 1800 RPM	KTA38 – D(M)880 \| 1180 HP @ 1500 RPM	KTA38 – D(M)1007 \| 1350 HP @ 1800 RPM
KTA50 1400 mm * 900 mm * 1100 mm Euro lll	K50 – DM1097 \| 1470 HP @ 1500 RPM	K50 – DM1290 \| 1730 HP @ 1800 RPM
QSK19 2007 mm * 963 mm * 1880mm IMO Tier ll	QSK19 – D(M)433 \| 580 HP @ 1500 RPM	QSK19 – D(M)526 \| 705 HP @ 1500 RPM	QSK19 – D(M)563 \| 755 HP @ 1800 RPM	QSK19 – D(M)597 \| 800 HP @ 1800 RPM
——END——

NT855-M147 Marine Engine

Power: 110 kW (147 HP) @ 1600 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: Turbocharged
Emission Standard: N/A

NT855 – M200 Marine Engine

Power: 149 kW (200 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: Turbocharged
Emission Standard: N/A

NT855 – M220 Marine Engine

Power: 164 kW (220 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: Turbocharged
Emission Standard: N/A

NT855 – M240 Marine Engine

Power: 179 kW (240 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: Turbocharged
Emission Standard: N/A

NT855 – M250 Marine Engine

Power: 187 kW (250 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: Turbocharged
Emission Standard: N/A

NT855 – M270 Marine Engine

Power: 201 kW (270 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: Turbocharged
Emission Standard: N/A

NT855 – M300 Marine Engine

Power: 224 kW (300 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: Turbocharged
Emission Standard: N/A

NTA855 – M350 Marine Engine

Power: 261 kW (350 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

NTA855 – M400A Marine Engine

Power: 298 kW (400 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

NTA855 – M400B Marine Engine

Power: 298 kW (400 HP) @ 2100 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

NTA855 – M450 Marine Engine

Power: 336 kW (450 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA19-M500 Marine Engine

Power: 373 kW (500 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA19-M550 Marine Engine

Power: 410 kW (550 HP) @ 2100 RPM
Rating Type: Medium Continuous
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA19-M600 Marine Engine

Power: 447 kW (600 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA19-M640 Marine Engine

Power: 477 kW (640 HP) @ 1800 RPM
Rating Type: Heavy Duty
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA19-M425 Marine Engine

Power: 317 kW (425 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: Turbocharged
Emission Standard: N/A

KTA19-M470 Marine Engine

Power: 351 kW (470 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA19-M500 Marine Engine

Power: 373 kW (500 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA19-M550 Marine Engine

Power: 410 kW (550 HP) @ 2100 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA19-M3-500 Marine Engine

Power: 373 kW (500 BHP) @ 1800 RPM
Rating Type: Continuous Duty
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA19-M600 Marine Engine

Power: 447 kW (600 BHP) @ 1800 RPM
Rating Type: Continuous Duty
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA19-M640 Marine Engine

Power: 477 kW (640 BHP) @ 1800 RPM
Rating Type: Heavy Duty
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA19-M700 Marine Engine

Power: 522 kW (700 BHP) @ 2100 RPM
Rating Type: Heavy Duty
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

K38-M900 Marine Engine

Power: 671 kW (900 BHP) @ 1600 RPM
Rating Type: Continuous Duty
Fuel System: PT (V.S/AFC)
Aspiration: Turbocharged / LTA
Emission Standard: N/A

K38-M1000 Marine Engine

Power: 746 kW (1000 BHP) @ 1800 RPM
Rating Type: Continuous Duty
Fuel System: PT (V.S/AFC)
Aspiration: Turbocharged / LTA
Emission Standard: N/A

KT38-M600 Marine Engine

Power: 448 kW (600 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: Turbocharged
Emission Standard: N/A

KT38-M780 Marine Engine

Power: 582 kW (780 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: Turbocharged
Emission Standard: N/A

KT38-M800 Marine Engine

Power: 596 kW (800 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: Turbocharged
Emission Standard: N/A

KTA38-M800 Marine Engine

Power: 596 kW (800 BHP) @ 1800 RPM
Rating Type: Continuous Duty
Fuel System: PT (V.S/AFC)
Aspiration: Turbocharged / LTA
Emission Standard: N/A

KTA38-M900 Marine Engine

Power: 671 kW (900 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-M1100 Marine Engine

Power: 821 kW (1100 BHP) @ 1800 RPM
Rating Type: Continuous Duty
Fuel System: PT (V.S/AFC)
Aspiration: Turbocharged / LTA
Emission Standard: N/A

KTA38-M0-850 Marine Engine

Power: 634 kW (850 BHP) @ 1800 RPM
Rating Type: Continuous Duty
Fuel System: PT
Aspiration: TC/ Jacket Water Aftercooled
Emission Standard: N/A

KTA38-M-1000 Marine Engine

Power: 746 kW (1000 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-M2-545 Marine Engine

Power: 407 kW (545 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-M2-1200A Marine Engine

Power: 895 kW (1200 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

KTA38-M2-1200B Marine Engine

Power: 895 kW (1200 BHP) @ 1800 RPM
Rating Type: Continuous Duty
Fuel System: PT
Aspiration: TC & Water – Air Intercooler
Emission Standard: N/A

K50-M2000 Marine Engine

Power: 1492 kW (2000 BHP)@1800 RPM
Rating Type: Medium Continuous Duty
Fuel System: PT (V.S/AFC)
Aspiration: Turbocharged / LTA
Emission Standard: N/A

K50-M2200 Marine Engine

Power: 1641 kW (2200 BHP)@1900 RPM
Rating Type: Medium Continuous Duty
Fuel System: PT (V.S/AFC)
Aspiration: Turbocharged / LTA
Emission Standard: N/A

KTA50-M2-1400 Marine Engine

Power: 1044 kW (1400 BHP)@1600 RPM
Rating Type: Continuous Duty
Fuel System: PT (Centry And V.S.)
Aspiration: Turbocharged / LTA
Emission Standard: N/A

KTA50-M2-1600A Marine Engine

Power: 1193 kW (1600 BHP)@1900 RPM
Rating Type: Heavy Duty
Fuel System: Centry Only
Aspiration: TC/ Jacket Water Aftercooled
Emission Standard: N/A

CCEC KTA50-M2-1600B Marine Engine

Power: 1193 kW (1600 BHP)@1900 RPM
Rating Type: Continuous Duty
Fuel System: PT (Centry And V.S.)
Aspiration: Turbocharged / LTA
Emission Standard: N/A

CCEC KTA50-M2-1700 Marine Engine

Power: 1268 kW (1700 BHP)@1800 RPM
Rating Type: Heavy Duty
Fuel System: PT (Centry And V.S.)
Aspiration: Turbocharged / LTA
Emission Standard: N/A

CCEC KTA50-M2-1800 Marine Engine

Power: 1342 kW (1800 BHP)@1900 RPM
Rating Type: Heavy Duty
Fuel System: PT (Centry And V.S.)
Aspiration: Turbocharged / LTA
Emission Standard: N/A

CCEC KTA50-M2-1875 Marine Engine

Power: 1398 kW (1875 BHP)@1950 RPM
Rating Type: Medium Continuous Duty
Fuel System: PT (Centry And V.S.)
Aspiration: Turbocharged / LTA
Emission Standard: N/A

QSK19-M373 Marine Main Engine

Power: 373 kW (500 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: MCRS
Aspiration: Turbocharged / Aftercooled
Emission Standard: N/A

QSK19-M447 Marine Main Engine

Power: 447 kW (599 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: MCRS
Aspiration: Turbocharged / Aftercooled
Emission Standard: N/A

QSK19-M492 Marine Main Engine

Power: 492 kW (660 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: MCRS
Aspiration: Turbocharged / Aftercooled
Emission Standard: N/A

QSK19-M559-I Marine Main Engine

Power: 559 kW (750 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: MCRS
Aspiration: Turbocharged / Aftercooled
Emission Standard: N/A

QSK19-M559-II Marine Main Engine

Power: 559 kW (750 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: MCRS
Aspiration: Turbocharged / Aftercooled
Emission Standard: N/A

QSK19-M567 Marine Main Engine

Power: 567 kW (760 HP) @ 2100 RPM
Rating Type: Continuous
Fuel System: MCRS
Aspiration: Turbocharged / Aftercooled
Emission Standard: N/A

QSK19-M597-I Marine Main Engine

Power: 597 kW (800 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: MCRS
Aspiration: Turbocharged / Aftercooled
Emission Standard: N/A

QSK19-M597-II Marine Main Engine

Power: 597 kW (800 HP) @ 2100 RPM
Rating Type: Continuous
Fuel System: MCRS
Aspiration: Turbocharged / Aftercooled
Emission Standard: N/A

QSK19-M597-III Marine Main Engine

Power: 597 kW (800 HP) @ 2100 RPM
Rating Type: Continuous
Fuel System: MCRS
Aspiration: Turbocharged / Aftercooled
Emission Standard: N/A

N855-DM240 Auxiliary Engine

Power: 240 kW (321 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: Direct Injection CMI PT
Aspiration: Turbocharged / LTA
Emission Standard: N/A

N855-DM284 Auxiliary Engine

Power: 284 kW (380 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: Direct Injection CMI PT
Aspiration: Turbocharged / LTA
Emission Standard: N/A

N855-DM287 Auxiliary Engine

Power: 287 kW (385 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: Direct Injection CMI PT
Aspiration: Turbocharged / LTA
Emission Standard: N/A

N855-DM313 Auxiliary Engine

Power: 313 kW (420 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: Turbocharged / LTA
Emission Standard: N/A

N855-DM317 Auxiliary Engine

Power: 317 kW (425 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: Direct Injection CMI PT
Aspiration: Turbocharged / LTA
Emission Standard: N/A

NT855-D(M)180 Auxiliary Engine

Power: 180 kW (241 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: Turbocharged
Emission Standard: N/A

NT855-D(M)205 Auxiliary Engine

Power: 205 kW (275 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: Turbocharged
Emission Standard: N/A

NT855-D(M)230 Auxiliary Engine

Power: 230 kW (308 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: Turbocharged
Emission Standard: N/A

NTA855-D(M)240 Auxiliary Engine

Power: 240 kW (322 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC& Water-Air Intercooler
Emission Standard: N/A

NTA855-D(M)264 Auxiliary Engine

Power: 264 kW (354 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

NTA855-D(M)284 Auxiliary Engine

Power: 284 kW (380 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

NTA855-D(M)287 Auxiliary Engine

Power: 287 kW (385 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

NTA855-D(M)306 Auxiliary Engine

Power: 306 kW (410 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

NTA855-D(M)313 Auxiliary Engine

Power: 313 kW (420 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

NTA855-D(M)317 Auxiliary Engine

Power: 317 kW (425 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19 – D(M)336 Auxiliary Engine

Power: 336 kW (450 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19 – D(M)392 Auxiliary Engine

Power: 392 kW (525 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19 – D(M)403 Auxiliary Engine

Power: 403 kW (540 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19 – D(M)448 Auxiliary Engine

Power: 448 kW (600 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19 – D(M)463 Auxiliary Engine

Power: 463 kW (620 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA19 – D(M)507 Auxiliary Engine

Power: 507 kW (680 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA38 – D(M)1007 Auxiliary Engine

Power: 1007 kW (1350 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

K38 – DM746 Auxiliary Engine

Power: 746 kW (1000 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: Turbocharged / LTA
Emission Standard: N/A

K38 – DM821 Auxiliary Engine

Power: 821 kW (1100 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: Direct Injection CMI PT
Aspiration: Turbocharged / LTA
Emission Standard: N/A

K38 – DM880 Auxiliary Engine

Power: 880 kW (1180 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: Direct Injection CMI PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

K38 – DM969 Auxiliary Engine

Power: 969 kW (1300 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: Direct Injection CMI PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KT38 – D(M)560 Auxiliary Engine

Power: 560 kW (750 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: Turbocharged
Emission Standard: N/A

KT38 – D(M)679 Auxiliary Engine

Power: 679 kW (910 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: Turbocharged
Emission Standard: N/A

KTA38 – D(M)664 Auxiliary Engine

Power: 880 kW (1180 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA38 – D(M)768 Auxiliary Engine

Power: 768 kW (1030 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: PT Pump
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA38 – D(M)809 Auxiliary Engine

Power: 809 kW (1085 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA38 – D(M)814 Auxiliary Engine

Power: 814 kW (1092 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: PT Pump
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA38 – D(M)880 Auxiliary Engine

Power: 880 kW (1180 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

K50 – DM1097 Auxiliary Engine

Power: 1097 kW (1470 HP) @ 1500 RPM
Rating Type: Prime Power
Fuel System: Direct Injection CMI STC
Aspiration: TC& Water-Air Intercooler
Emission Standard: N/A

K50 – DM1290 Auxiliary Engine

Power: 1290 kW (1730 HP) @ 1800 RPM
Rating Type: Prime Power
Fuel System: PT
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

QSK19-D(M)433 Marine Auxiliary Engine

Power: 433 kW (580 HP) @ 1500 RPM
Rating Type: Continuous
Fuel System: MCRS
Aspiration: Turbocharged / Aftercooled
Emission Standard: N/A

QSK19-D(M)526 Marine Auxiliary Engine

Power: 526 kW (705 HP) @ 1500 RPM
Rating Type: Continuous
Fuel System: MCRS
Aspiration: Turbocharged / Aftercooled
Emission Standard: N/A

QSK19-D(M)563 Marine Auxiliary Engine

Power: 563 kW (755 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: MCRS
Aspiration: Turbocharged / Aftercooled
Emission Standard: N/A

QSK19-D(M)597 Marine Auxiliary Engine

Power: 597 kW (800 HP) @ 1800 RPM
Rating Type: Continuous
Fuel System: MCRS
Aspiration: Turbocharged / Aftercooled
Emission Standard: N/A

Gas Engine

K19N Gas G-Drive		343–450 kW
K38N Gas G-Drive			560–900 kW
K50N Gas G-Drive						1100–1250 kW
GKT19 Gas G-Drive		300 kW
GKT38 Gas G-Drive			500 kW
GTA855 Gas G-Drive		240 kW
QSK19N Gas G-Drive		343 kW
Engine Model Power/kW	0	200	400	600	800	1000	1200	1400
	Emission Srandard:Euro ⅠEuro ⅡEuro ⅢEuro ⅣEuro ⅤEuro ⅥEuro Ⅶ

CCEC Gas Engine Catalogue

Series

Model

K19N Euro II	K19N-G1 \|343 kW ( 460 BHP ) @ 1500 RPM	K19N-G3\| 388 kW ( 520 BHP ) @ 1500 RPM	K19N-G4\| 450 kW (603 BHP ) @ 1500 RPM
K38N Euro II	K38N-G5 \|560 kW ( 751 BHP ) @ 1500 RPM	K38N-G6 \|660 kW ( 885 BHP ) @ 1500 RPM	K38N-G7 \|768 kW (1030 BHP ) @ 1500 RPM	K38N-G8\| 900 kW (1027 BHP ) @ 1500 RPM
K50N Euro ll	K50N-G9\| 990 kW (1328 BHP ) @ 1500 RPM	K50N-G10 \|1100 kW ( 1475 BHP ) @ 1500 RPM
GKT19 Euro II	GKT19-G300 \|300 kW ( 402 HP ) @ 1500 RPM
GKT38 Euro II	GKT38-G500\|500 kW ( 670 BHP ) @ 1500 RPM
GTA855 Euro III	GTA855-G2\|240 kW ( 321 BHP ) @ 1500 RPM
QSK19N Euro III	QSK19N-G1\|343 kW ( 460 BHp ) @ 1500 RPM
——END——

Engine Parts

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Sales Team

Generator - SinoGen

Marine - SeaMac

Automotive - DuraMac

Railways - RailMac

Industrial - ConeMac

Pump - PumpMac

Fire - Pump - PumpMac

EV System - EVMac

Parts - PartMac

Sales Manager - Mrs. Wendy Fu

Sales Director - Mr. Jasper Lee

Shipping Service

QSM11 N/A Euro I – III	We are sorry to tell that mechanical M11 engine no longer in production, please choose QSM11 engine to replace M11 engine.
	M11-G2 \| 300HP @ 1500 RPM	M11-C225A \| 185 HP @ 1850 RPM	M11-C225B \| 225 HP @ 1800 RPM	M11-C225C \| 290 HP @ 1800 RPM
	M11-C225D \| 225 HP @ 2100 RPM	M11-C225E \| 275 HP @ 2100 RPM	M11-C225H \| 245 HP @ 2100 RPM	M11-C250A \| 244 HP @ 2100 RPM
	M11-C250B \| 249 HP @ 2100 RPM	M11-C250E20 \| 249 HP @ 2100 RPM	M11-C270 \| 270 HP @ 2100 RPM	M11-C270E20 \| 270 HP @ 2100 RPM
	M11-C290 \| 290 HP @ 2100 RPM	M11-C290E20 \| 290 HP @ 2100 RPM	M11-C300A \| 300 HP @ 2100 RPM	M11-C300B \| 290 HP @ 2100 RPM
	M11-C300C \| 300 HP @ 2100 RPM	M11-C310A \| 310 HP @ 2100 RPM	M11-C310B \| 310 HP @ 2100 RPM	M11-C310E20 \| 310 HP @ 2100 RPM
	M11-C330 \| 330 HP @ 2100 RPM	M11-C330E20 \| 330 HP @ 2100 RPM	M11-C350 \| 350 HP @ 2100 RPM	M11-C350E20 \| 350 HP @ 2100 RPM
	M11-C380E20 \| 381 HP @ 2100 RPM	ISM305E20 \| 300 HP @ 1900 RPM	ISM305ESP22 \| 300 HP @ 1900 RPM	ISME335 30 \| 330 HP @ 1900 RPM
	ISM340E20 \| 335 HP @ 1900 RPM	ISME345 30 \| 341 HP @ 1900 RPM	ISM380 \| 380 HP @ 1800 RPM	ISM380E20 \| 380 HP @ 1900 RPM
	ISME385 30 \| 381 HP @ 2100 RPM	ISM405E20 \| 400 HP @ 1900 RPM	ISME420 30 \| 410 HP @ 1900 RPM	ISM440E20 \| 426 HP @ 1900 RPM
	ISM450 \| 451 HP @ 1800 RPM
NTA855 N/A Euro II	NT855-C250 \| 251 HP @ 2100 RPM	NT855-C280 \| 240 HP @ 2000 RPM	NT855-C280B \| 280 HP @ 2100 RPM	NTA855-C310 \| 310 HP @ 2100 RPM
	NTA855-C335 \| 335 HP @ 2100 RPM	NTA855-C360 \| 345 HP @ 2000 RPM	NTA855-C360B \| 359 HP @ 2100 RPM	NTA855-C400 \| 345 HP @ 1900 RPM
	NTA855-C400B \| 400 HP @ 2100 RPM	NTA855-C450 \| 451 HP @ 2100 RPM
QSNT N/A Euro III	QSNT-C500 \| 500 HP @ 2000 RPM
KTA19 N/A Euro II	KT19-C450 \| 451 HP @ 2200 RPM	KTA19-C/P/L525 \| 526 HP @ 2100 RPM	KT19-C.L600 \| 601 HP @ 2100 RPM	KTTA19-C700 \| 700 HP @ 2100 RPM
KTA38 N/A Euro II	KT38-C925 \| 925 HP @ 2100 RPM	KTA38-C/P/L1050 \| 1050 HP @ 2100 RPM	KTA38-C1100 \| 1100 HP @ 1800 RPM
KTA50 N/A Euro II – III	KTA50-C1600 \| 1600 HP @ 2100 RPM	KTA50-C1600-II \| 1601 HP @ 1900 RPM	KTA50-C1800 \| 1801 HP @ 1900 RPM	KTA50-C2000 \| 2682 HP @ 1900 RPM
KTA50 N/A Euro II – III	KTTA50-C2000 \| 1999 HP @ 1900 RPM	KTA50-C2250 \| 2252 HP @ 1900 RPM
QSK19 2857 mm * 1415 mm * 1766 mm Euro II – III	QSK19-C506 \| 506 HP @ 1800 RPM	QSK19-C525 \| 525 HP @ 2000 RPM	QSK19-C560A \| 560 HP @ 2000 RPM	QSK19-C560B \| 560 HP @ 2000 RPM
	QSK19-C600 \| 599 HP @ 2000 RPM	QSK19-C675 \| 675 HP @ 1800 RPM	QSK19-C700A \| 700 HP @ 2000 RPM	QSK19-C700B \| 700 HP @ 1800 RPM
	QSK19-C760 \| 760 HP @ 2100 RPM	QSK19-C800 \| 800 HP @ 2100 RPM	QSK19-G3 \| 815 HP @ 1800 RPM
QSK23 N/A Euro II	QSK23-C760 \| 760 HP @ 1800 RPM	QSK23-C860 \| 860 HP @ 2100 RPM
QSK38 2260 mm * 1339 mm * 2332 mm Euro II	QSK38-C1085 \| 1085 HP @ 1800 RPM	QSK38-C1086 \| 1086 HP @ 1800 RPM	QSK38-C1200 \| 1200 HP @ 1800 RPM	QSK38-C1260 \| 1260 HP @ 1800 RPM
QSK38 2260 mm * 1339 mm * 2332 mm Euro II	QSK38-C1350 \| 1530 HP @ 1800 RPM	QSK23-C1530 \| 1530 HP @ 1900 RPM	QSK38-C1600 \| 1600 HP @ 1900 RPM
QSK50 2857 mm * 1415 mm * 1766 mm Euro II	QSK50-C1400 \| 1400 HP @ 1800 RPM	QSK50-C1500 \| 1500 HP @ 1800 RPM	QSK50-C1600 \| 1600 HP @ 1800 RPM	QSK50-C1675 \| 1675 HP @ 1800 RPM
QSK50 2857 mm * 1415 mm * 1766 mm Euro II	QSK50-C2500 \| 2500 HP @ 1900 RPM
QSK60 N/A Euro I – II	QSK60-C2237 \| 2237 HP @ 1800 RPM	QSK60-C2300 \| 2300 HP @ 1900 RPM	QSK60-C3000 \| 3000 HP @ 1900 RPM
QSK78 N/A Euro II	QSK78-C3500 \| 3500 HP @ 1900 RPM
QSK95 N/A Euro II	QSK95-C4400 \| 4400 HP @ 1800 RPM
X15 N/A Euro III	X15-C535 \| 535 HP @ 2100 RPM	QSX15-C375 \| 375 HP @ 1800 RPM	QSX15-C525 \| 525 HP @ 2100 RPM	QSX15-C530 \| 530 HP @ 1800 RPM
QST30 N/A Euro II	QST30-C1050 \| 1050 HP @ 1900 RPM	QST30-C1200 \| 1200 HP @ 1800 RPM
——END——

NTA855 TC & Water-Air Intercooler	NT855-P300 \| 224 KW @1500 RPM	NT855-P300B \| 224 KW @1500 RPM	NTA855-P360C \| 268 KW @2100 RPM	NTA855-P360B \| 269 KW @1800 RPM
	NT855-P360 \| 269 KW @1800 RPM	NTA855-P360 \| 269 KW @2100 RPM	NT855-P400 \| 298 KW @1800 RPM	NTA855-P400A \| 298 KW @1500 RPM
	NTA855-P400C \| 298 KW @2100 RPM	NTA855-P400B \| 299 KW @1500 RPM	NTA855-P450 \| 336 KW @1800 RPM	NTA855-P450B \| 336 KW @2100 RPM
	NTA855-P470 \| 351 KW @1500 RPM	NTA855-P470B \| 351 KW @1500 RPM	NTA855-P500 \| 373 KW @1800 RPM	NTA855-P500B \| 373 KW @1800 RPM
KTA19 TC & Water-Air Intercooler	KTA19-P450 \| 336 KW @2100 RPM	KTA19-P495 \| 369 KW @1500 RPM	KTA19-P500A \| 373 KW @1500 RPM	KTA19-P500B \| 373 KW @1800 RPM
	KTA19-P525A \| 392 KW @1800 RPM	KTA19-P525B \| 392 KW @2100 RPM	KTA19-P600A \| 448 KW @1500 RPM	KTA19-P600B \| 448 KW @1800 RPM
	KTA19-C600 \| 448 KW @2100 RPM	KTA19-P755 \| 504 KW @1800 RPM	KTA19-P680 \| 507 KW @1500 RPM	KTA19-P700 \| 522 KW @1800 RPM
	KTAA19-C700 \| 522 kw @2100 RPM	KTAA19-P818B \| 552 KW @1500 RPM	KTA19-P750 \| 559 KW @1800 RPM	KTAA19-P673 \| 570 KW @1500 RPM
	KTAA19-P818 \| 610 KW @1500 RPM	KTAA19-P890 \| 664 KW @1800 RPM
KTA38 Turbocharged	KT38-P700 \| 522 KW @1800 RPM	KT38-P780 \| 582 KW @1800 RPM	KT38-P830 \| 619 KW @1500 RPM	KTA38-P900 \| 671 KW @1800 RPM
	KT38-P980 \| 731 KW @1500 RPM	KTA38-P980B \| 731 KW @1500 RPM	KT38-P1000 \| 746 KW @1800 RPM	KTA38-P1080 \| 813 KW @1800 RPM
	KTA38-P1100 \| 821 KW @1800 RPM	KTA38-P1200 \| 821 KW @1800 RPM	KTA38-P1200A \| 895 KW @1500 RPM	KTA38-P1200B \| 895 KW @1800 RPM
	KTA38-P1250 \| 933KW @1800 RPM	KTA38-P1300 \| 970 KW @1500 RPM	KTA38-P1400 \| 1045 KW @1800 RPM	KTA38-P1400 \| 1045 KW @1800 RPM
	KTA38-P1490 \| 1112 KW @1800 RPM
KTA50 TC & Water-Air Intercooler	KTA50-P1645 \| 1227 KW @1800 RPM	KTA50-P1915 \| 1429 KW @1800 RPM	KTTA50-2000 \| 1491 KW @1900 RPM	KTA50-P2220 \| 1657 KW @1800 RPM
QSK38 Turbocharged, intercooled	QSK-CQ38E \| 855 kW @1800 RPM
——END——

MTA11 G-Drive Engine 1324 mm * 835 mm * 1183 mm	MTA11-G2-A \| 224 kW @ 1500 RPM	MTA11-G2-B \| 257 kW @ 1500 RPM	MTA11-G2A \| 234 kW @ 1500 RPM	MTAA11-G3 \| 282 kW @ 1500 RPM
NTA855 G-Drive Engine 1534 mm * 781 mm * 1355 mm	NT855-G \| 205 kW @ 1500 RPM	NT855-GA \| 231 kW @ 1500 RPM	NTA855-G1-A \| 240 kW @ 1500 RPM	NTA855-G1-B \| 287 kW @ 1500 RPM
	NTA855-G1A \| 264 kW @ 1500 RPM	NTA855-G2A \| 310 kW @ 1500 RPM	NTA855-G1B \| 284 kW @ 1500 RPM	NTA855-G1B \| 284 kW @ 1500 RPM
	NTA855-G3 \| 358 kW @ 1800 RPM	NTA855-G4 \| 317 kW @ 1500 RPM	NTAA855-G7 \| 343 kW @ 1500 RPM	NTAA855-G7A \| 300 HP @ 2200 RPM
KTA19 G-Drive Engine 1573 mm * 796 mm * 1343 mm	KTA19-G2-A \| 336 kW @ 1500 RPM	KTA19-G2-B \| 392 kW @ 1800 RPM	KTA19-G3-A \| 403 kW @ 1500 RPM	KTA19-G3-B \| 463 kW @ 1800 RPM
	KTA19-G3A-A \| 448 kW @1500 RPM	KTA19-G3A-B \| 507 kW @ 1800 RPM	KTA19-G4-A \| 448 kW @ 1500 RPM	KTA19-G4-B \| 507 kW @ 1800 RPM
	KTA19-G8 \| 575 kW @ 1500 RPM	KTA19-G8A \| 550 kW @ 1500 RPM	KTA19-G8E \| 500 kW @1500 RPM	KTA19-G9A \| 600 kW @ 1500 RPM
	KTAA19-G5-A \| 470 kW @ 1500 RPM	KTAA19-G5-B \| 533 kW @ 1800 RPM	KTAA19-G6-A \| 520 kW @1500 RPM	KTAA19-G6-B \| 831 kW @ 1800 RPM
	KTAA19-G6A-A \| 610 kW @ 1500 RPM	KTAA19-G6A-B \| 664 kW @ 1800 RPM	KTAA19-G7-A \| 610 kW @ 1500 RPM	KTAA19-G7-B \| 664 kW @ 1800 RPM
KTA38 G-Drive Engine 2341 mm * 1360 mm * 1653 mm	KT38-GA \| 647 kW @ 1500 RPM	KT38-G-A \| 560 kW @ 1500 RPM	KT38-G-B \| 679 kW @ 1800 RPM	KTA38-G1-A \| 634 kW @ 1500 RPM
	KTA38-G1-B \| 769 kW @ 1800 RPM	KTA38-G1B-A \| 634 kW @ 1500 RPM	KTA38-G1B-B \| 769 kW @ 1800 RPM	KTA38-G1E \| 605 kW @ 1500 RPM
	KTA38-G2-A \| 664 kW @ 1500 RPM	KTA38-G2-B \|804 kW @ 1500 RPM	KTA38-G2A-A \| 813 kW @ 1500 RPM	KTA38-G2A-B \| 915 kW @ 1800 RPM
	KTA38-G2B-A \| 711 kW @ 1500 RPM	KTA38-G2B-B \| 830 kW @ 1500 RPM	KTA38-G2E \|715 kW @ 1500 RPM	KTA38-G4\| 1007 kW @ 1500 RPM
	KTA38-G5 \| 880 kW @ 1500 RPM	KTA38-G5E \| 825 kW @ 1500 RPM	KTA38-G7E \| 935 kW @ 1500 RPM	KTA38-G9-A \| 1195 kW @ 1500 RPM
	KTA38-G9-B \| 1220 kW @ 1500 RPM	KTAA38-G9A \| 1195 kW @ 1500 RPM	KTA38-G9E \| 990 kW @ 1500 RPM
KTA50 G-Drive Engine 2794 mm * 1507 mm * 1846 mm	KTA50-G3-A \|1097 kW @ 1500 RPM	KTA50-G3-B \| 1220 kW @ 1500 RPM	KTA50-G3E \| 1210 kW @ 1500 RPM	KTA50-G7E \| 1210 kW @ 1500 RPM
	KTA50-G8 \| 1200 kW @ 1500 RPM	KTA50-GS8 \| 1725 kW @ 1500 RPM	KTA50-G9 \| 1384 kW @ 1800 RPM	KTA50-G12-A \| 1095 kW @ 1500 RPM
	KTA50-G12-B \| 1178 kW @ 1500 RPM	KTA50-G12A-A \| 1200 kW @ 1500 RPM	KTA50-G12A-B \| 1347 kW @ 1500 RPM	KTA50-G15 \| 1491 kW @ 1500 RPM
	KTA50-G16 \| 1200 kW @ 1500 RPM
QSNT G-Drive Engine 1534 mm * 781 mm * 1355 mm	QSNT-G3-A \| 358 kW @ 1500 RPM	QSNT-G3-B \| 358 kW @ 1500 RPM	QSNT-G4 \| 407 kW @ 1500 RPM	QSNT-G4X \| 407 kW @ 1500 RPM
QSZ19 G-Drive Engine 1695 mm * 985 mm * 1723 mm	QSK19-G3-A \|574 kW @ 1500 RPM	QSK19-G3-B \| 608 kW @ 1800 RPM	QSK19-G4-A \| 574 kW @ 1500 RPM	QSK19-G4-B\| 559 kW @ 1800 RPM
	QSK19-G5 \| 669 kW @ 1800 RPM	QSK19-G11 \| 500 kW @ 1500 RPM	QSK19-G11X \| 667 kW @ 1500 RPM	QSK19-G12 \| 670 kW @ 1500 RPM
	QSK19-G13 \| 406 kW @ 1500 RPM	QSK19-G14\| 362 kW @ 1500 RPM	QSKTAA19-G3-NR2-A \| 336 kW @ 1500 RPM	QSKTAA19-G3-NR2-B \| 670 kW @ 1500 RPM
QSK38 G-Drive Engine 2220 mm * 1507 mm * 1846 mm	QSK38-G1 \| 1063 kW @ 1500 RPM	QSK38-G4 \| 1230 kW @ 1800 RPM	QSK38-G5-A \|1107 kW @ 1500 RPM	QSK38-G5-B \| 1063 kW @ 1500 RPM
QSK50 G-Drive Engine 2794 mm * 1507 mm * 1846 mm	QSK50-G7 \| 1063 kW @ 1500 RPM
——END——

NTA855 1534mm * 781mm * 1355mm Euro ll – Euro Vl	NT855 – M147 \| 147 HP @ 1600 RPM	NT855 – M200 \| 200 HP @ 1800 RPM	NT855 – M220 \| 220 HP @ 1800 RPM	NT855 – M240 \| 240 HP @ 1800 RPM
	NT855 – M250 \| 250 HP @ 1800 RPM	NT855 – M270 \| 270 HP @ 1800 RPM	NT855 – M300 \| 300 HP @ 1800 RPM	NTA855 – M350 \| 350 HP @ 1800 RPM
	NTA855 – M400A \| 400 HP @ 1800 RPM	NTA855 – M400B \| 400 HP @ 2100 RPM	NTA855 – M450 \| 450 HP @ 1800 RPM
KTA19 1573mm * 796mm * 1343mm Euro lll	K19 – M500 \| 500 HP @ 1800 RPM	K19 – M550 \| 550 HP @ 2100 RPM	K19 – M600 \| 600 HP @ 1800 RPM	K19 – M640 \| 640 HP @ 1800 RPM
	KT19 – M425 \| 425 HP @ 1800 RPM	KTA19 – M470 \| 470 HP @ 1800 RPM	KTA19 – M500 \| 500 HP @ 1800 RPM	KTA19 – M550 \| 550 HP @ 2100 RPM
	KTA19 – M3 – 500 \| 500 BHP @ 1800 RPM	KTA19 – M600 \| 600 BHP @ 1800 RPM	KTA19 – M640 \| 640 BHP @ 1800 RPM	KTA19 – M700 \| 700 BHP @ 2100 RPM
KTA38 2210mm * 1320mm * 1651mm Euro lll	K38 – M800 \| 800 BHP @ 1800 RPM	K38 – M900 \| 900 BHP @ 1600 RPM	K38 – M1000 \| 1000 BHP @ 1800 RPM	K38 – M1100 \| 1100 BHP @ 1800 RPM
	KT38 – M600 \| 600 HP @ 1800 RPM	KT38 – M780 \| 780 HP @ 1800 RPM	KT38 – M800 \| 800 HP @ 1800 RPM	KTA38 – M900 \| 900 HP @ 1800 RPM
	KTA38 – M0 – 850 \| 850 BHP @ 1800 RPM	KTA38 – M1 – 1000 \| 1000 HP @ 1800 RPM	KTA38 – M2 – 545 \| 545 HP @ 1800 RPM	KTA38 – M2 – 1200A \| 1200 HP @ 1800 RPM
	KTA38-M2-1200B \| 1200 BHP @ 1800 RPM
KTA50 2794mm * 1507mm * 1846mm Euro lll	K50 – M2000 \| 2000 BHP @ 1800 RPM	K50 – M2200 \| 2200 BHP @ 1900 RPM	KTA50 – M2 – 1400 \| 1400 BHP @ 1600 RPM	KTA50 – M2 – 1600A \| 1600 BHP @ 1900 RPM
KTA50 2794mm * 1507mm * 1846mm Euro lll	KTA50 – M2 – 1600B \| 1600 BHP @ 1900 RPM	KTA50 – M2 – 1700 \| 1700 BHP @ 1800 RPM	KTA50 – M2 – 1800 \| 1800 BHP @ 1900 RPMM	KTA50 – M2 – 1875 \| 1875 BHP @ 1950 RPM
QSK19 2007 mm * 963 mm * 1880mm IMO Tier ll	QSK19 – M373 \| 500 HP @ 1800 RPM	QSK19-M447 \| 599 HP @ 1800 RPM	QSK19-M492 \| 660 HP @ 1800 RPM	QSK19-M559-I \| 750 HP @ 1800 RPM
	QSK19-M559-II \| 750 HP @ 1800 RPM	QSK19-M567 \| 760 HP @ 2100 RPM	QSK19-M597-I \| 800 HP @ 1800 RPM	QSK19-M597-II \| 800 HP @ 2100 RPM
	QKS19-M597-III \| 800 HP @ 2100 RPM
——END——

NTA855 1534mm * 781mm * 1355mm Euro ll – Euro Vl	N855 – DM240 \| 322 HP @ 1500 RPM	N855 – DM284 \| 381 HP @ 1500 RPM	N855 – DM287 \| 385 HP @ 1800 RPM	N855 – DM313 \| 420 HP @ 1800 RPM
	N855 – DM317 \| 425 HP @ 1500 RPM	NT855 – D(M)180 \| 241 HP @ 1500 RPM	NT855 – D(M)205 \| 275 HP @ 1500 RPM	NT855 – D(M)230 \| 308 HP @ 1500 RPM
	NTA855 – D(M)240 \| 322 HP @ 1500 RPM	NTA855 – D(M)264 \| 354 HP @ 1500 RPM	NTA855 – D(M)284 \| 381 HP @ 1500 RPM	NTA855 – D(M)287 \| 385 HP @ 1800 RPM
	NTA855 – D(M)306 \| 410 HP @ 1800 RPM	NTA855 – D(M)313 \| 420 HP @ 1800 RPM	NTA855 – D(M)317 \| 425 HP @ 1500 RPM
KTA19 1182 mm * 761 mm * 1127 mm Euro ll – Euro lll	KTA19 – D(M)336 \| 450 HP @ 1500 RPM	KTA19 – D(M)392 \| 525 HP @ 1800 RPM	KTA19 – D(M)403 \| 540 HP @ 1500 RPM	KTA19 – D(M)448 \| 600 HP @ 1500 RPM
KTA19 1182 mm * 761 mm * 1127 mm Euro ll – Euro lll	KTA19 – D(M)463 \| 620 HP @ 1800 RPM	KTA19 – D(M)507 \| 680 HP @ 1800 RPM
KTA38 1494 mm * 796 mm * 1228 mm Euro ll – Euro lll	K38 – DM746 \| 1000 HP @ 1500 RPM	K38 – DM821 \| 1100 HP @ 1800 RPM	K38 – DM880 \| 540 HP @ 1500 RPM	K38 – DM969 \| 600 HP @ 1500 RPM
	KT38 – D(M)560 \| 620 HP @ 1800 RPM	KT38 – D(M)679 \| 680 HP @ 1800 RPM	KTA38 – D(M)664 \| 890 HP @ 1500 RPM	KTA38 – D(M)768 \| 1030 HP @ 1800 RPM
	KTA38 – D(M)809 \| 1085 HP @ 1800 RPM	KTA38 – D(M)814 \| 1092 HP @ 1800 RPM	KTA38 – D(M)880 \| 1180 HP @ 1500 RPM	KTA38 – D(M)1007 \| 1350 HP @ 1800 RPM
KTA50 1400 mm * 900 mm * 1100 mm Euro lll	K50 – DM1097 \| 1470 HP @ 1500 RPM	K50 – DM1290 \| 1730 HP @ 1800 RPM
QSK19 2007 mm * 963 mm * 1880mm IMO Tier ll	QSK19 – D(M)433 \| 580 HP @ 1500 RPM	QSK19 – D(M)526 \| 705 HP @ 1500 RPM	QSK19 – D(M)563 \| 755 HP @ 1800 RPM	QSK19 – D(M)597 \| 800 HP @ 1800 RPM
——END——

MTA11 | 185 – 330 HP

NTA855 | 250 – 450 HP

QSNT | 500 HP

KTA19 | 525 – 700 HP

X15 | 375 – 535 HP

KTA38 | 780 HP

KTA50 | 1600 – 2682 HP

QSK19 | 760 – 815 HP

QSK23 | 760 – 801 HP

QSK38 | 1085 – 1600 HP

QSK50 | 1400 – 2500 HP

QSK78 | 3500 HP

QSK60 | 3004 HP

QSK95 | 4400 HP

QST30 | 1050 – 1200 HP

NTA855 | 224 – 373 KW

KTA19 | 336 – 664 KW

KTA38 | 522 – 1112 KW

KTA50 | 1227 – 1657 KW

QSK19 | 377 – 608 KW

QSK38 | 809 – 1193 KW

QSK50 | 1044 – 1864 KW

CQ38E丨855 – 1017 KW

MTA11 | 224 – 282 KW

NTA855 | 205 – 407 KW

KTA19 | 336 – 664 KW

KTA38 | 647 – 1220 KW

KTA50 | 1097 – 1650 KW

QSNT | 358 – 545 KW

QSK19 | 574 – 608 KW

QSK38 | 876 – 1063 KW

QSK50 | 1421 KW

NTA855 -M | 147 – 450 HP

KTA19 -M | 500 – 700 HP

KTA38 -M | 545 – 1200 HP

KTA50 -M | 1400 – 2200 HP

QSK19 -M | 500 – 800 HP

NTA855 – GM | 180 – 317 kW

KTA19 – GM | 336 – 507 kW

KTA38 – GM | 336 – 507 kW

KTA50 – GM | 560 – 1007 kW

QSK19 – GM | 433 – 597 KW

QSK60 -M

K19N | 343 – 450 KW

K38N | 800 – 1200 KW

K50N | 990 – 1100 KW

GKT19 | 300 KW

GKT38 | 500 KW

GTA855 | 240 KW

QSK19N | 343 KW

CCEC Engine Models

Find Engines by Series

Industrial Engine
