CCEC 6CT Fire Pump Engine Series

CCEC 6CT series fire pump engine is a 6-cylinders in line, 8.3 liters four-strokes engine with 114 mm bore and 135 mm stroke. CCEC 6CT series fire pump engine equipped with mechanical fuel pump and electronic governor. The prime power range for 1500 RPM of CCEC 6CT series fire pump engine is from 151 kW to 194 kW. The prime power range for 1800 RPM of CCEC 6CT series fire pump engine is from 151 kW to 194 kW.

CCEC fire pump engines have different configurations which have different power output, with code T in the engine model name means turbocharged engine, code TA in the engine model means turbocharge with water-air intercooler and code TAA in the engine model means turbocharge with air-air intercooler. As part of EMAC, PumpMac provides abundant premium pump-driven power pack options, WPT PTO, Advance gearbox and pump head, as well as customized water pump set. We also have a set of NFPA20 standard engine power pack accessories including air intake shut-off valve, DC contactor, engine control panel, jacket water heater etc. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

CCEC 6CT series electronic fire pump engine can reach upto EU Stage V emission standard, the number 30/40/50 are the emission standard mark of engine, which means engine emission standard are EU Stage III, IV, V. For different emission standard CCEC 6CT series electronic fire pump engine, the engine itself are the same, the major different of different emission standard engine models are the after-treatment system and ECU program, EMAC will keep updating products introduction page of different emission standard engine models, welcome to subscribe our website to get latest update information.

If you are in need of engine model that not available on our website for the moment, please contact EMAC sales team for technical details and related documents, our well trained sales and engineering team will help you with all products and techical documents available here at CCEC.

General Specifications of CCEC 6CT Series

Engine Type: 6 Cylinders, in Line
Displacement: 8.3 L
Rated Speed: 2900 – 3000 RPM
Rated Power / Speed: 166 – 183 kW @ 1500 – 3000 RPM
Peak Torque: N/A
Fuel System: Weifu PW2000 / RSV Mechanical Governor
Aspiration Method: TC & Water-Air Intercooler
Bore * Stroke: 114 mm * 135 mm
Basic Engine(L * W * H): 1159 mm * 734 mm * 1153 mm
Wet Weight: 604 kg
CCEC 6CT Fire Pump Engine Catalogue

Engine Model

Rated Power

Peak Torque

Engine Model

Rated Power

Peak Torque

6CTA8.3-C225 166 kW @ 3000 RPM N/A 6CTAA8.3-C248 183 kW @ 3000 RPM N/A
——END——

CCEC 6CT Series Fire Pump Engine

This list including all models of CCEC 6CT Series Fire Pump Engine.
Click here to find fire pump engines by type (Fuel System & Engine Speed).

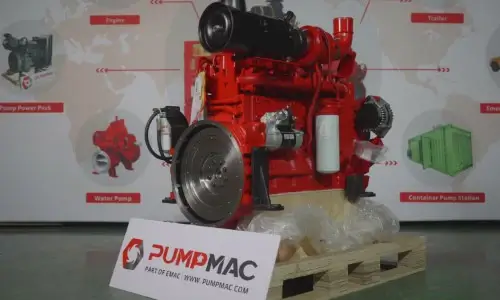

CCEC 6CTAA8.3-C248 Fire Pump Engine

CCEC 6CTAA8.3-C248 Fire Pump Engine

Rated Power: 183 kW @ 3000 RPM
Fuel Pump: Mechanical
Governor:RSV Mechanical
Aspiration: Turbocharged & A-A Intercooled
Emission Standard: N/A

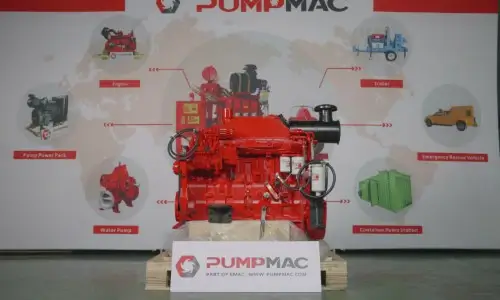

CCEC 6CTA8.3-C225 Fire Pump Engine

CCEC 6CTA8.3-C225 Fire Pump Engine

Rated Power: 166 kW @ 3000 RPM
Fuel Pump: Mechanical
Governor:RSV Mechanical
Aspiration: Turbocharged & Intercooled
Emission Standard: N/A
