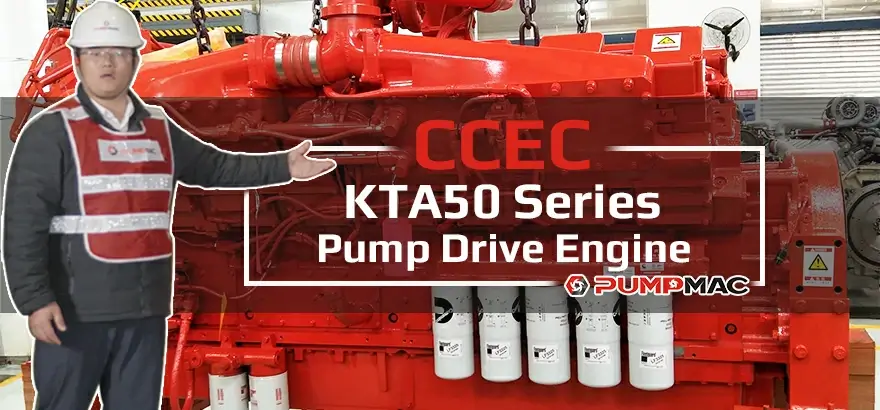

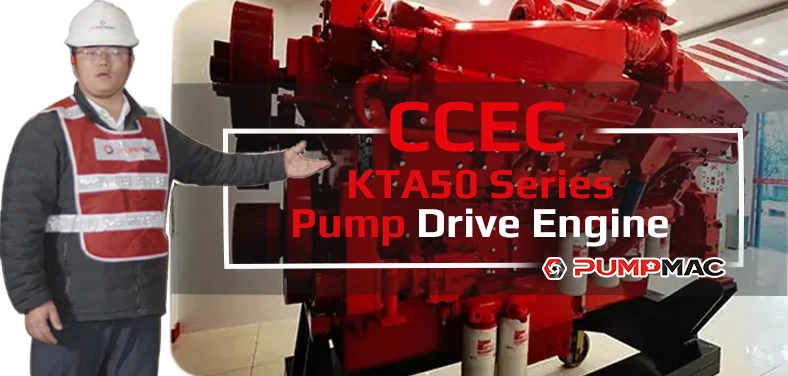

CCEC KTA50 Pump Drive Engine

CCEC  K50 Series Pump Drive Engine is V type 16-cylinder, 50.3 liters four-strokes engine with 159 mm (6.25 in) bore and 159 mm (6.25 in) stroke. K38 Series Pump Drive Engine equipped with CMS PT Fuel System, comes with turbocharger, and provide Low Temperature Aftercooled and Air-Air intercooler for customers to choose. The power range of CCEC K50 series pump drive engine is from 1645 HP to 2000 HP (1227 kW to 1491 kW). The torque range of the K50 Series Pump Drive Engine is 5544 N.m to 8790 N.m.

EMAC is a partner of CCEC for many years, we are a professional pump system solution supplier with many years of experience. We provide customers from all over the world with one-stop pump system solutions from pump system design to pump system supply, from installation to commissioning, and from after-sales. Providing sales service support for spare parts supply, EMAC is your reliable pump system partner, providing you with the best value for money and reliable system solutions.

Coming Soon

General Specifications of KTA50 Series

Engine Type:4 Cycle , 60° Vee , 16 Cylinder Diesel
Displacement:50 L
Rated Speed:1800 – 1900 RPM
Rated Power / Speed:1227 – 1657 kW @ 1800 – 1900 RPM
Peak Torque:5544 – 8790 N.M @ 1800 – 1900 RPM
Fuel System:CMI PT / Cummins PT
Aspiration Method:Turbocharged & Water-Air Intercooler
Bore * Stroke:159 mm * 159 mm
Basic Engine (L * W * H):2857 mm * 1415 mm * 1766 mm
Wet Weight:5662 kg
CCEC KTA50 Pump Engine Catalogue

Engine Model

Rated Power

Peak Torque

Engine Model

Rated Power

Peak Torque

KTA50-P16451227 kW (1645 HP) @ 1800 RPM6100 N.m @ 1800 RPMKTA50-P19151429 kW (1915 HP) @ 1800 RPM5544 N.m @ 1800 RPM
KTA50-P22201657 kW (2220 HP) @ 1800 RPM8790 N.m @ 1800 RPMKTTA50-20001491 kW (2000 HP) @ 1900 RPM7498 N.m @ 1900 RPM
——END——

CCEC KTA50 Series Pump Drive Engine

This list including all models of CCEC KTA50 Series Pump Drive Engine.
Click here to find pump engines by type (Fuel System & Engine Speed).

KTA50-P1645 Pump Engine

KTA50-P1645 Pump Engine

Rated Power: 1227 kW (1645 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA50-P1915 Pump Engine

KTA50-P1915 Pump Engine

Rated Power: 1429 kW (1915 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 14.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTA50-P2220 Pump Engine

KTA50-P2220 Pump Engine

Rated Power: 1657 kW (2220 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

KTTA50-2000 Pump Engine

KTTA50-2000 Pump Engine

Rated Power: 1491 kW (2000 HP) @ 1900 RPM
Fuel System: CMI PT
Compression Ratio: 13.8 : 1
Aspiration: Dual TC and Low Temp. Aftercooled
Emission Standard: N/A
