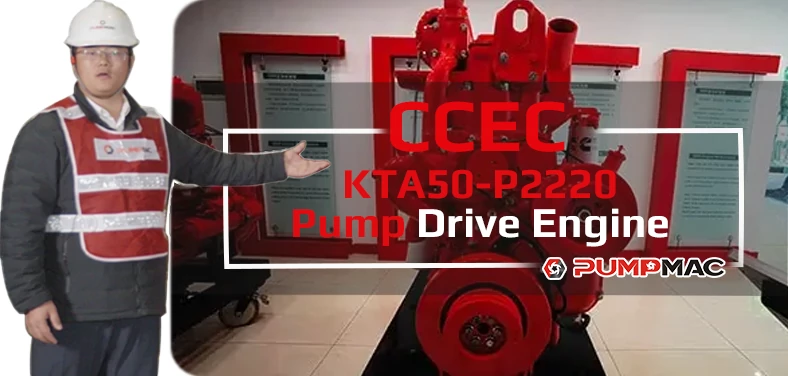

CCEC KTA50-P2220 Pump Engine
CCEC KTA50-P2220(1800 RPM) Pump Drive Engine is V type 16-cylinder, 50.3 liters four-strokes engine with 159 mm (6.25 in) bore and 159 mm (6.25 in) stroke.
KTA50-P2220 Pump Drive Engine equipped with PT Fuel System, comes with turbocharger and Low Temperature Aftercooled. The Maximum power at 1800 RPM of CCEC KTA50-P2220 pump drive engine is 2220 HP (1657 kW), The prime power at 1400 RPM of CCEC KTA50-P2220 pump drive engine is 1725 HP (1287 kW). The maximum torque of the engine at 1800 RPM is 8790 N.m.
EMAC is a partner of CCEC for many years, we are a professional pump system solution supplier with many years of experience.
We provide customers from all over the world with one-stop pump system solutions from pump system design to pump system supply, from installation to commissioning, and from after-sales. Providing sales service support for spare parts supply, EMAC is your reliable pump system partner, providing you with the best value for money and reliable system solutions.
Advantages of CCEC KTA50-P2220 Pump Engine
High quality alloy cast iron for the rigidity performance and lower vibration and noise. Wet and replaceable cylinder liners for better heat rejection performance and easier replacement.
4 valves per cylinder, Optimize the mixed level which lead to an excellent fuel consumption rate and emis-sion performance. High quality alloy cast iron, one cylinder one head, single camshaft and special de-signed outine for better reliability and durability.
CMS unique PT with fixture and Step Timing control for precise fuel injection make the fuel injection pressure above 120Mpa, which leads to an ex-cellent fuel consumption rate and emission performance. Check valve in fuel tube improve reliability.
Gear water pump and great flux channel design pro-vide effective cooling. Spin-in water filter makes the coolant clean and keeps it in normal acidity.
Advanced Holset turbocharger and after-cooled technology, pulse exhaust manifold reduce exhaust temperature, provide excellence fuel consumption and emission performance.
Technical Specifications
Basic Introduction of CCEC KTA50-P2220 Pump Engine
| Engine Model: | KTA50-P2220 |
| Engine Type: | 4 Cycle ,60° Vee , 16 Cylinder |
| Displacement: | 3067 in3 / 50.3 L |
| Rated Speed: | 1800 RPM |
| Aspiration Method: | Turbocharged & Water-Air Intercooler |
| Emission Standard: | N/A |
| Bore*Storke: | 6.25 in * 6.25 in / 159 mm * 159 mm |
| Packing Size(L*W*H): | 2857 mm * 1415 mm * 1766 mm |
| Wet Weight: | 12485 lb / 5662 kg |
| Lead Time: | 15-30 Working Days |
| Payment Terms: | T/T ,L/C |
Engine Model | Maxi. Rating | Aspiration | Curve & Datasheet | Compression Ratio |
| KTA50-P1645 | 1227 kW (1645 HP) @ 1800 RPM | Turbocharged & Water-Air Intercooler | FR-6250 | 13.9 : 1 |
| KTA50-P1915 | 1429 kW (1915 HP) @ 1800 RPM | Turbocharged & Water-Air Intercooler | FR-6243 (1 P / 2 L) ; FR-6351 (2 P / 2 L) | 14.9 : 1 |
| KTA50-P2220 | 1657 kW (2220 HP) @ 1800 RPM | Turbocharged & Water-Air Intercooler | FR-6259 | 13.9 : 1 |
| KTTA50-2000 | 1491 kW (2000 HP) @ 1900 RPM | Dual turbocharger and Low Temperature Aftercooled | FR-6356 | 13.8 : 1 |
| ——END—— | ||||
| General Infomation of CCEC Cummins KTA50 – P2220 Pump Engine | |||
| Engine Model | KTA50 – P2220 | Emission Standard | N / A |
| Max. Rating | 1657 kW (2220 HP) @ 1800 RPM | Displacement | 3067 in3 / 50.3 L |
| Curve & Datasheet | FR – 6259 | Bore * Storke | 6.25 in * 6.25 in / 159 mm * 159 mm |
| Compression Ratio | 13.9 : 1 | Dry Weight (Fan Hub to Flywheel Engine) | 11820 lb / 5360 kg |
| Type | 4 Cycle, 60° Vee, 16 Cylinder | Wet Weight (Fan Hub to Flywheel Engine) | 12485 lb / 5662 kg |
| Fuel System | Cummins PT | Moment of Inertia of Rotating Components (Including Flywheel FW6009) | 301 lbm.ft2 / 12.7 kg.m2 |
| Aspiration | Turbocharged & Water – Air Intercooler | C.G. Distance From Rear Face of Flywheel Housing (FH 6024) | 47.5 in / 1206 mm |
| Packing Size(L*W*H) | 2857 mm * 1415 mm * 1766 mm | Maximum Static Loading at Rear Main Bearing | 2000 lb / 908 kg |
| Configuration | D283022DX02 | Maximum Allowable Bending Moment at Rear Face of Block | 4500 lb.ft / 6100 N.m |
| C.G. Distance Above Crank Centerline | 11.0 in / 279 mm | Firing Order | 1 R – 6 L – 5 R – 2 L – 3 R – 4 L – 6 R – 1 L – 2 R – 5 L – 4 R – 3 L |
| CPL Code Revision | 2527 | ||
| Performance Data of CCEC Cummins KTA50 – P2220 Pump Engine | |||
| Idle | 725 ~ 775 RPM | Maximum No – Load Governed Speed | 2100 RPM |
| Estimated Free Field Sound Pressure Level of a Typical Generator Set — Excludes Exhaust Noise; at Rated Load and 7.5 m (24.6 ft) | 94.6 dBA | ||
| Exhaust Noise at 1 m Horizontally from Centerline of Exhaust Pipe Outlet Upwards at 45 | 130.0 dBA | ||
| Steady State Stability Band at any Constant Load | ± 0.25 % | ||
| ——END—— | |||
| Performance Data of CCEC Cummins KTA50 – P2220 Pump Engine | |||
| Full Power | Full Power | ||
| Governed Speed (RPM) | 1800 | Exhaust Gas Flow (CFM / L/s) | 10647 / 5025 |
| Power Output (HP / kW) | 2220 / 1657 | Exhaust Gas Temperatu ( ℃ / °F) | 959 / 515 |
| Brake Mean Effective Pressure (PSI / kPa) | 322 / 2221 | Air to Fuel Ratio (Ari : Fuel) | 25.2 : 1 |
| Piston Speed (ft/min / m/s) | 1870 / 9.5 | Radiated Heat to Ambient (BTU/min / kW) | 11374 / 200 |
| Friction Horsepower (HP / kW) | 225 / 168 | Heat Rejection to Ambient (BTU/min / kW) | 59143 / 1040 |
| Intake Air Flow (CFM / L/s) | 4397 / 2075 | ||
| Additional Engine Aftercooler Data of CCEC Cummins KTA50 – P2220 Pump Engine | |||
| 1 Pump / 2 Loop | |||
| Engine Jacket Coolant Flow at Stated Friction Head External to Engine — 4 PSI Friction Head (U.S.GPM / liter/s) | 430 / 27.1 | ||
| Engine Jacket Coolant Flow at Stated Friction Head External to Engine — Maximum Friction Head (U.S.GPM / liter/s) | 376 / 23.7 | ||
| Heat to be Rejected by Low Temperature Radiator (BTU/min / kW) | 35827 / 630 | ||
| Heat to be Rejected by Jacket Coolant Radiato (BTU/min / kW) | 26159 / 460 | ||
| Aftercooler Coolant Flow at Stated Friction Head External to Engine — 2 PSI Friction Head (U.S.GPM / liter/s) | 97 / 6.1 | ||
| Aftercooler Coolant Flow at Stated Friction Head External to Engine — Maximum Friction Head (U.S.GPM / liter/s) | 94 / 5.9 | ||
| System Technical Data of CCEC Cummins KTA50 – P2220 Pump Engine | ||
| Exhaust System | Maximum Back Pressure @ Standby Power Rating | 2.0 in.Hg / 51 mm Hg |
| Exhaust Pipe Size Normally Acceptable | N / A | |
| Air Induction System | Maximum Intake Air Restriction — With Dirty Filter Element @ Standby Power Rating | 25 in.H2O / 635 mm H2O |
| Maximum Intake Air Restriction — With Clean Filter Element @ Standby Power Rating | 15 in.H2O / 381 mm H2O | |
| Cooling System | Coolant Capacity — Engine Only | 37 U.S.Gal / 140 L |
| Coolant Capacity — Aftercoolers | 9 U.S.Gal / 34 L | |
| Maximum Static Head of Coolant Above Engine Crank Centerline | 60 ft. / 18.3 m | |
| Standard Thermostat (Modulating) Range | 180 – 200 °F / 82 – 93 ℃ | |
| Maximum Allowable Top Tank Temperature | 220 °F / 104 ℃ | |
| Target Coolant Inlet Temperature to Aftercoolers @ 77 °F (25 °C) Ambient | 130 °F / 55 ℃ | |
| Maximum Coolant Temperature to Aftercoolers | 160 °F / 71 ℃ | |
| Maximum Coolant Friction Head External to Engine — High Flow (Jacket) | 15 PSI / 103 kPa (1 P / 2 L) | |
| Maximum Coolant Friction Head External to Engine — Low Flow (Aftercooler) | 5 PSI / 35 kPa (1 P / 2 L) | |
| Thermostat Modulating Range — Low Flow (Aftercooler) (2P / 2L) W/HX6123 | 150 – 75 °F / 66 – 79 ℃ (1 P / 2 L) | |
| Minimum Pressure Cap (for Cooling Systems with Less than 2 m [6 ft.] Static Head) | 15 PSI / 103 kPa (1 P / 2 L) | |
| Lubrication System | Oil Pressure @ Idle | 20 PSI / 138 kPa |
| Oil Pressure @ Governed Speed | 50 – 70 PSI / 345 – 483 kPa | |
| Oil Flow at Rated Speed | 124 U.S.GPM / 469.4 L/min | |
| Maximum Oil Temperature | 250 °F / 121.0 ℃ | |
| Oil Pan Capacity ( Option OP6024) — High | 47 U.S.Gal / 178 L | |
| Oil Pan Capacity ( Option OP6024) — Low | 39 U.S.Gal / 148 L | |
| Total System Capacity (Including Bypass Filter) | 54 U.S.Gal / 204 L | |
| Fuel System | Maximum allowable Restriction to PT Fuel Pump — With Clean Fuel Filter | 4 in.Hg / 13.55 kPa |
| Maximum allowable Restriction to PT Fuel Pump — With Dirty Fuel Filter | 8 in.Hg / 27.09 kPa | |
| Maximum Allowable Head on Injector Return Line (Consisting of Friction Head and Static Head) | 6.5 in.Hg / 22 mm Hg | |
| Maximum Fuel Flow to Injection Pump | 183.0 U.S.Gal / 693 L | |
| Electrical System | Cranking Motor (Heavy Duty, Positive Engagement) | 24 V |
| Battary Rechange System, Negative Ground | 35 A | |
| Maximum Allowable Resistance of Starting Circuit | 0.002 Ω | |
| Minimum Recommended Battary Capacity — Cold Soak at 50°F(10℃) or Above | 1280 CCA | |
| Minimum Recommended Battary Capacity — Cold Soak at 32 ~ 50 °F(0 ~ 10 ℃) or Above | 1800 CCA | |
| Minimum Recommended Battary Capacity — Cold Soak at 0 ~ 32 °F(- 18 ~ 0 ℃) or Above | 1800 CCA | |
| ——END—— | ||
Scopes of Supply of CCEC KTA50-P2220 Pump Drive Engine | |||
| Air Intake System | 1. Air Intake Manifold | Exhuast System | 1. Exhuast Manifold |
| 2. Water-air Intercooler | 2. Turbocharger | ||
| 3. Air Filter | 3. Exhuast Elbow | ||
| Starting System | 1. Starter Motor | Charging System | 1. Charging Alternator |
| 2. Starter Rely | 2. N/A | ||
| Lubricating System | 1. Oil Pump | Fuel System | 1. Fuel Transfer Pump |
| 2. Oil Filter | 2. High-pressure Fuel Pump | ||
| 3. N/A | 3. Fuel Filter | ||
| Engine Shut-Down System | 1. Engine Fuel Shut-off Solenoid | Power Output System | 1. Flywheel |
| 2. N/A | 2. Standard Flywheel Housing | ||
| Control System | 1. Various Engine Speed Controller | Engine Mounting System | 1. Engine Mouting Bracket |
| Cooling System | 1. Water Pump | ||
| 2. Engine Fan | |||
| 3. Standard Radiator | |||
| ——END—— | |||
Optional Accessories of CCEC KTA50-P2220 Pump Engine | |||
| Air Intake System | 1. Air Intake Pre-heater | Exhuast System | 1. Muffler & Bellows |
| 2. Air Intake Pre-filter | 2. Flame Trap | ||
| 3. Air Filter Alarm System | 3. Spark Arrestor Type Muffler & Bellows | ||
| 4.N/A | 4. DPF System | ||
| Fuel System | 1. Coarse Filter | Engine Auiliary Accessories | 1. Hydraulic Oil Pump |
| 2. Fuel Pre-heater | 2. Hydraulic Cluch | ||
| Starting System | 1. Manual Magnetic DC Contactor | Control System | 1. Engine Monitor |
| 2. Dual Ears Flywheel Housing | 2.Engine Protection System with Alarm System | ||
| 3. Spring Starter Motor | 3. Machanical Engine Control Lever System | ||
| 4. Air Starter Motor | 4. Electric Engine Control Lever System | ||
| 5. Hydraulic Starter Motor | 5. N/A | ||
| 6. Manual Magnetic DC Contactor | 6. N/A | ||
| Power Output System | 1. Gear Reduction Gearbox | Cooling System | 1. Coolant Pre-heater |
| 2. Reverse Gear Box | 2. Jacket Water Heater | ||
| Lubricating System | 1. Oil Pre-heater | Engine Mounting System | 1. Shock Absorber Pad |
| ——END—— | |||
As part of EMAC, PumpMac focusing on water pump set related business, from pump drive engine, to WPT PTO, from complete engine power pack to complete water pump set, from NFPA20 standard fire fighting pump accessories to fire pump drive package, from explosion proof accessories to complete explosion-proof water pump set, PumpMac provides professional one-stop solution for everything customer needed for water pump set industry.
For more information of our pump drive power pack and complete water pump set products, you are welcome to visit PumpMac homepage: www.pumpmac.com
Modifiable Components of CCEC KTA50-P2220 Pump Engine | |||
| Air Intake System | 1. Installation Position of Air Filter | Charging System | 1. 12V Charging Alternator for 12V Electric System |
| 2. Upgrade to Heavy-duty Type Air Fitler | 2. Explosion-Proof Charging Alternator | ||
| 3. N/A | 3. Upgrading to Specified Brand and Speicifications of Charging Alternator | ||
| Exhuast System | 1. Can Modify Installation Position and Direction of Turbocharger | Lubricating System | 1. Oil Pan Position |
| 2. Water-cooled Exhuast Manifold | 2. Number of Dipstick | ||
| 3. Water-cooled Turbocharger | 3. Position of Dipstick can Choose from 6 Positions | ||
| 4. N/A | 4. Can modify oil filter to be remote installation | ||
| Fuel System | 1. Upgrade to Fuel Fitler that Integrated with Fuel Transfer Pump and Fuel Pre-hearter | Starting System | 1. 12V Starter Motor for 12V Electric System |
| 2. N/A | 2. Upgrading to Specified Brand and Speicifications of Starter Motor | ||
| Engine Shut-Down System | 1. 12V Solenoid for 12V Electric System | Power Output System | 1. Can Modify Size of Flywheel Housing and Flywheel |
| 2. Explosion-proof Solenoid | 2. Dual-ear Flywheel Housing (For twin-starter System) | ||
| 3. N/A | 3. Some of Models can Modify Flywheel Housing into PTO Integrated Type | ||
| 4. N/A | 4. Engine have Connecting Port of PTOs, that Able to Provide Power Output | ||
| Cooling System | 1. Can Modify Engine into Keel Cooling System | Engine Mounting System | 1. Can Modify Engine Mouting Bracket |
| Engine Auiliary Accessories | 1. Additional Auxiliary Systems can be Added for Special Applications | ||
| ——END—— | |||
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
