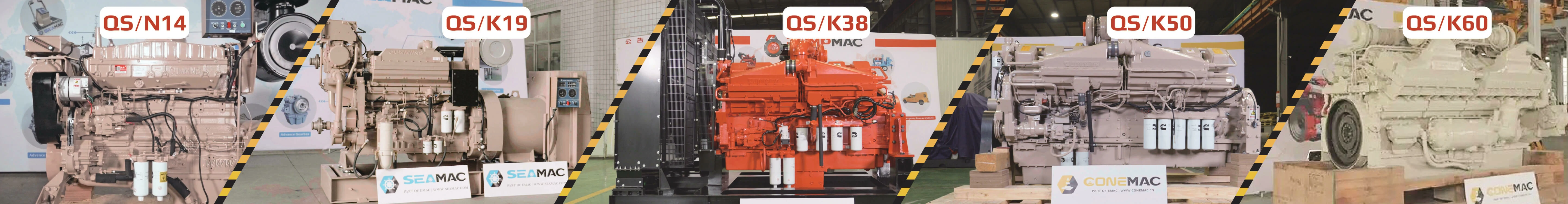

Full range of CCEC Products

CCEC is a 50:50 joint venture that producing N, K, M,QSK series mechanical and electronically controlled diesel engines for industrial, water pump drives, generator drives, marine applications, and natural gas drives.

A Power System Solution Provider

Based on standard CCEC engines, EMAC supplying complete power system that integrated with cooling, air intake, exhuast, control system, and other power system components such as clutch, transmission, axle, suspension, gearbox, shaft, propeller etc.

We Know What You Need!

With 12 years of power system supply experience and thousands of cases for different industry, EMAC can easily provides all kinds of highly customize products that meeting the requirements of different applications as well as related technical support and services.

A Trustworthy Chinese Company

At EMAC, we are not working as a job, but fighting as our life-time career, which we clearly know credibility is the foundation of our existence. Our reliability helping us continuously growing in the past 12 years, and we clearly knows only small streams can last long.

EMAC Group Limited was established in Hong Kong in 2010, aims to become a solid one-stop supplier in the power machinery industry. EMAC operating four overseas subsidiaries and owns 10 self-registered trademarks, our products are widely used in which covers energy, maritime, automotive, construction, railways and spare parts. Based on different types of DCEC engines, EMAC integrate other leading power system products into a complete power system.
With years of rich powertrain supply experience, EMAC can quickly understand and respond to customer needs, greatly reducing customer communication costs.
EMAC provides one-stop solutions covers from pre-design to components supply, from installation…
Read More
China CCEC is a professional manufacturer of heavy-duty and high-power engines with diesel engine manufacturing as its main business. It has modern production facilities and is equipped with advanced production and testing equipment. It mainly produces M11, NT/QSN, K19/QSK19, K38/QSK38, K50/QSK50 and other series of electromechanical control diesel engines, with displacements covering 10.8L, 14L, 18.9L, 38L, 50L, and power ranging from 145kW to 1343kW. It is a leading engine manufacturing base in China, and its products are widely used in construction machinery, mining machinery, fixed and mobile diesel generator sets, power stations, ship propulsion power groups and auxiliary power groups, pump power groups and other power groups.Read More
With the mission of “Better Power, Better World”, EMAC gathering a brilliant well-educated team, all of EMAC’s team members are have English background, from sales to engineers, from marketing team to administration team, our good English foundation ensuing the ability of smooth communication with all customers.
EMAC also gradually builing our global services network, from branch companies to joint ventures, from local sales representatives to local after-sales services partners, we continuously expanding a global network that to provide better communication and services for our customers.
Till 2021, EMAC have branch companies and joint venture in Thailand and Singapore with after-sales service ability in this two countries. And we have sales representatives in Turkey…
Read More
As a 12 years experience profesional one-stop power system provider, EMAC have unique excellent ability with supplying complete power system for all kinds of applications.
From automotive powertrain system to industrial engine power system, from water pump drive package to complete generator set, from marine propulsion system to marine power system, by working closely with global leading companies’ factories in China, EMAC gives high-end solutions with competitive prices.
EMAC is excellent solution provider with a professional and dedicated team, we developed our advanced management system based on our past experience, and EMAC is the innovator of detailed visulization services that have professional video for every single products we sell…
Read More
We cares your voice, from pre-sales communications, to sales communications, from after-sales complaints to customer review feedback, EMAC continuously collecting all kinds of qustions from customers, no matter questions on products, about business terms, marketing or manament related, helping EMAC and customers to know each other better and grow up together.
With the mission of “Better Power, Better World”, and the vision of “Help World Leverage the Power of China”, EMAC looking for business partners in each country, that can working both as branch company or joint venture, by leverage the rich resources here, business network and local service advantages in China, we hope can help all manufacturers in the world to improve their design ability, manufacturing capability, management…
Read More
ConeMac logo

Industrial | Reliable Industrial Power System-ConeMac

Committed to providing stable and reliable premiem power system for global construction machinery manufacturer partners, ConeMac is a sub-brand of the EMAC Group that focuses on construction equipment application. ConeMac’s ranges of products mainly inclduing marine construction engines power pack, construction equipment gearbox, gear reducer, explosion-proof engines, generator set and water pump set for mining, oil and gas field.

FIND MORE

PumpMac02

Pump | High-End Water Pump Drive Package-PumpMac

As part of EMAC, PumpMac focusing on water pump set related business, from water pump drive engine power pack to complete water pump set, from NFPA20 standard fire fighting pump accessories to fire pump drive package, from explosion proof accessories to complete explosion-proof water pump set, PumpMac provides professional one-stop solution for everything customer needed for water pump set industry.

FIND MORE

SinoGen logo

Energy | One-Stop Generator Set Solution-SinoGen

As part of EMAC, SinoGen focusing on generator set related business, from G-drive engine power pack to complete generator set, from open type generator set to silence type generator set, from super silent type generator set to mobile power trailer, from generator control panel to synchronizing cabinet, SinoGen provides professional one-stop solution for everything customer needed for generator set.

FIND MORE

SeaMac logo

Maritime | Marine Propulsion and Power System-SeaMac

Committed to providing reliable premium propulsion system and power system for all kinds of ships around the world, SeaMac is a sub-brand of EMAC group that focused on maritime application.
SeaMac’s ranges of products mainly inclduing marine main engine, marine gearbox, marine propellers, marine control lever system, marine auxiliary engine, marine generator set and emergency generator set.

FIND MORE

DuraMac 02

Gas Generator I Economical, Efficient and Clean Power Options- GasMac

GasMac is a sub-brand of EMAC that focuses on natural gas and biogas system solutions. The new Gas G-drive engine, specially designed system components, greatly improves the performance and reliability of CCEC powered gas generators, from natural gas generator sets to biogas power generation. Gensets, from pretreatment systems to filtration systems, GasMac provides professional one-stop solutions for gas generator sets.

FIND MORE

PartMac-logo

Parts | A Trustworthy Engine Parts Partner-PartMac

All of EMAC’s partners are facing big challenges with sourcing original spare parts in China. Committed to providing truthworthy and professional after-sales support and parts supply, PartMac is a sub-brand of EMAC group that focusing on parts business. Stick to original parts only, PartMac can’t give any solution on CHEAP PARTS, but you don’t need to worry about any quality issues with every single parts from PartMac.

FIND MORE

Find Engines by Series or Type

Below list is the engines classified by engine type, you can also find engines classified by series in the top menu.

Exploring the world of no-registration online casinos in Poland, this insightful guide provides an overview of the most seamless gambling experiences available. Without the need for filling out lengthy forms or undergoing time-consuming verification processes, players can enjoy their favorite games with greater privacy and speed. For a comprehensive list of the best no-registration casinos, game offerings, and the unique benefits they provide, including enhanced security and immediate play, visit https://citeulike.org/pl-pl/online-kasyna/bez-rejestracji/. This page is an essential resource for players looking for a hassle-free online casino experience in Poland.

Industrial Engine

MTA11 Industrial 185 – 451 HP
NTA855 Industrial 240 – 451 HP
QSNT Industrial 500 HP
KTA19 Industrial 451 – 700 HP
KTA38 Industrial 925 – 1101 HP
KTA50 Industrial 1600 – 2682 HP
QSK19 Industrial 506 – 815 HP
QSK23 Industrial 760 – 860 HP
QSK38 Industrial 1085 – 1600 HP
QSK50 Industrial 1400 – 2500 HP
QSK60 Industrial 2237 – 3004 HP
QSK78 Industrial 3500 HP
QSK95 Industrial 4400 HP
X15 Industrial 375 – 535 HP
QST30 Industrial 1050 – 1200 HP

Engine Model

Power/HP

0 600 1200 1800 2400 3000 3600 4200
Emission Srandard:Euro ⅠEuro ⅡEuro ⅢEuro ⅣEuro ⅤEuro ⅥEuro Ⅶ
CCEC Industrial Engine Catalogue
Series
Model

QSM11
N/A
Euro I – III


We are sorry to tell that mechanical M11 engine no longer in production, please choose QSM11 engine to replace M11 engine.
M11-G2 | 300HP @ 1500 RPM M11-C225A | 185 HP @ 1850 RPM M11-C225B | 225 HP @ 1800 RPM M11-C225C | 290 HP @ 1800 RPM
M11-C225D | 225 HP @ 2100 RPM M11-C225E | 275 HP @ 2100 RPM M11-C225H | 245 HP @ 2100 RPM M11-C250A | 244 HP @ 2100 RPM
M11-C250B | 249 HP @ 2100 RPM M11-C250E20 | 249 HP @ 2100 RPM M11-C270 | 270 HP @ 2100 RPM M11-C270E20 | 270 HP @ 2100 RPM
M11-C290 | 290 HP @ 2100 RPM M11-C290E20 | 290 HP @ 2100 RPM M11-C300A | 300 HP @ 2100 RPM M11-C300B | 290 HP @ 2100 RPM
M11-C300C | 300 HP @ 2100 RPM M11-C310A | 310 HP @ 2100 RPM M11-C310B | 310 HP @ 2100 RPM M11-C310E20 | 310 HP @ 2100 RPM
M11-C330 | 330 HP @ 2100 RPM M11-C330E20 | 330 HP @ 2100 RPM M11-C350 | 350 HP @ 2100 RPM M11-C350E20 | 350 HP @ 2100 RPM
M11-C380E20 | 381 HP @ 2100 RPM ISM305E20 | 300 HP @ 1900 RPM ISM305ESP22 | 300 HP @ 1900 RPM ISME335 30 | 330 HP @ 1900 RPM
ISM340E20 | 335 HP @ 1900 RPM ISME345 30 | 341 HP @ 1900 RPM ISM380 | 380 HP @ 1800 RPM ISM380E20 | 380 HP @ 1900 RPM
ISME385 30 | 381 HP @ 2100 RPM ISM405E20 | 400 HP @ 1900 RPM ISME420 30 | 410 HP @ 1900 RPM ISM440E20 | 426 HP @ 1900 RPM
ISM450 | 451 HP @ 1800 RPM

NTA855
N/A
Euro II

NT855-C250 | 251 HP @ 2100 RPM NT855-C280 | 240 HP @ 2000 RPM NT855-C280B | 280 HP @ 2100 RPM NTA855-C310 | 310 HP @ 2100 RPM
NTA855-C335 | 335 HP @ 2100 RPM NTA855-C360 | 345 HP @ 2000 RPM NTA855-C360B | 359 HP @ 2100 RPM NTA855-C400 | 345 HP @ 1900 RPM
NTA855-C400B | 400 HP @ 2100 RPM NTA855-C450 | 451 HP @ 2100 RPM

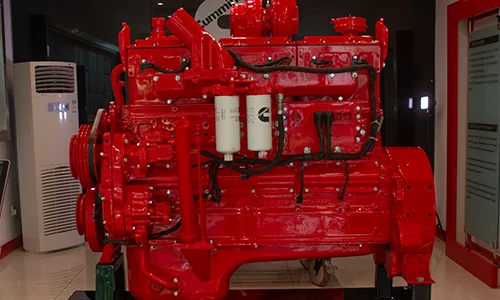

QSNT
N/A
Euro III

QSNT-C500 | 500 HP @ 2000 RPM

KTA19
N/A
Euro II

KT19-C450 | 451 HP @ 2200 RPM KTA19-C/P/L525 | 526 HP @ 2100 RPM KT19-C.L600 | 601 HP @ 2100 RPM KTTA19-C700 | 700 HP @ 2100 RPM

KTA38
N/A
Euro II

KT38-C925 | 925 HP @ 2100 RPM KTA38-C/P/L1050 | 1050 HP @ 2100 RPM KTA38-C1100 | 1100 HP @ 1800 RPM

KTA50
N/A
Euro II – III

KTA50-C1600 | 1600 HP @ 2100 RPM KTA50-C1600-II | 1601 HP @ 1900 RPM KTA50-C1800 | 1801 HP @ 1900 RPM KTA50-C2000 | 2682 HP @ 1900 RPM
KTTA50-C2000 | 1999 HP @ 1900 RPM KTA50-C2250 | 2252 HP @ 1900 RPM

QSK19
2857 mm * 1415 mm * 1766 mm
Euro II – III

QSK19-C506 | 506 HP @ 1800 RPM QSK19-C525 | 525 HP @ 2000 RPM QSK19-C560A | 560 HP @ 2000 RPM QSK19-C560B | 560 HP @ 2000 RPM
QSK19-C600 | 599 HP @ 2000 RPM QSK19-C675 | 675 HP @ 1800 RPM QSK19-C700A | 700 HP @ 2000 RPM QSK19-C700B | 700 HP @ 1800 RPM
QSK19-C760 | 760 HP @ 2100 RPM QSK19-C800 | 800 HP @ 2100 RPM QSK19-G3 | 815 HP @ 1800 RPM

QSK23
N/A
Euro II

QSK23-C760 | 760 HP @ 1800 RPM QSK23-C860 | 860 HP @ 2100 RPM

QSK38
2260 mm * 1339 mm * 2332 mm
Euro II

QSK38-C1085 | 1085 HP @ 1800 RPM QSK38-C1086 | 1086 HP @ 1800 RPM QSK38-C1200 | 1200 HP @ 1800 RPM QSK38-C1260 | 1260 HP @ 1800 RPM
QSK38-C1350 | 1530 HP @ 1800 RPM QSK23-C1530 | 1530 HP @ 1900 RPM QSK38-C1600 | 1600 HP @ 1900 RPM

QSK50
2857 mm * 1415 mm * 1766 mm
Euro II

QSK50-C1400 | 1400 HP @ 1800 RPM QSK50-C1500 | 1500 HP @ 1800 RPM QSK50-C1600 | 1600 HP @ 1800 RPM QSK50-C1675 | 1675 HP @ 1800 RPM
QSK50-C2500 | 2500 HP @ 1900 RPM

QSK60
N/A
Euro I – II

QSK60-C2237 | 2237 HP @ 1800 RPM QSK60-C2300 | 2300 HP @ 1900 RPM QSK60-C3000 | 3000 HP @ 1900 RPM

QSK78
N/A
Euro II

QSK78-C3500 | 3500 HP @ 1900 RPM

QSK95
N/A
Euro II

QSK95-C4400 | 4400 HP @ 1800 RPM

X15
N/A
Euro III

X15-C535 | 535 HP @ 2100 RPM QSX15-C375 | 375 HP @ 1800 RPM QSX15-C525 | 525 HP @ 2100 RPM QSX15-C530 | 530 HP @ 1800 RPM

QST30
N/A
Euro II

QST30-C1050 | 1050 HP @ 1900 RPM QST30-C1200 | 1200 HP @ 1800 RPM
——END——

MTA11 Industrial

MTA11 Industrial

Engine Type: 6 Cylinders
Displacement: 10.8 L
Bore x Strock: 125 mm * 147 mm
Rated Power: 185 HP to 330 HP
Peak Torque: 788 N.m to 1458 N.m

NTA855 Industrial

NTA855 Industrial

Engine Type: 6 Cylinders
Displacement: 14 L
Bore x Strock: 140 mm * 152 mm
Rated Power: 250 HP to 450 HP
Peak Torque: 1017 N.m to 1831 N.m

KTA19 Industrial

KTA19 Industrial

Engine Type: 6 Cylinders
Displacement: 18.9 L
Bore x Strock: 159 mm * 159 mm
Rated Power: 525 HP to 700 HP
Peak Torque: 1902 N.m to 2319 N.m

KTA38 Industrial

KTA38 Industrial

Engine Type: 12 Cylinders
Displacement:37.7 L
Bore x Strock: 159 mm * 159 mm
Rated Power: 780 HP
Peak Torque: 3089 N.m

QSK60 Industrial

QSK60 Industrial

Engine Type: 16 Cylinders
Displacement: 60.2 L
Bore x Strock: 159 mm * 190 mm
Rated Power: 2300 Hp
Peak Torque: 8620 N.m

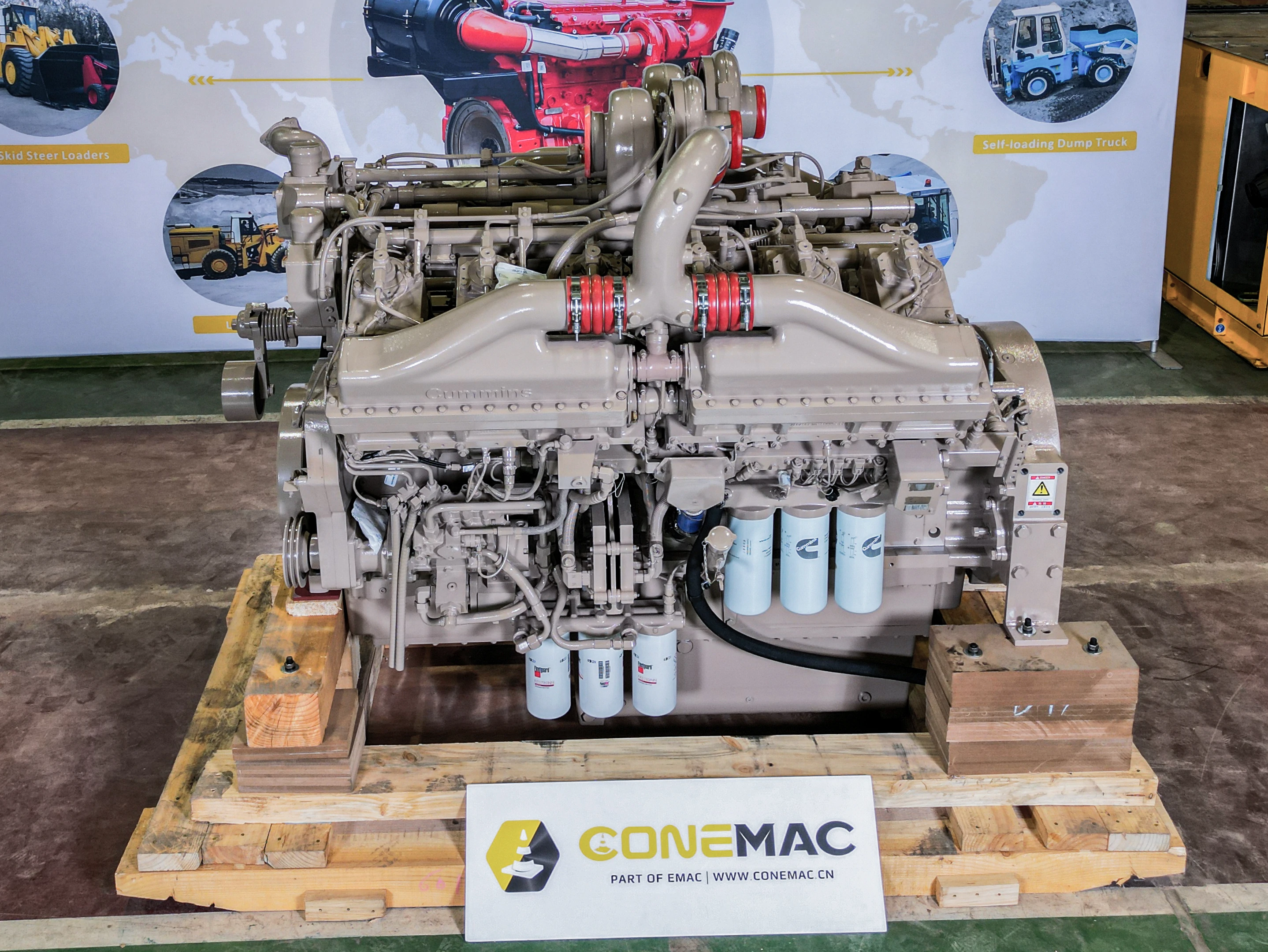

QSK38-C1086 Industrial Engine

QSK38-C1086 Industrial Engine

Power: 1086 HP @ 1800 RPM
Fuel System: Cummins MCRS
Compression Ratio: 15 : 1
Aspiration: Turbocharged Aftercooled
Emission Standard: U.S. EPA Tier 2

MTA11 E2 Industrial

MTA11 E2 Industrial

Engine Type: 4 Cylinders
Displacement: 11 L
Bore x Strock: 102 mm * 120 mm
Rated Power: 250 HP to 400 HP
Peak Torque: 1146 N.m to 200 N.m

QSNT E3 Industrial

QSNT E3 Industrial

Engine Type: 6 Cylinders
Displacement: 14 L
Bore x Strock: 127 mm * 147 mm
Rated Power: 500 HP
Peak Torque: 2100 N.m

KTA50 Industrial

KTA50 Industrial

Engine Type: 16 Cylinders
Displacement: 50.3 L
Bore x Strock: 159 mm * 159 mm
Rated Power: 1601 HP to 2682 HP
Peak Torque: 5071 N.m to 7865 N.m

QSK19 E2 Industrial

QSK19 E2 Industrial

Engine Type: 6 Cylinders
Displacement: 19 L
Bore x Strock: 158.75 mm * 158.75 mm
Rated Power: 760 HP to 815 HP
Peak Torque: 3084 N.m to 3086 N.m

QSK23 Industrial

QSK23 Industrial

Engine Type: 6 Cylinders
Displacement: 23.0 L
Bore x Strock: N/A
Rated Power: 760 HP to 801 HP
Peak Torque: 3468 N.m to 3776 N.m

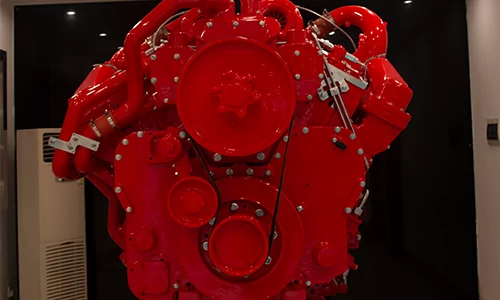

QSK38 Industrial

QSK38 Industrial

Engine Type: 12 Cylinders
Displacement: 37.7 L
Bore x Strock: 159 mm * 159 mm
Rated Power: 1085 HP to 1600 HP
Peak Torque: 4869 N.m to 6242 N.m

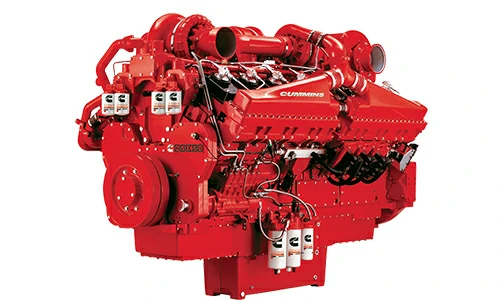

QSK50 Industrial

QSK50 Industrial

Engine Type: 16 Cylinders
Displacement: 50.3 L
Bore x Strock: 159 mm * 159 mm
Rated Power: 1400 HP to 2500 HP
Peak Torque: 6379 N.m to 9601 N.m

QSK60 E2 Industrial

QSK60 E2 Industrial

Engine Type: 16 Cylinders
Displacement: 60L
Bore x Strock: 159 mm * 190 mm
Rated Power: 3004 Hp
Peak Torque: 11257 N.m

 QSK78 E2 Industrial

 QSK78 E2 Industrial

Engine Type: N/A
Displacement: 77.6 L
Bore x Strock: N/A
Rated Power: 3500 Hp
Peak Torque: 13771 N.m

 QSK95 E2 Industrial

 QSK95 E2 Industrial

Engine Type: N/A
Displacement: 95.0L
Bore x Strock: 190 mm * 210 mm
Rated Power: 4400 Hp
Peak Torque: 17653 N.m

QSX15  Industrial

QSX15 Industrial

Engine Type: N/A
Displacement: 15.0L
Bore x Strock: N/A
Rated Power: 375Hp to 524 Hp
Peak Torque: 1825 N.m to 2440 N.m

X15  E3 Industrial

X15 E3 Industrial

Engine Type: N/A
Displacement: 14.9L
Bore x Strock: N/A
Rated Power: 535 Hp
Peak Torque: 2644 N.m

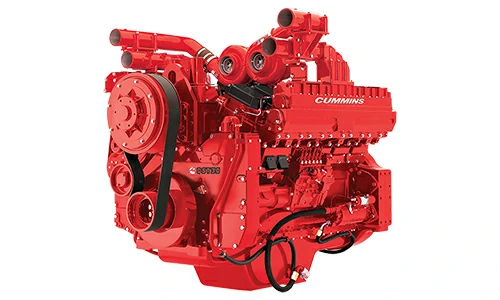

QST30 E2 Industrial

QST30 E2 Industrial

Engine Type: N/A
Displacement: 30.5L
Bore x Strock: N/A
Rated Power: 1050 Hp to1200Hp
Peak Torque: 4629 N.m to 5082 N.m

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Pump Drive Engine

NTA855 Pump 224 – 373 kW
KTA19 Pump 336 – 664 kW
KTA38 Pump 522 – 1112 kW
KTA50 Pump 1227 – 1657 kW
QSK38 Pump 855 kW

Engine Model

Power/kW

0 200 400 600 800 1000 1200 1400
Emission Srandard:Euro ⅠEuro ⅡEuro ⅢEuro ⅣEuro ⅤEuro ⅥEuro Ⅶ
CCEC Pump Engine Catalogue
Series
Model
NT855-P300 | 224 KW @1500 RPM NT855-P300B | 224 KW @1500 RPM NTA855-P360C | 268 KW @2100 RPM NTA855-P360B | 269 KW @1800 RPM
NT855-P360 | 269 KW @1800 RPM NTA855-P360 | 269 KW @2100 RPM NT855-P400 | 298 KW @1800 RPM NTA855-P400A | 298 KW @1500 RPM
NTA855-P400C | 298 KW @2100 RPM NTA855-P400B | 299 KW @1500 RPM NTA855-P450 | 336 KW @1800 RPM NTA855-P450B | 336 KW @2100 RPM
NTA855-P470 | 351 KW @1500 RPM NTA855-P470B | 351 KW @1500 RPM NTA855-P500 | 373 KW @1800 RPM NTA855-P500B | 373 KW @1800 RPM
KTA19
TC & Water-Air Intercooler
KTA19-P450 | 336 KW @2100 RPM KTA19-P495 | 369 KW @1500 RPM KTA19-P500A | 373 KW @1500 RPM KTA19-P500B | 373 KW @1800 RPM
KTA19-P525A | 392 KW @1800 RPM KTA19-P525B | 392 KW @2100 RPM KTA19-P600A | 448 KW @1500 RPM KTA19-P600B | 448 KW @1800 RPM
KTA19-C600 | 448 KW @2100 RPM KTA19-P755 | 504 KW @1800 RPM KTA19-P680 | 507 KW @1500 RPM KTA19-P700 | 522 KW @1800 RPM
KTAA19-C700 | 522 kw @2100 RPM KTAA19-P818B | 552 KW @1500 RPM KTA19-P750 | 559 KW @1800 RPM KTAA19-P673 | 570 KW @1500 RPM
KTAA19-P818 | 610 KW @1500 RPM KTAA19-P890 | 664 KW @1800 RPM
KTA38
Turbocharged
KT38-P700 | 522 KW @1800 RPM KT38-P780 | 582 KW @1800 RPM KT38-P830 | 619 KW @1500 RPM KTA38-P900 | 671 KW @1800 RPM
KT38-P980 | 731 KW @1500 RPM KTA38-P980B | 731 KW @1500 RPM KT38-P1000 | 746 KW @1800 RPM KTA38-P1080 | 813 KW @1800 RPM
KTA38-P1100 | 821 KW @1800 RPM KTA38-P1200 | 821 KW @1800 RPM KTA38-P1200A | 895 KW @1500 RPM KTA38-P1200B | 895 KW @1800 RPM
KTA38-P1250 | 933KW @1800 RPM KTA38-P1300 | 970 KW @1500 RPM KTA38-P1400 | 1045 KW @1800 RPM KTA38-P1400 | 1045 KW @1800 RPM
KTA38-P1490 | 1112 KW @1800 RPM
KTA50
TC & Water-Air Intercooler
KTA50-P1645 | 1227 KW @1800 RPM KTA50-P1915 | 1429 KW @1800 RPM KTTA50-2000 | 1491 KW @1900 RPM KTA50-P2220 | 1657 KW @1800 RPM
QSK38
Turbocharged, intercooled
QSK-CQ38E | 855 kW @1800 RPM
——END——

KTA38 PUMP

KTA38 PUMP

Engine Type: 12 Cylinders
Displacement: 37.7 L
Bore x Strock: 159 mm * 159 mm
Rated Power: 700 HP to 1490HP
Emission Standard: N/A

KTA50 PUMP

KTA50 PUMP

Engine Type: 16 Cylinder
Displacement: 50.3 L
Bore x Strock: 159 mm * 159 mm
Rated Power: 1645 HP to 2220 HP
Emission Standard: N/A

KTA19 PUMP

Engine Type: 6 Cylinder
Displacement: 18.9 L
Bore x Strock: 159 mm * 159 mm
Rated Power: 495 HP to 890 HP
Emission Standard: N/A

NTA855 PUMP

NTA855 PUMP

Engine Type: 6 Cylinder
Displacement: 14 L
Bore x Strock: 140 mm * 152 mm
Rated Power: 300 HP to 500 HP
Emission Standard: N/A

NTA855 PUMP

NTA855 PUMP

Engine Type: 6 Cylinder
Displacement: 14 L
Bore x Strock: 140 mm * 152 mm
Rated Power: 360 HP to 400 HP
Emission Standard: N/A

KTA50 PUMP

KTA50 PUMP

Engine Type: 16 Cylinder
Displacement: 50.3 L
Bore x Strock: 159 mm * 159 mm
Rated Power: 2000 HP
Emission Standard: N/A

KTA38 PUMP

KTA38 PUMP

Engine Type: 12 Cylinders
Displacement: 37.7 L
Bore x Strock: 159 mm * 159 mm
Rated Power: 700 HP to 1490HP
Emission Standard: N/A

KTA19 PUMP

KTA19 PUMP

Engine Type: 6 Cylinder
Displacement: 18.9 L
Bore x Strock: 159 mm * 159 mm
Rated Power: 450 HP to 700 HP
Emission Standard: N/A

QSK50 Pump

QSK50 Pump

Engine Type: 16 Cylinder
Displacement: 50.3 L
Bore x Strock: 159 mm * 159 mm
Rated Power: 1400 HP to 1600 HP
Emission Standard: N/A

QSK38 Pump

QSK38 Pump

Engine Type: 12 Cylinder
Displacement: 37.7 L
Bore x Strock: 159 mm * 159 mm
Rated Power: 1085 HP to 1530 HP
Emission Standard: Tier 2

QSK19 Pump

QSK19 Pump

Engine Type: 6 Cylinder
Displacement: 19 L
Bore x Strock: 158.75 mm * 158.75 mm
Rated Power: 506 HP to 700 HP
Emission Standard: N/A

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

G-Drive Engine

MTA11 G-Drive 224 – 282 kW
NTA855 G-Drive 205 – 407 kW
KTA19 G-Drive 336 – 600 kW
KTA38 G-Drive 560 – 1220 kW
KTA50 G-Drive 1097 – 1650 kW
QSNT G-Drive 358 – 545 kW
QSK19 G-Drive 402 – 667 kW
QSK38 G-Drive 876 – 1231 kW
QSK50 G-Drive 1421 kW

Engine Model

Power/kW

0 400 800 1200 1600 2000 2400 2800
Emission Srandard:Euro ⅠEuro ⅡEuro ⅢEuro ⅣEuro ⅤEuro ⅥEuro Ⅶ
CCEC G-Drive Engine Catalogue
Series
Model
MTA11-G2-A | 224 kW @ 1500 RPM MTA11-G2-B | 257 kW @ 1500 RPM MTA11-G2A | 234 kW @ 1500 RPM MTAA11-G3 | 282 kW @ 1500 RPM
NT855-G | 205 kW @ 1500 RPM NT855-GA | 231 kW @ 1500 RPM NTA855-G1-A | 240 kW @ 1500 RPM NTA855-G1-B | 287 kW @ 1500 RPM
NTA855-G1A | 264 kW @ 1500 RPM NTA855-G2A | 310 kW @ 1500 RPM NTA855-G1B | 284 kW @ 1500 RPM NTA855-G1B | 284 kW @ 1500 RPM
NTA855-G3 | 358 kW @ 1800 RPM NTA855-G4 | 317 kW @ 1500 RPM NTAA855-G7 | 343 kW @ 1500 RPM NTAA855-G7A | 300 HP @ 2200 RPM
KTA19-G2-A | 336 kW @ 1500 RPM KTA19-G2-B | 392 kW @ 1800 RPM KTA19-G3-A | 403 kW @ 1500 RPM KTA19-G3-B | 463 kW @ 1800 RPM
KTA19-G3A-A | 448 kW @1500 RPM KTA19-G3A-B | 507 kW @ 1800 RPM KTA19-G4-A | 448 kW @ 1500 RPM KTA19-G4-B | 507 kW @ 1800 RPM
KTA19-G8 | 575 kW @ 1500 RPM KTA19-G8A | 550 kW @ 1500 RPM KTA19-G8E | 500 kW @1500 RPM KTA19-G9A | 600 kW @ 1500 RPM
KTAA19-G5-A | 470 kW @ 1500 RPM KTAA19-G5-B | 533 kW @ 1800 RPM KTAA19-G6-A | 520 kW @1500 RPM KTAA19-G6-B | 831 kW @ 1800 RPM
KTAA19-G6A-A | 610 kW @ 1500 RPM KTAA19-G6A-B | 664 kW @ 1800 RPM KTAA19-G7-A | 610 kW @ 1500 RPM KTAA19-G7-B | 664 kW @ 1800 RPM
KT38-GA | 647 kW @ 1500 RPM KT38-G-A | 560 kW @ 1500 RPM KT38-G-B | 679 kW @ 1800 RPM KTA38-G1-A | 634 kW @ 1500 RPM
KTA38-G1-B | 769 kW @ 1800 RPM KTA38-G1B-A | 634 kW @ 1500 RPM KTA38-G1B-B | 769 kW @ 1800 RPM KTA38-G1E | 605 kW @ 1500 RPM
KTA38-G2-A | 664 kW @ 1500 RPM KTA38-G2-B |804 kW @ 1500 RPM KTA38-G2A-A | 813 kW @ 1500 RPM KTA38-G2A-B | 915 kW @ 1800 RPM
KTA38-G2B-A | 711 kW @ 1500 RPM KTA38-G2B-B | 830 kW @ 1500 RPM KTA38-G2E |715 kW @ 1500 RPM KTA38-G4| 1007 kW @ 1500 RPM
KTA38-G5 | 880 kW @ 1500 RPM KTA38-G5E | 825 kW @ 1500 RPM KTA38-G7E | 935 kW @ 1500 RPM KTA38-G9-A | 1195 kW @ 1500 RPM
KTA38-G9-B | 1220 kW @ 1500 RPM KTAA38-G9A | 1195 kW @ 1500 RPM KTA38-G9E | 990 kW @ 1500 RPM
KTA50-G3-A |1097 kW @ 1500 RPM KTA50-G3-B | 1220 kW @ 1500 RPM KTA50-G3E | 1210 kW @ 1500 RPM KTA50-G7E | 1210 kW @ 1500 RPM
KTA50-G8 | 1200 kW @ 1500 RPM KTA50-GS8 | 1725 kW @ 1500 RPM KTA50-G9 | 1384 kW @ 1800 RPM KTA50-G12-A | 1095 kW @ 1500 RPM
KTA50-G12-B | 1178 kW @ 1500 RPM KTA50-G12A-A | 1200 kW @ 1500 RPM KTA50-G12A-B | 1347 kW @ 1500 RPM KTA50-G15 | 1491 kW @ 1500 RPM
KTA50-G16 | 1200 kW @ 1500 RPM
QSNT-G3-A | 358 kW @ 1500 RPM QSNT-G3-B | 358 kW @ 1500 RPM QSNT-G4 | 407 kW @ 1500 RPM QSNT-G4X | 407 kW @ 1500 RPM
QSK19-G3-A |574 kW @ 1500 RPM QSK19-G3-B | 608 kW @ 1800 RPM QSK19-G4-A | 574 kW @ 1500 RPM QSK19-G4-B| 559 kW @ 1800 RPM
QSK19-G5 | 669 kW @ 1800 RPM QSK19-G11 | 500 kW @ 1500 RPM QSK19-G11X | 667 kW @ 1500 RPM QSK19-G12 | 670 kW @ 1500 RPM
QSK19-G13 | 406 kW @ 1500 RPM QSK19-G14| 362 kW @ 1500 RPM QSKTAA19-G3-NR2-A | 336 kW @ 1500 RPM QSKTAA19-G3-NR2-B | 670 kW @ 1500 RPM

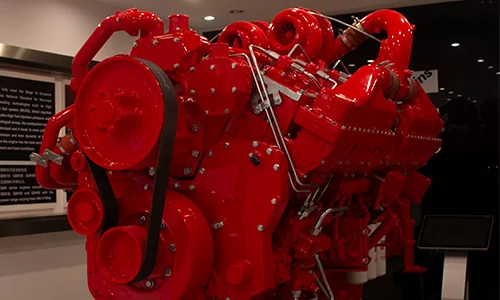

QSK38-G1 | 1063 kW @ 1500 RPM QSK38-G4 | 1230 kW @ 1800 RPM QSK38-G5-A |1107 kW @ 1500 RPM QSK38-G5-B | 1063 kW @ 1500 RPM
QSK50-G7 | 1063 kW @ 1500 RPM
——END——

KTA19 M-Governor

KTA19 M-Governor

Engine Type: 6 Cylinders
Bore x Strock: 159 mm * 159 mm
Displacement: 18.9 L
Rated Power: 328 kW to 575 kW
Emission Standard: N/A

KTA38 M-Governor

KTA38 M-Governor

Engine Type: 12 Cylinders
Bore x Strock: 159 mm * 159 mm
Displacement: 38 L
Rated Power: 615 kW to 1195 kW
Emission Standard: N/A

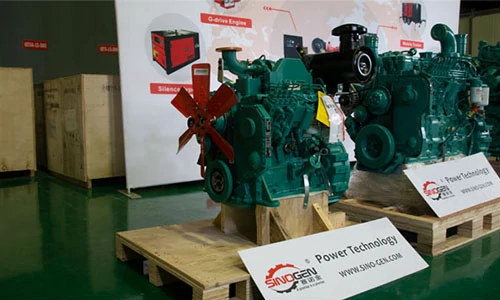

KTA50 M-Governor

KTA50 M-Governor

Engine Type: 12 Cylinders
Bore x Strock: 159 mm * 159 mm
Displacement: 50 L
Rated Power: 1100 kW to 1650 kW
Emission Standard: N/A

MTA11 M-Governor

MTA11 M-Governor

Engine Type: 6 Cylinders
Bore x Strock: 125 mm * 147 mm
Displacement: 10.8 L
Rated Power: 224 kW to 282 kW
Emission Standard: N/A

NTA855 M-Governor

NTA855 M-Governor

Engine Type: 6 Cylinders
Bore x Strock: 140 mm * 152 mm
Displacement: 14 L
Rated Power: 205 kW to 407 kW
Emission Standard: N/A

NTA855 E-Governor

NTA855 E-Governor

Engine Type: 6 Cylinders
Bore x Strock: 140 mm * 152 mm
Displacement: 14 L
Rated Power: 225 kW
Emission Standard: N/A

QSK19 E-Governor

QSK19 E-Governor

Engine Type: 6 Cylinders
Bore x Strock: 159 mm * 159 mm
Displacement: 19 L
Rated Power: 335 kW to 669 kW
Emission Standard: N/A

QSK38 E-Governor

QSK38 E-Governor

Engine Type: 12 Cylinders
Bore x Strock: 159 mm * 159 mm
Displacement: 50.3 L
Rated Power: 876 kW to 1107 kW
Emission Standard: U.S. EPA Tier 2

QSK50 E-Governor

QSK50 E-Governor

Engine Type: 16 Cylinders
Bore x Strock: 159 mm * 159 mm
Displacement: 50.3 L
Rated Power: 1421 kW
Emission Standard: U.S. EPA Tier 2

QSNT E-Governor

QSNT E-Governor

Engine Type: 6 Cylinders
Bore x Strock: 140 mm * 152 mm
Displacement: 14 L
Rated Power: 358 kW to 545 kW
Emission Standard: N/A

KTA50 M-Governor

KTA50 M-Governor

Engine Type: 16 Cylinders
Bore x Strock: 159 mm * 159 mm
Displacement: 50.3 L
Rated Power: 900 kW to 1656 kW
Emission Standard: N/A

MTA11 M-Governor

MTA11 M-Governor

Engine Type: 6 Cylinders
Bore x Strock: 125 mm * 147 mm
Displacement: 10.8 L
Rated Power: 283 kW
Emission Standard: N/A

NTA855 M-Governor

NTA855 M-Governor

Engine Type: 6 Cylinders
Bore x Strock: 140 mm * 159 mm
Displacement: 14 L
Rated Power: 257 kW to 399 kW
Emission Standard: N/A

QSK19 E-Governor

QSK19 E-Governor

Engine Type: 6 Cylinders
Bore x Strock: 159 mm * 159 mm
Displacement: 19 L
Rated Power: 459 kW to 669 kW
Emission Standard: N/A

QSK38 E-Governor

QSK38 E-Governor

Engine Type: 12 Cylinders
Bore x Strock: 159 mm * 159 mm
Displacement: 37.7 L
Rated Power: 891 kW to 1279 kW
Emission Standard: U.S. EPA Tier 2

Marine Engine

NTA855 Marine Main 147 – 450 HP
KTA19 Marine Main 425 – 700 HP
KTA38 Marine Main 545 – 1200 HP
KTA50 Marine Main 1400 – 2200 HP
QSK19 Marine Main 500 – 800 HP
NTA855 Marine Auxiliary 180 – 317 kW
KTA19 Marine Auxiliary 336 – 507 kW
KTA38 Marine Auxiliary 560 – 1007 kW
KTA50 Marine Auxiliary 1097 – 1290 kW
QSK19 Marine Auxiliary 433 – 597 kW

Engine Model

Power/HP & kW

0 400 800 1200 1600 2000 2400 2800
Emission Srandard:Euro ⅠEuro ⅡEuro ⅢEuro ⅣEuro ⅤEuro ⅥEuro Ⅶ
CCEC Marine Main Engine Catalogue
Series
Model
NT855 – M147 | 147 HP @ 1600 RPM NT855 – M200 | 200 HP @ 1800 RPM NT855 – M220 | 220 HP @ 1800 RPM NT855 – M240 | 240 HP @ 1800 RPM
NT855 – M250 | 250 HP @ 1800 RPM NT855 – M270 | 270 HP @ 1800 RPM NT855 – M300 | 300 HP @ 1800 RPM NTA855 – M350 | 350 HP @ 1800 RPM
NTA855 – M400A | 400 HP @ 1800 RPM NTA855 – M400B | 400 HP @ 2100 RPM NTA855 – M450 | 450 HP @ 1800 RPM
K19 – M500 | 500 HP @ 1800 RPM K19 – M550 | 550 HP @ 2100 RPM K19 – M600 | 600 HP @ 1800 RPM K19 – M640 | 640 HP @ 1800 RPM
KT19 – M425 | 425 HP @ 1800 RPM KTA19 – M470 | 470 HP @ 1800 RPM KTA19 – M500 | 500 HP @ 1800 RPM KTA19 – M550 | 550 HP @ 2100 RPM
KTA19 – M3 – 500 | 500 BHP @ 1800 RPM KTA19 – M600 | 600 BHP @ 1800 RPM KTA19 – M640 | 640 BHP @ 1800 RPM KTA19 – M700 | 700 BHP @ 2100 RPM
K38 – M800 | 800 BHP @ 1800 RPM K38 – M900 | 900 BHP @ 1600 RPM K38 – M1000 | 1000 BHP @ 1800 RPM K38 – M1100 | 1100 BHP @ 1800 RPM
KT38 – M600 | 600 HP @ 1800 RPM KT38 – M780 | 780 HP @ 1800 RPM KT38 – M800 | 800 HP @ 1800 RPM KTA38 – M900 | 900 HP @ 1800 RPM
KTA38 – M0 – 850 | 850 BHP @ 1800 RPM KTA38 – M1 – 1000 | 1000 HP @ 1800 RPM KTA38 – M2 – 545 | 545 HP @ 1800 RPM KTA38 – M2 – 1200A | 1200 HP @ 1800 RPM
KTA38-M2-1200B | 1200 BHP @ 1800 RPM
K50 – M2000 | 2000 BHP @ 1800 RPM K50 – M2200 | 2200 BHP @ 1900 RPM KTA50 – M2 – 1400 | 1400 BHP @ 1600 RPM KTA50 – M2 – 1600A | 1600 BHP @ 1900 RPM
KTA50 – M2 – 1600B | 1600 BHP @ 1900 RPM KTA50 – M2 – 1700 | 1700 BHP @ 1800 RPM KTA50 – M2 – 1800 | 1800 BHP @ 1900 RPMM KTA50 – M2 – 1875 | 1875 BHP @ 1950 RPM
QSK19 – M373 | 500 HP @ 1800 RPM QSK19-M447 | 599 HP @ 1800 RPM QSK19-M492 | 660 HP @ 1800 RPM QSK19-M559-I | 750 HP @ 1800 RPM
QSK19-M559-II | 750 HP @ 1800 RPM QSK19-M567 | 760 HP @ 2100 RPM QSK19-M597-I | 800 HP @ 1800 RPM QSK19-M597-II | 800 HP @ 2100 RPM
QKS19-M597-III | 800 HP @ 2100 RPM
——END——
CCEC Marine Auxiliary Engine Catalogue
Series
Model



N855 – DM240 | 322 HP @ 1500 RPM N855 – DM284 | 381 HP @ 1500 RPM N855 – DM287 | 385 HP @ 1800 RPM N855 – DM313 | 420 HP @ 1800 RPM
N855 – DM317 | 425 HP @ 1500 RPM NT855 – D(M)180 | 241 HP @ 1500 RPM NT855 – D(M)205 | 275 HP @ 1500 RPM NT855 – D(M)230 | 308 HP @ 1500 RPM
NTA855 – D(M)240 | 322 HP @ 1500 RPM NTA855 – D(M)264 | 354 HP @ 1500 RPM NTA855 – D(M)284 | 381 HP @ 1500 RPM NTA855 – D(M)287 | 385 HP @ 1800 RPM
NTA855 – D(M)306 | 410 HP @ 1800 RPM NTA855 – D(M)313 | 420 HP @ 1800 RPM NTA855 – D(M)317 | 425 HP @ 1500 RPM
KTA19 – D(M)336 | 450 HP @ 1500 RPM KTA19 – D(M)392 | 525 HP @ 1800 RPM KTA19 – D(M)403 | 540 HP @ 1500 RPM KTA19 – D(M)448 | 600 HP @ 1500 RPM
KTA19 – D(M)463 | 620 HP @ 1800 RPM KTA19 – D(M)507 | 680 HP @ 1800 RPM
K38 – DM746 | 1000 HP @ 1500 RPM K38 – DM821 | 1100 HP @ 1800 RPM K38 – DM880 | 540 HP @ 1500 RPM K38 – DM969 | 600 HP @ 1500 RPM
KT38 – D(M)560 | 620 HP @ 1800 RPM KT38 – D(M)679 | 680 HP @ 1800 RPM KTA38 – D(M)664 | 890 HP @ 1500 RPM KTA38 – D(M)768 | 1030 HP @ 1800 RPM
KTA38 – D(M)809 | 1085 HP @ 1800 RPM KTA38 – D(M)814 | 1092 HP @ 1800 RPM KTA38 – D(M)880 | 1180 HP @ 1500 RPM KTA38 – D(M)1007 | 1350 HP @ 1800 RPM
K50 – DM1097 | 1470 HP @ 1500 RPM K50 – DM1290 | 1730 HP @ 1800 RPM
QSK19 – D(M)433 | 580 HP @ 1500 RPM QSK19 – D(M)526 | 705 HP @ 1500 RPM QSK19 – D(M)563 | 755 HP @ 1800 RPM QSK19 – D(M)597 | 800 HP @ 1800 RPM
——END——

KTA50 Marine

KTA50 Marine

Engine Type: 16 Cylinders
Displacement: 50.2 L
Bore x Strock: 159 mm * 159 mm
Rated Power: 1400 HP to 2200 HP
Emission Standard: N/A

KTA50 Marine

KTA38 Marine

Engine Type: 12 Cylinders
Displacement: 37.9 L
Bore x Strock: 159 mm * 159 mm
Rated Power: 545 HP to 1200 HP
Emission Standard: N/A

KTA19 Marine

KTA19 Marine

Engine Type: 6 Cylinders
Displacement: 19 L
Bore x Strock: 159 mm * 159 mm
Rated Power: 500 HP to 700 HP
Emission Standard: N/A

NTA855 Marine

NTA855 Marine

Engine Type: 6 Cylinders
Displacement: 14 L
Bore x Strock: 140 mm * 152 mm
Rated Power: 147 HP to 450 HP
Emission Standard: N/A

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

KTA50 Auxiliary

KTA50 Auxiliary

Engine Type: 16 Cylinders
Displacement: 50 L
Bore x Strock: 159 mm * 159 mm
Rated Power: 1097 kW to 1290 kW
Emission Standard: IMO Tier 2/C1

KTA38 Auxiliary

KTA38 Auxiliary

Engine Type: 12 Cylinders
Displacement: 38 L
Bore x Strock: 159 mm * 159 mm
Rated Power: 560 kW to 1007 kW
Emission Standard: N/A

KTA19 Auxiliary

KTA19 Auxiliary

Engine Type: 6 Cylinders
Displacement: 19 L
Bore x Strock: 159 mm * 159 mm
Rated Power: 336 kW to 507 kW
Emission Standard: IMO Tier 2/C1

NTA855 Auxiliary

NTA855 Auxiliary

Engine Type: 6 Cylinders
Displacement: 14 L
Bore x Strock: 140 mm * 152 mm
Rated Power: 180 kW to 317 kW
Emission Standard: IMO Tier 2

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Gas G-Drive Engine

K19N Gas G-Drive 343–450 kW
K38N Gas G-Drive 560–900 kW
K50N Gas G-Drive 1100–1250 kW
GKT19 Gas G-Drive 300 kW
GKT38 Gas G-Drive 500 kW
GTA855 Gas G-Drive 240 kW
QSK19N Gas G-Drive 343 kW

Engine Model

Power/kW

0 200 400 600 800 1000 1200 1400
Emission Srandard:Euro ⅠEuro ⅡEuro ⅢEuro ⅣEuro ⅤEuro ⅥEuro Ⅶ

GTA855 M-Gonernor

Engine Type: 6 Cylinders
Bore x Strock: 159 mm * 159 mm
Displacement: 14 L
Rated Power: 240 kW
Emission Standard: N/A

GKT38 M-Gonernor

Engine Type: 12 Cylinders
Bore x Strock: 159 mm * 159 mm
Displacement: 37.7 L
Rated Power: 550 kW
Emission Standard: N/A

GKT19 M-Gonernor

Engine Type: 6 Cylinders
Bore x Strock: 159 mm * 159 mm
Displacement: 18.9 L
Rated Power: 300 kW
Emission Standard: N/A

QSK19N E-Gonernor

QSK19N E-Gonernor

Engine Type: 6 Cylinders
Bore x Strock: 159 mm * 159 mm
Displacement: 19 L
Rated Power: 343 kW
Emission Standard: N/A

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Engine Parts

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Years of History

Types of Application

Projects

Serviced Clients

Customer Review

Global Activity

Subscribe To Our Newsletter

Subscribe To Our Newsletter

Subscribe to get the latest updates from www.ccec-engine.com

You have Successfully Subscribed!

Pin It on Pinterest
