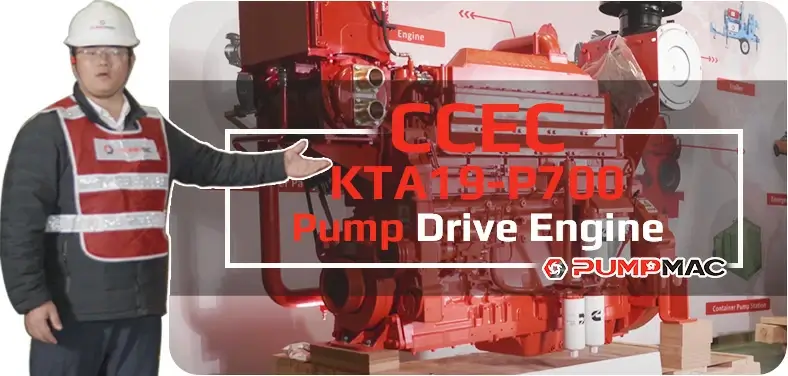

CCEC KTA19-P700 Pump Engine

CCEC KTA19-P700(1800 RPM) Pump Drive Engine is a 6-cylinder inline, 18.9 liters four-strokes engine with 159 mm (6.25 in) bore and 159 mm (6.25 in) stroke. KTA19-P700 Pump Drive Engine equipped with PT Fuel System, comes with turbocharger and Water-Air intercooler. The Maximum power at 1800 RPM of CCEC KTA19-P700 pump drive engine is 700 HP (522 kW), The maximum torque of the engine at 1400 RPM is 3223 N.m.

EMAC is a partner of CCEC for many years, we are a professional pump system solution supplier with many years of experience. We provide customers from all over the world with one-stop pump system solutions from pump system design to pump system supply, from installation to commissioning, and from after-sales. Providing sales service support for spare parts supply, EMAC is your reliable pump system partner, providing you with the best value for money and reliable system solutions.

1. Lower oil consumptionExtended strokethe expansion of the combustion gas more fully, Increase effective efficiency output, the economy is better.
2. Strong poweradvanced 4 air valves structure, greater horsepower, air burning more thoroughly, while making low speed torque increase, quicken response speedily, climb strongly.
3. Excellent reliability, with compulsive cold cut articulated pistons, Can bear extreme high mechanical load and heat load, Strength can be comparable with heavy engine.
4. Better emissions, Decorate injector and symmetrical combustion chamber in center, make the cylinder is more homogeneous mixture, burning more fully, lower emissions.
5. Super life, 30% engines 800,000 km without overhaul.
6. Excellence power, Clean burning, use the advanced lean-burn closed loop electronic control system.
7. Excellent cold start performance, equipped with air suction electric preheater and 7.8 kw power starter, completely improve the cold start performance of the engine. Through the arctic village-MoHe of China-36°C extreme low temperature validation.

Technical Specifications

Basic Introduction of CCEC KTA19-P700 Pump Engine

Engine Model:KTA19-P700
Engine Type:6 Cylinders
Displacement:1150 in3  / 18.9 L
Rated Speed:1800 RPM
Aspiration Method:Turbocharged & Water-Air Intercooler
Emission Standard:N/A
Bore*Storke:6.25 in * 6.25 in / 159 mm * 159 mm
Packing Size(L*W*H):2142 mm * 1067 mm * 1733 mm
Wet Weight:1699 kg
Lead Time:15-30 Working Days
Payment Terms:T/T ,L/C
CCEC Pump Engine 620×350 px-6

Engine Model

Rated Power

Aspiration

Curve & Datasheet

Compression Ratio

Fuel System

KTA19-P450336 kW (450 HP) @ 2100 RPMTurbocharged & Water-Air Intercooler C-4206-B15.5 : 1PT-STC
KTA19-P495369 kW (495 HP) @ 1500 RPMTurbocharged & Water-Air IntercoolerFR – 412513.9:1CMS PT
KTA19-P500A373 kW (500 HP) @ 1500 RPMTurbocharged & Water-Air IntercoolerC-43214.5:1PT-STC
KTA19-P500B373 kW (500 HP) @ 1800 RPMTurbocharged & Water-Air IntercoolerC-42314.5:1PT-STC
KTA19-P525A392 kW (525 HP) @ 1800 RPMTurbocharged & Water-Air IntercoolerN/A14.5 : 1PT-STC
KTA19-P525B392 kW (525 HP) @ 2100 RPMTurbocharged & Water-Air IntercoolerC-4205-C15.5 : 1PT-STC
KTA19-P600A448 kW (600 HP) @ 1500 RPMTurbocharged & Water-Air IntercoolerC-43313.9 : 1CMS PT
KTA19-P600B448 kW (600 HP) @ 1800 RPMTurbocharged & Water-Air IntercoolerFR470613.9 : 1PT-STC
KTA19-C600448 kW (600 HP) @ 2100 RPMTurbocharged & Water-Air IntercoolerC-4129-C15.5 : 1PT-STC
KTA19-P680507 kW (680 HP) @ 1500 RPMTurbocharged & Water-Air IntercoolerFR13.9 : 1PT-STC
KTA19-P700522 kW (700 HP) @ 1800 RPMTurbocharged & Water-Air IntercoolerC-43713.9 : 1CMS PT
KTA19-P750559 kW (750 HP) @ 1800 RPMTurbocharged & Water-Air IntercoolerFR-467813.9 : 1CMS PT
KTA19-P755563 kW (755 HP) @ 1800 RPMTurbocharged & Water-Air IntercoolerFR-421313.9 : 1CMS PT
KTAA19-P673502 kW (673 HP) @ 1500 RPMTurbocharged & Air-Air IntercoolerFR459613.9 : 1CMS PT
KTAA19-C700522 kW (700 HP) @ 2100 RPMTurbocharged & Air-Air IntercoolerP-4524-BN/AN/A
KTAA19-P818610 kW (818 HP) @ 1500 RPMTurbocharged & Air-Air IntercoolerFR459713.9 : 1PT-STC
KTAA19-P890664 kW (890 HP) @ 1800 RPMTurbocharged & Air-Air IntercoolerFR-37013.9 : 1CMS PT
——END——

General Infomation of CCEC KTA19-P700 Pump Engine

Engine ModelKTA19-P700Emission StandardN/A
Maxi. Rating522 kW (700 HP) @ 1800 RPMPeak Torque3223 N.m @ 1400 RPM
Curve & DatasheetC-437Displacement1150 in3  / 18.9 L
Compression Ratio13.9 : 1Bore*Storke6.25  in * 6.25 in / 159 mm * 159 mm
Type4 Cycle , In-line , 6 CylinderDry Weight (Fan Hub to Flywheel Engine)3600 lb / 1633 kg
Fuel SystemCMS PTWet Weight(Fan Hub to Flywheel Engine)3745 lb / 1699 kg
AspirationTurbocharged & Water-Air IntercoolerMoment of Inertia of Rotating Components (Excluding Flywheel)43.2 lbm.ft2 / 1.82 kg.m2
Packing Size(L*W*H)2142 mm * 1067 mm * 1733 mmC.G. Distance From Rear Face of Block (Engine Only)22.5 in / 572 mm
ConfigurationD193029CX02C.G. Distance Above Crank Centerline (Engine Only)9.4 in / 239 mm
CPL Code Revision1457Maximum Allowable Bending Moment at Rear Face of Block1000 lb.ft / 1356 N.m
Firing Order1-5-3-6-2-4Moment of Inertia About Roll Axis1876 lb.ft2 / 79 kg·m2

Performance Data of CCEC KTA19-P700 Pump Engine

Idle675 RPMCrankshaft Thrust Bearing Load — Maximum Continuous750 lb / 3336 N
Maximum No-Load Governed Speed2100 RPMMaximum Allowable Power From Front of CrankshaftN/A
Crankshaft Thrust Bearing Load — Maximum Intermittent1500 lb / 6672 NMaximum Allowable Power From Accessory Drive8 HP / 6 kW
——END——

Performance Data of CCEC KTA19-P700 Pump Engine

Full PowerFull Power
Engine Speed1800  RPMFriction Horsepower85 HP / 63 kW
Gross Power Output700  HP / 552 kWIntake Air Flow1370 CFM / 647 L/s
Torque2042 lb.ft / 2769 N·mExhaust Gas Flow — Dry Manifold3630 CFM / 1713 L/s
Nominal Rail Pressure156 PSI / 1075 kPaExhaust Gas Temperatu — Dry Manifold915 °F / 491
Intake Manifold Pressure63  in.Hg / 213 kPaHeat Rejection to Ambient — Dry Manifold3120 BTU/min / 55 kW
Brake Mean Effective Pressure262 PSI / 1802 kPaHeat Rejection to Coolant — Dry Manifold12870  BTU/min / 226 kW
Piston Speed1875 ft/min / 9.5 m/sHeat Rejection to Coolant — Engine Water Flow200 U.S.GPM / 12.6 L/s


Performance Curve-CCEC Cummins KTA19-P700 Pump Engine. 680x720px

System Technical Data of CCEC KTA19-P700 Pump Engine

Exhaust SystemMaximum Allowable Back Pressure3.0 in.Hg / 10.0 kPa
Exhaust Pipe Size Normally Acceptable5 in / 127 mm
Air Induction SystemMaximum Allowable Intake Air Restriction With Heavy Duty Air Cleaner — Clean Element15 in.H2O /  3.47 kPa
Maximum Allowable Intake Air Restriction With Heavy Duty Air Cleaner — Dirty Element25 in.H2O / 6.23 kPa
Minimum Allowable Dirt Holding Capacity With Heavy Duty Air Cleaner25 gm/CFM / 53 gm·L/s
Cooling SystemCoolant Capacity — Engine Only8 U.S.Gal / 30.0 L
Coolant Capacity — Radiator With 100°F29.5 U.S.Gal / 111.7 L
Maximum Coolant Friction Heat External to Engine5.0 PSI / 34.5 kPa
Maximum Static Head of Coolant Above Engine Crank Centerline60 ft. / 18.3 m
Maximum Air Restriction Across Radiator0.50 in.H2O /  0.12 kPa
Minimum Raw Water Flow @ 90°F(32) to Heat Exchanger55 PSI / 208 kPa
Maximum Raw Water Inlet Pressure at Heat Exchanger100 PSI / 689 kPa
Standard Thermostat (Modulating) Range175-195 °F / 80-90
Maximum Coolant Pressure (Exclusive of Pressure Cap)35 PSI / 241 kPa
Minimum Allowable Pressure Cap7 PSI / 48 kPa
Maximum Allowable Top Tank Temperature200 °F / 93.3
Minimum Recommended Temperature for Top Tank160 °F / 71.1
Minimum Allowable Fill Rate5 U.S.Gal / 18.9 L/min
Maximum Allowable Initial Fill Time5 min
Minimum Allowable Coolant Expansion Space5%
Maximum Allowable Deaeration Time25 min
Minimum Allowable Drawdown (Drawdown Must Exceed the Volume Not Filled at Initial Fill & Must Not Include Expansion Space)3.0 U.S.Gal / 11.4 L
Lubrication SystemOil Pressure @ Idle20 PSI / 138 kPa
Oil Pressure @ Rated Speed50-70 PSI / 345-483 kPa
Oil Flow at Rated Speed40 U.S.Gal / 151.4 L/min
Maximum Allowable Oil Temperature250 °F / 121.0
Maximum Oil Consumption0.083 U.S.Gal / 0.31 L/min
By-Pass Filter Capacity — Spin-on Cartridge Type0.7 U.S.Gal / 2.65 L
Oil Pan Capacity — High10.0 U.S.Gal / 37.85 L
Oil Pan Capacity — Low8.5 U.S.Gal / 32.18 L
Total System Capacity (Excluding By-Pass Filter)12.5 U.S.Gal / 47.0 L
Angularty of Standard Oil Pan ( Option OP4020) — Front Down30 °
Angularty of Standard Oil Pan ( Option OP4020) — Front Up30 °
Fuel SystemMaximum Fuel Consumption at Maximum Rated Output and Speed172 lb/h / 78 kg/h
Maximum Fuel Flow to Pump at Maximum Rated Output and Speed600 lb/h / 272 kg/h
Maximum allowable Restriction to PT Fuel Pump — With Clean Fuel Filter4 in.Hg / 13.55 kPa
Maximum allowable Restriction to PT Fuel Pump — With Dirty Fuel Filter8 in.Hg / 27.09 kPa
Maximum Allowable Injector Return Line Restriction — With Check Valves6.5 in.Hg / 22 kPa
Maximum Allowable Injector Return Line Restriction — Less Check Valves2.5 in.Hg / 8.5 kPa
Minimum Allowable Fuel Tank Vent Capability (With 2.5 in. Hg (63 mm Hg) or Less Back Pressure)15 ft3/h / 425 L/h
Electrical SystemMinimum Recommended Battary Capacity(Cold Soak at 0°F(-18) or Above)24 V
Engine Only (De-clutched Load) — Cold Cranking Amperes900 CCA
Engine Only (De-clutched Load) — Reserve Capacity Min320
Engine With Connected Drive Train — Cold Cranking Amperes900 CCA
Engine With Connected Drive Train — Reserve Capacity Min320
Maximum Allowable Resistance of Starting Circuit — With 24 Volt Starter0.002 Ω
——END——

Scopes of Supply of CCEC KTA19-P700 Pump Drive Engine

Air Intake System1. Air Intake ManifoldExhuast System1. Exhuast Manifold
2. Water-air Intercooler2. Turbocharger
3. Air Filter3. Exhuast Elbow
Starting System1. Starter MotorCharging System1. Charging Alternator
2. Starter Rely2. N/A
Lubricating System1. Oil PumpFuel System1. Fuel Transfer Pump
2. Oil Filter2. High-pressure Fuel Pump
3. N/A3. Fuel Filter
Engine Shut-Down System1. Engine Fuel Shut-off SolenoidPower Output System1. Flywheel
2. N/A2. Standard Flywheel Housing
Control System1. Various Engine Speed ControllerEngine Mounting System1. Engine Mouting Bracket
Cooling System1. Water Pump
2. Engine Fan
3. Standard Radiator
——END——

Optional Accessories of CCEC KTA19-P700 Pump Engine

Air Intake System1. Air Intake Pre-heaterExhuast System1. Muffler & Bellows
2. Air Intake Pre-filter2. Flame Trap
3. Air Filter Alarm System3. Spark Arrestor Type Muffler & Bellows
4.N/A4. DPF System
Fuel System1. Coarse FilterEngine Auiliary Accessories1. Hydraulic Oil Pump
2. Fuel Pre-heater2. Hydraulic Cluch
Starting System1. Manual Magnetic DC ContactorControl System1. Engine Monitor
2. Dual Ears Flywheel Housing2.Engine Protection System with Alarm System
3. Spring Starter Motor3. Machanical Engine Control Lever System
4. Air Starter Motor4. Electric Engine Control Lever System
5. Hydraulic Starter Motor5. N/A
6. Manual Magnetic DC Contactor6. N/A
Power Output System1. Gear Reduction GearboxCooling System1. Coolant Pre-heater
2. Reverse Gear Box2. Jacket Water Heater
Lubricating System1. Oil Pre-heaterEngine Mounting System1. Shock Absorber Pad
——END——

As part of EMAC, PumpMac focusing on water pump set related business, from pump drive engine, to WPT PTO, from complete engine power pack to complete water pump set, from NFPA20 standard fire fighting pump accessories to fire pump drive package, from explosion proof accessories to complete explosion-proof water pump set, PumpMac provides professional one-stop solution for everything customer needed for water pump set industry.
For more information of our pump drive power pack and complete water pump set products, you are welcome to visit PumpMac homepage: www.pumpmac.com

Modifiable Components of CCEC KTA19-P700 Pump Engine

Air Intake System1. Installation Position of Air FilterCharging System1. 12V Charging Alternator for 12V Electric System
2. Upgrade to Heavy-duty Type Air Fitler2. Explosion-Proof Charging Alternator
3. N/A3. Upgrading to Specified Brand and Speicifications of Charging Alternator
Exhuast System1. Can Modify Installation Position and Direction of TurbochargerLubricating System1. Oil Pan Position
2. Water-cooled Exhuast Manifold2. Number of Dipstick
3. Water-cooled Turbocharger3. Position of Dipstick can Choose from 6 Positions
4. N/A4. Can modify oil filter to be remote installation
Fuel System1. Upgrade to Fuel Fitler that Integrated with Fuel Transfer Pump and Fuel Pre-hearterStarting System1. 12V Starter Motor for 12V Electric System
2. N/A2. Upgrading to Specified Brand and Speicifications of Starter Motor
Engine Shut-Down System1. 12V Solenoid for 12V Electric SystemPower Output System1. Can Modify Size of Flywheel Housing and Flywheel
2. Explosion-proof Solenoid2. Dual-ear Flywheel Housing (For twin-starter System)
3. N/A3. Some of Models can Modify Flywheel Housing into PTO Integrated Type
4. N/A4. Engine have Connecting Port of PTOs, that Able to Provide Power Output
Cooling System1. Can Modify Engine into Keel Cooling SystemEngine Mounting System1. Can Modify Engine Mouting Bracket
Engine Auiliary Accessories1. Additional Auxiliary Systems can be Added for Special Applications
——END——

Note: All Above Data are Just for Referenece, All Data Might Change Without Notices or Update, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.

The picture of Sale Manual showing the accessories and scopes of supply.

Engine Sale Manual

The picture of Installation Drawing showing the accessories and scopes of supply.

Installation Drawing

The picture of Installation Manual showing the accessories and scopes of supply.

Installation Manual

The picture of Operation Manual showing the accessories and scopes of supply.

Operation Manual

The picture of Engine Parts Catalogue showing the accessories and scopes of supply.

Parts Catalogue

The picture of Test Report and Certifcate showing the accessories and scopes of supply.

Report & Certifcate
