CCEC QSK19 Pump Engine

CCEC QSK19 series Pump Engine is 6-cylinder inline, 19 liters four-strokes engine with 159 mm (6.25 in) bore and 159 mm (6.25 in) stroke. CCEC QSK19 series Pump Engine equipped with PT Fuel System, comes with turbocharger. The prime power range of CCEC QSK19 series Pump Engine is from 506 HP to 815 HP (377 kW to 608 kW). The torque range of the QSK19 Series Pump Engine is 2407 N.m to 3084 N.m.

To achieve different output, CCEC QSK19 series Pump engine have three configurations which are turbocharged engine, turbocharge with water-air intercooler, turbocharge with air-air intercooler. In the detailed model name, code T means engine come with turbocharger, code single A means engine comes with water-air intercooler, and code double A means engine comes with air-air intercooler. As part of EMAC, ConeMac provides pump power pack solution that integrated with air intake, air exhaust, cooling system, control system, transmission and hydraulic accessories, We also supplying special products such as explosion proof engine, generator and water pump set, as well as ultra-low temperature condition engine power pack.

Coming Soon

Coming Soon

Coming Soon

General Specifications of QSK19 Series

Engine Type:4-Cycle; In-line; 6-Cylinder Diesel
Displacement:19 L
Rated Speed:1800 – 2100 RPM
Emission Standards:Euro II
Aspiration Method:Turbocharged & Air-Air Intercooler
Advertised Power:377 – 608 kW @ 1800 – 2100 RPM
Peak Torque:2407 – 3084 N.m @ 1300 – 1500 RPM
Bore * Stroke:159 mm * 159 mm
Wet Weight:2072 kg
Dimension (L * W * H):1679 mm * 872 mm * 1616 mm
CCEC QSK19 Pump Engine Catalogue

Engine Model

Rated Power

Peak Torque

Engine Model

Rated Power

Peak Torque

QSK19-P800596 kW @ 2100 RPM3084 N.m @ 2100 RPMQSK19-G3608 kW @ 1800 RPM3084 N.m @ 1800 RPM
QSK19-P760567 kW @ 2100 RPM3084 N.m @ 2100 RPMQSK19-P506377 kW @ 1800 RPM2755 N.m @ 1300 RPM
QSK19-P525391 kW @ 2000 RPM2407 N.m @ 1500 RPMQSK19-P560A418 kW @ 2000 RPM2644 N·m @ 1500 RPM
QSK19-P560B417 kW @ 2000 RPM2407 N.m @ 1500 RPMQSK19-P600447 kW @ 2000 RPM2643 N.m @ 1500 RPM
QSK19-P675503 kW @ 1800 RPM2983 N.m @ 1500 RPMQSK19-P700A522 kW @ 2000 RPM2983 N·m @ 1500 RPM
QSK19-P700B522 kW @ 1800 RPM2981 N.m @ 1500 RPM
——END——

CCEC QSK19 Series Pump Engine

This is the list of all series of CCEC QSK19 Series Pump Engine.
Click here to find pump engines by type (Fuel System & Emission Standard).

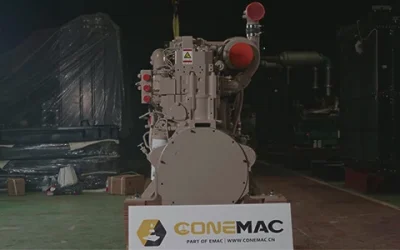

QSK19-P700A Pump Engine

QSK19-P700A Pump Engine

Power: 522 kW @ 2000 RPM
Fuel System: MCRS
Compression Ratio: 15.8 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

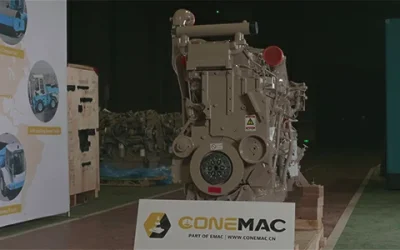

QSK19-P600 Pump Engine

QSK19-P600 Pump Engine

Power: 447 kW @ 2000 RPM
Fuel System: TC & Air-Air Intercooler
Compression Ratio: 15.8 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

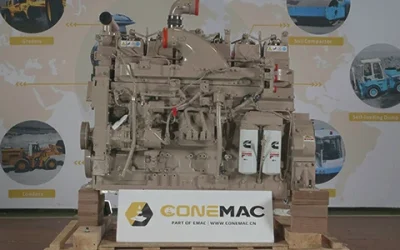

QSK19-P560A Pump Engine

QSK19-P560A Pump Engine

Power: 418 kW @ 2000 RPM
Fuel System: MCRS
Compression Ratio: 15.8 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

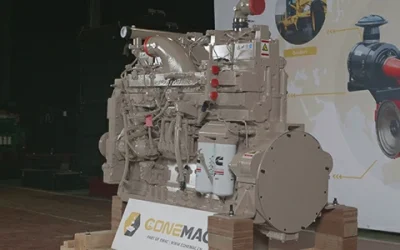

QSK19-P506 Pump Engine

QSK19-P506 Pump Engine

Power: 377 kW @ 1800 RPM
Fuel System: MCRS
Compression Ratio: 15.8 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

QSK19-G3 Pump Engine

QSK19-G3 Pump Engine

Rated Power: 608 kW @ 1800 RPM
Max. Torque: N/A
Fuel System: CMI MCRS
Aspiration: TC & Intercooler
Emission Standard: N/A

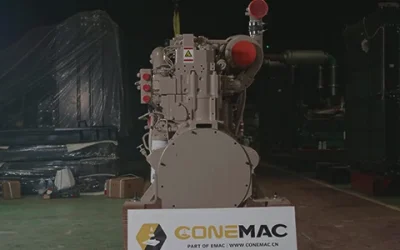

QSK19-P700B Pump Engine

QSK19-P700B Pump Engine

Power: 522 kW @ 1800 RPM
Fuel System: MCRS
Compression Ratio: 15.8 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

QSK19-P675 Pump Engine

QSK19-P675 Pump Engine

Power: 503 kW @ 1800 RPM
Fuel System: N/A
Compression Ratio: 15.8 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

QSK19-P560B Pump Engine

QSK19-P560B Pump Engine

Power: 418 kW @ 2000 RPM
Fuel System: N/A
Compression Ratio: 15.8 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: U.S. EPA Tier 3

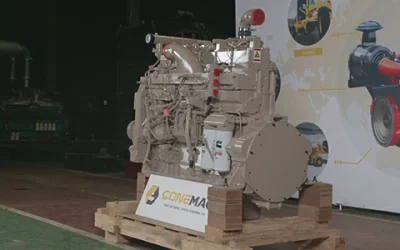

QSK19-P525 Pump Engine

QSK19-P525 Pump Engine

Power: 391 kW @ 2000 RPM
Fuel System: N/A
Compression Ratio: 15.8 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

QSK19-P800 Pump Engine

QSK19-P800 Pump Engine

Power: 800 BHP (597 kW) @ 2100 RPM
Fuel System: MCRS
Compression Ratio: 15.0 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: U.S. EPA Tier 2, CARB Tier 2

QSK19-P760 Pump Engine

QSK19-P760 Pump Engine

Power: 567 kW (760 HP) @ 2100 RPM
Fuel System: MCRS
Compression Ratio: 15.8 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: U.S. EPA Tier 2
