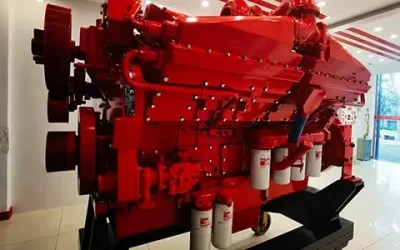

CCEC QSK50 Pump Engine

CCEC QSK50 series Pump Engine is V type 16-cylinder, 50.3 liters four-strokes engine with 159 mm (6.25 in) bore and 159 mm (6.25 in) stroke. CCEC QSK50 series Pump Engine equipped with PT Fuel System and Air-Air intercooler, comes with turbocharger. The prime power range of CCEC QSK50 series Pump Engine is from 1400 HP to 2500 HP (1044 kW to 1864 kW). The torque range of the QSK50 Series Pump Engine is 6379 N.m to 9601 N.m.

To achieve different output, CCEC QSK50 series pump engine have three configurations which are turbocharged engine, turbocharge with water-air intercooler, turbocharge with air-air intercooler. In the detailed model name, code T means engine come with turbocharger, code single A means engine comes with water-air intercooler, and code double A means engine comes with air-air intercooler. As part of EMAC, ConeMac provides pump power pack solution that integrated with air intake, air exhaust, cooling system, control system, transmission and hydraulic accessories, We also supplying special products such as explosion proof engine, generator and water pump set, as well as ultra-low temperature condition engine power pack.

Coming Soon

Coming Soon

General Specifications of QSK50 Series

Engine Type:V-16 Cylinder 4-Stroke 4-Valv
Displacement:50 L
Rated Speed:1800 – 1900 RPM
Emission Standards:Euro II
Aspiration Method:Turbocharged & Water-Air Intercooler
Advertised Power:1044 – 1864 kW @ 1800 – 1900 RPM
Peak Torque:6379 – 9601 N.m @ 1300 – 1800 RPM
Bore * Stroke:159 mm * 159 mm
Wet Weight:6717 – 6773 kg
Dimension (L * W * H):2857 mm * 1415 mm * 1766 mm
CCEC QSK50 Pump Engine Catalogue

Engine Model

Rated Power

Peak Torque

Engine Model

Rated Power

Peak Torque

QSK50-P14001044 kW @ 1,800 RPM6,379 N.m @ 1,300 RPMQSK50-P15001118 kW @ 1,800 RPM6,570 N.m @ 1,400 RPM
QSK50-P16001193 kW @ 1,800 RPM6,835 N.m @ 1,500 RPMQSK50-P16751249 kW @ 1800 RPM6,626 N.m @ 1,800 RPM
QSK50-P25001864 kW @ 1,900 RPM9,601 N.m @ 1,500 RPM
——END——

CCEC QSK50 Series Pump Engine

This is the list of all series of CCEC QSK50 Series Pump Engine.
Click here to find industrial engines by type (Fuel System & Emission Standard).

QSK50-P1675 Pump Engine

QSK50-P1675 Pump Engine

Power: 1249 kW @ 1800 RPM
Fuel System: Cummins MCRS
Compression Ratio: 15 : 1
Aspiration: 2-Stg Turbocharged and Aftercooled
Emission Standard: U.S. EPA Tier 2

QSK50-P1400 Pump Engine

QSK50-P1400 Pump Engine

Power: 1044 kW @ 1800 RPM
Fuel System: CMI MCRS
Compression Ratio: 15.0 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: U.S. EPA Tier 2

QSK50-P1500 Pump Engine

QSK50-P1500 Pump Engine

Power: 1118 kW @ 1800 RPM
Fuel System: CMI MCRS
Compression Ratio: 15.0 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: U.S. EPA Tier 2

QSK50-P1600 Pump Engine

QSK50-P1600 Pump Engine

Power: 1193 kW @ 1800 RPM
Fuel System: CMI MCRS
Compression Ratio: 15.0 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: U.S. EPA Tier 2

QSK50-P2500 Pump Engine

QSK50-P2500 Pump Engine

Power: 1864 kW @ 1900 RPM
Fuel System: CMI MCRS
Compression Ratio: 15.0 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: U.S. EPA Tier 2
