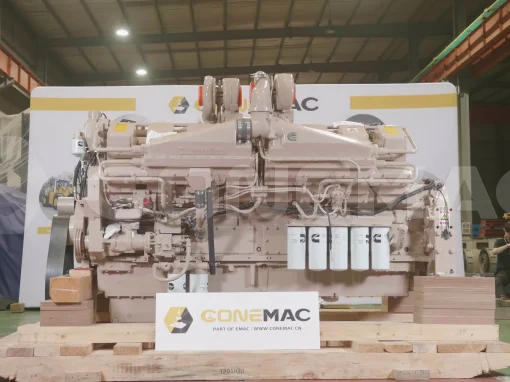

CCEC KTA50 Industrial Engine

CCEC K50 series Industrial Engine is V type16-cylinder, 50.3 liters four-strokes engine with 159 mm (6.25 in) bore and 159 mm (6.25 in) stroke. CCEC K50 series Industrial Engine equipped with PT Fuel System, comes with turbocharger. The prime power range of CCEC K50 series Industrial Engine is from 1600 HP to 2250 HP (1194 kW to 1679 kW). The torque range of the K50 Series Industrial Engine is 5071 N.m to 7865 N.m.

To achieve different output, CCEC K50 series Industrial engine have three configurations which are turbocharged engine, turbocharge with water-air intercooler, turbocharge with air-air intercooler. In the detailed model name, code T means engine come with turbocharger, code single A means engine comes with water-air intercooler, and code double A means engine comes with air-air intercooler. As part of EMAC, ConeMac provides industrial power pack solution that integrated with air intake, air exhaust, cooling system, control system, transmission and hydraulic accessories, We also supplying special products such as explosion proof engine, generator and water pump set, as well as ultra-low temperature condition engine power pack.

General Specifications of KTA50 Series

Engine Type:4 Cycle,60° Vee; 16 Cylinder
Displacement:50 L
Rated Speed:1900 – 2100 RPM
Emission Standards:Euro II – Euro III
Aspiration Method:Two Stage Turbocharged & Aftercooled
Advertised Power:1600 – 2682 HP @ 1900 – 2100 RPM
Peak Torque:5966 – 8849 N.m @ 1300 – 1500 RPM
Bore * Stroke:159 mm * 159 mm
Dry Weight:4846 – 5360 kg
Dimension (L * W * H):2690 mm * 1560 mm * 2260 mm
CCEC KTA50 Industrial Engine Catalogue

Engine Model

Rated Power

Peak Torque

Engine Model

Rated Power

Peak Torque

KTA50-C16001601 HP @ 2100 RPM5966 N.m @ 2100 RPMKTA50-C1600-II1601 HP @ 1900 RPM6291 N.m @ 1500 RPM
KTA50-C18001801 HP @ 1900 RPM5966 N.m @ 1500 RPMKTA50-C20002682 HP @ 1900 RPM7865 N.m @ 1500 RPM
KTTA50-C20001999 HP @ 1900 RPM7016 N.m @ 1500 RPMKTA50-C22502252 HP @ 1900 RPM8849 N.m @ 1500 RPM
——END——

CCEC KTA50 Series Industrial Engine

This is the list of all series of CCEC KTA50 Series Industrial Engine.
Click here to find industrial engines by type (Fuel System & Emission Standard).

KTTA50-C2000 Industrial Engine

KTTA50-C2000 Industrial Engine

Rated Power: 1999 HP @ 1900 RPM
Max. Torque: N/A
Fuel System: PT
Aspiration: Turbocharger & Aftercooler
Emission Standard: U.S. EPA Tier 1

KTA50-C1800 Industrial Engine

KTA50-C1800 Industrial Engine

Rated Power: 1801 HP @ 1900 RPM
Max. Torque: N/A
Fuel System: N/A
Aspiration: Two Stage Turbocharged & Aftercooled
Emission Standard: N/A

KTA50-C1600 Industrial Engine

KTA50-C1600 Industrial Engine

Rated Power: 1601 HP @ 2100 RPM
Max. Torque: N/A
Fuel System: N/A
Aspiration: TC & Aftercooled
Emission Standard: N/A

KTA50-C2000 Industrial Engine

KTA50-C2000 Industrial Engine

Rated Power: 2682 HP @ 1900 RPM
Max. Torque: N/A
Fuel System: N/A
Aspiration: Two Stage TC & Aftercooled
Emission Standard: N/A
