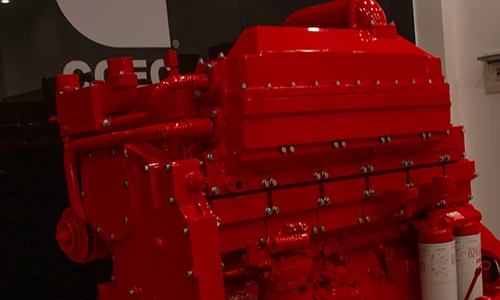

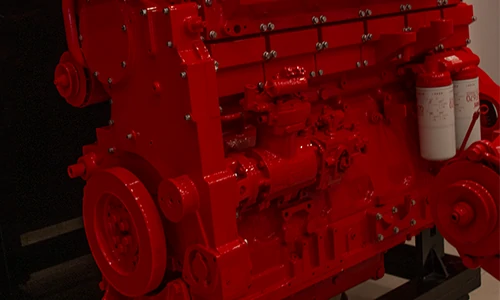

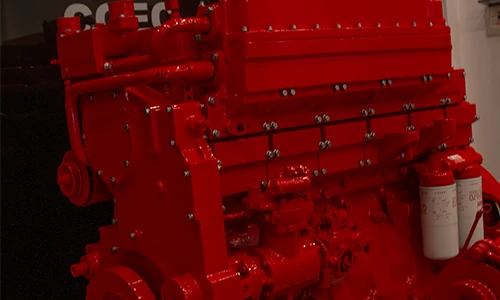

CCEC MTA11-G2A G-Drive Engine
CCEC MTA11-G2A(1500 RPM) Generator Drive Engine is 6-cylinder inlineundefined 10.8 liters four-strokes engine with 125 mm (4.92 in) bore and 147 mm (5.79 in) stroke.
MTA11-G2A Generator Drive Engine equipped with PT Fuel Systemundefined comes with turbocharger and Aftercooled intercooler. The Standby Power for 50HZ generator set (1500 RPM) of CCEC MTA11-G2A generator drive engine is 344 HP (257 kW). The Prime power for 50HZ generator set (1500 RPM) of CCEC MTA11-G2A generator drive engine is 314 HP (234 kW). The Continuous power for 50HZ generator set (1500 RPM) of CCEC MTA11-G2A generator drive engine is 235 HP (175 kW).
As Part of EMAC, SinoGen Also Provide Complete Power Supply Solutions that Powered by CCEC, Our Ranges of Products Including Open Type Generator Set, Silence Type Generator Set, Super Silence Type Generator Set, Mobile Trailer, Complete Power Truck and Complete Power Car for Railways Applications.
We Provide Full Life Cycle Services for All Customers, From Design to Power System Supply, from Installation to Commissioning, from After-Sales Service Training to Spare Parts Supply, From Trouble Shooting to Overhaul Technical Support.
Advantages of CCEC MTA11-G2A G-Drive Engine
High quality alloy cast iron for the rigidity performance and lower vibration and noise. Wet and replaceable cylinder liners for better heat rejection performance and easier replacement.
4 valves per cylinder, Optimize the mixed level which lead to an excellent fuel consumption rate and emis-sion performance. High quality alloy cast iron, one cylinder one head, single camshaft and special de-signed outine for better reliability and durability.
CMS unique PT with fixture and Step Timing control for precise fuel injection make the fuel injection pressure above 120Mpa, which leads to an ex-cellent fuel consumption rate and emission performance. Check valve in fuel tube improve reliability.
Gear water pump and great flux channel design pro-vide effective cooling. Spin-in water filter makes the coolant clean and keeps it in normal acidity.
Advanced Holset turbocharger and after-cooled technology, pulse exhaust manifold reduce exhaust temperature, provide excellence fuel consumption and emission performance.
Technical Specifications
Basic Introduction of CCEC MTA11-G2A G-Drive Engine
| Engine Model: | MTA11-G2A |
| Engine Type: | 6 – Cylinder; In – line; 4 – Cycle |
| Displacement: | 10.8 L |
| Rated Speed: | 1500 RPM |
| Aspiration Method: | TC & Aftercooled Intercooler |
| Emission Standard: | N / A |
| Bore*Storke: | 125 mm * 147 mm |
| Packing Size(L*W*H): | 1324 mm * 835 mm * 1183 mm |
| Dry Weight: | 940 kg |
| Lead Time: | 15-30 Working Days |
| Payment Terms: | T / T ,L / C |
Engine Model | Prime Power | Standby Power | Aspiration | Fuel System | Performance Curve |
| MTA11-G2-A | 224 kW / 1500 RPM @ 50 Hz | 246 kW / 1500 RPM @ 50 Hz | TC & Aftercooled Intercooler | PT | C – 2487A |
| MTA11-G2-B | 257 kW / 1800 RPM @ 60 Hz | 283 kW / 1800 RPM @ 60 Hz | TC & Aftercooled Intercooler | PT | C – 2487A |
| MTA11-G2A | 234 kW / 1500 RPM @ 50 Hz | 257 kW / 1500 RPM @ 50 Hz | TC & Aftercooled Intercooler | PT | C – 0236A |
| MTAA11-G3 | 282 kW / 1500 RPM @ 50 Hz | 310 kW / 1500 RPM @ 50 Hz | TC & Charged Air Cooled Intercooler | PT | C – 0237A |
| ——END—— | |||||
General Infomation of CCEC MTA11-G2A Generator Engine | |||
| Engine Model | MTA11-G2A | Configuration | D353009GX03 |
| Performance Curve | C – 0236A | CPL No. | 2165 |
| Type | 6 – Cylinder; In – line; 4 – Cycle | Aspiration | Turbocharged & Aftercooled Intercooler |
| Bore * Stroke | 125 mm * 147 mm / 4.92 in * 5.79 in | Displacement | 661 in3 / 10.8 L |
| Compression Ratio | 16.1 : 1 | Firing Order | 1 – 5 – 3 – 6 – 2 – 4 |
| Fuel System | PT | Prime Power | 234 kW / 1500 RPM @ 50 Hz |
| Standby Power | 257 kW / 1500 RPM @ 50 Hz | ||
Installation Data of CCEC MTA11-G2A Generator Engine | |||
| Wet Weight – Engine Only | 2160 lb / 980 kg | ||
| Wet Weight – Heat Exchanger Cooled Engine | N / A | ||
| Moment of Inertia of Rotating Components – with FW 2141 Flywheel | 62.4 lbm.ft2 / 2.63 kg.m2 | ||
| Center of Gravity Above Crankshaft Centerline | 7.5 in / 190 mm | ||
| Center of Gravity from Front Face of Block | 17.7 in / 450 mm | ||
| Dry Weight – Heat Exchanger Cooled Engine | N / A | ||
| Dry Weight – Including Flywheel and Generator Excluding other Electrial Component | 2072 lb / 940 kg | ||
| Maximum Bending Moment at Rear Face of Block | 1000 lb.ft / 1356 N.m | ||
| ——END—— | |||
Performance Data of CCEC MTA11-G2A Generator Engine | |||||
| Stanby Power | Prime Power | Stanby Power | Prime Power | ||
| Governed Engine Speed (RPM) | 1500 | 1500 | Engine Idle Speed (RPM) | 675 – 700 | 675 – 700 |
| Gross Engine Power Output (kW) | 257 | 234 | Friction Horsepower (kW) | 22.4 | 22.4 |
| Intake Air Flow (L / s) | 280 | 263 | Exhaust Gas Temperature (°C) | 518 | 510 |
| Exhaust Gas Flow (L / s) | 707 | 658 | Heat Rejection to Ambient (kW) | 34 | 31 |
| Heat Rejection to Coolant (kW) | 114 | 106 | Heat Rejection to Exhaust (kW) | 170 | 159 |
| Engine Water Flow (L / s) | 3.8 | 3.8 | |||
System Technical Data of CCEC MTA11-G2A Generator Engine | ||
| Exhaust System | Maximum Allowable Exhaust Back Pressure | 3 in Hg / 10 kPa |
| Air Induction System | Maximum Intake Air Restriction – with Dirty Filter Element | 25 in H2O / 6.2 kPa |
| Maximum Intake Air Restriction – with Normal Duty Air Cleaner and Clean Filter Element | 10 in H2O / 2.5 kPa | |
| Maximum Intake Air Restriction – with Heavy Duty Air Cleaner and Clean Filter Element | 15 in H2O / 3.7 kPa | |
| Coolig System | Coolant Capacity – Engine Only | 3.4 US gal / 12.9 L |
| Coolant Capacity – with Radiator | N / A | |
| Maximum Coolant Friction Head External to Engine – 1800 RPM | 6 PSI / 41 kPa | |
| Maximum Coolant Friction Head External to Engine – 1500 RPM | 5 PSI / 34 kPa | |
| Maximum Static Head of Coolant Above Engine Crank Centerline | 46 ft / 14 m | |
| Standard Thermostat (Modulating) Range | 180 – 200 °F / 82 – 94 °C | |
| Minimum Pressure Cap | 7 PSI / 50 kPa | |
| Maximum Top Tank Temperature for Standby / Prime Power | 220 / 212 °F / 104 / 100 °C | |
| Lubrication System | Oil Pressure @ Idle Speed | 10 PSI / 69 kPa |
| Oil Pressure @ Governed Speed | 30 – 50 PSI / 207 – 345 kPa | |
| Maximum Allowable Oil Temperature | 250 °F / 121 °C | |
| Oil Capacity with OP 2152 : Low – High | 7 / 9 US gal / 26.5 / 34 L | |
| Total System Capacity (with LF9009 Combine Filter) | 9.7 US gal / 36.7 L | |
| Angularity of OP2152 Oil Pan – Rear Down | 45° | |
| Angularity of OP2152 Oil Pan – Front Down | 42° | |
| Angularity of OP2152 Oil Pan – Exhaust Side Down | 45° | |
| Angularity of OP2152 Oil Pan – Fuel Pump Side Down | 40° | |
| Fuel System | Type Injection System | Direct Injection Cummins PT |
| Maximum Allowable Restriction to Fuel Pump – with Clean Fuel Filter | 4 in Hg / 13.5 in Hg | |
| Maximum Allowable Restriction to Fuel Pump – with Dirty Fuel Filter | 8 in Hg / 27.1 in Hg | |
| Maximum Allowable Head on Injector Return Line – With Check Valve | 6.5 in Hg / 22 kPa | |
| Maximum Allowable Head on Injector Return Line – Without Check Valve | 2.5 in Hg / 8.5 kPa | |
| Electrical System | Standard Cranking Motor (Heavy Duty, Positive Engagement) | 24 Volt |
| Standard Battery Charging System , Negative Ground | 35 ampere | |
| Maximum Allowable Resistance of Cranking Circuit | 0.002 ohm | |
| Minimum Recommended Battery Capacity – Cold Soak @ 50 °F (10 °C) and Above | 600 0°F CCA | |
| Minimum Recommended Battery Capacity – Cold Soak @ 32 °F to 50 °F (0 °C to 10 °C) | 640 0°F CCA | |
| Minimum Recommended Battery Capacity – Cold Soak @ 0 °F to 32 °F (-18 °C to 0 °C) | 900 0°F CCA | |
| Cranking System | Minimum Cranking Speed Required for Unaided Cold Start | 150 RPM |
| ——END—— | ||
Scopes of Supply of CCEC MTA11-G2A Generator Drive Engine | |||
| Air Intake System | 1. Air Intake Manifold | Exhuast System | 1. Exhuast Manifold |
| 2. Standard Air Filter | 2. Turbocharger | ||
| 3. Water-Air Intercooler | 3. Exhuast Elbow | ||
| Starting System | 1. Starter Motor | Charging System | 1. Charging Alternator |
| 2. Starter Rely | 2. N/A | ||
| Lubricating System | 1. Oil Pump | Cooling System | 1. Water Pump |
| 2. Oil Filter | 2. Engine Fan | ||
| 3. N/A | 3. Standard Radiator | ||
| Engine Shut-Down System | 1. Engine Fuel Shut-Off Solenoid | Power Output System | 1. Flywheel |
| 2. N/A | 2. Standard Flywheel Housing | ||
| Fuel System | 1. Fuel Transfer Pump | ||
| 2. High-Pressure Fuel Pump | |||
| 3. Fuel Filter | |||
| ——END—— | |||
Optional Accessories of CCEC MTA11-G2A Generator Drive Engine | |||
| Air Intake System | 1. Air Intake Pre-Heater | Exhuast System | 1. Muffler & Bellows |
| 2. Air Intake Shut-Off Valve | 2. Spark Arrestor Type Muffler & Bellows | ||
| 3. Heavy-Duty Air Filter | 3. DPF System | ||
| 4. Plateau Type Air Filter | 4. N/A | ||
| Fuel System | 1. Coarse Filter | Lubricating System | 1. Oil Pre-Heater |
| 2. Fuel Pre-Heater | 2. N/A | ||
| Starting System | 1. Manual Magnetic DC Contactor | Cooling System | 1. Silent Type Radiator |
| 2. Dual Ears Flywheel Housing | 2. Plateau Radiator | ||
| 3. Spring Starter Motor | 3. Salt-Spray Resistant Radiator | ||
| 4. Air Starter Motor | 4. Coolant Pre-Heater | ||
| 5. Hydraulic Starter Motor | 5. Jacket Water Heater | ||
| 6. Manual Magnetic DC Contactor | 6. N/A | ||
| ——END—— | |||
As part of EMAC, SinoGen focusing on generator set related business, from Generator drive engine power pack to complete generator set, from generator control panel to synchronizing cabinet, from super silent type generator set to mobile power trailer, SinoGen provides professional one-stop solution for everything customer needed for generator set.
For more information of our complete generator set products, you are welcome to visit SinoGen homepage: www.sino-gen.com
Modifiable components of CCEC MTA11-G2A Generator Drive Engine | |||
| Air Intake System | 1. Installation Position of Air Filter | Charging System | 1. 12V Charging Alternator for 12V Electric System |
| 2. Upgrade to Heavy-Duty Type Air Fitler | 2. Explosion-Proof Charging Alternator | ||
| Exhuast System | 1. Position of Turbocharger | Lubricating System | 1. Oil Pan Position |
| 2. Water-Cooled Exhuast Manifold | 2. Number of Dipstick | ||
| 3. Water-Cooled Turbocharger | 3. Position of Dipstick | ||
| Fuel System | 1. Upgrade to Fuel Fitler that Integrated with Fuel Transfer Pump | Starting System | 1. 12V Starter Motor for 12V Electric System |
| Engine Shut-Down System | 1. 12V Solenoid for 12V Electric System | Power Output System | 1. Size of Flywheel Housing and Flywheel. |
| 2. Explosion-Proof Solenoid | 2. Dual-Ear Flywheel Housing (For Twin-Starter System) | ||
| ——END—— | |||
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
