CCEC KTA38 – D(M)809 Auxiliary Engine

CCEC KTA38-DM809 (1800 RPM) Marine Auxiliary Engine is V Type 12-cylinder, 38 liters four-strokes engine with 159 mm (6.25 in) bore and 159 mm (6.25 in) stroke. KTA38-DM809 Marine Auxiliary Engine equipped with PT Fuel System, comes with turbocharged & water-air Intercooler, this marine diesel engine complies with IMO-NOx requirements of the International Maritime Organization (IMO). The Overload Capacity power at 1800 RPM of CCEC KTA38-DM809 Marine Auxiliary Engine is 1200 HP (895 kW), The Prime Power at 1800 RPM of CCEC KTA38-DM809 Marine Auxiliary Engine is 1085 HP (809 kW). The maximum torque of the engine at 1800 RPM is 4784 N.m.

1.Cylinder head and valve unit
Four-valve per cylinder design optimizes air/fuel mixture. Improves combustion and emissions. High-strength alloy casting, can withstand higher impact. Each cylinder has a cover, and the oil supply and oil return pipelines are drilled inside the cylinder head, with a simple structure and easy maintenance. Dual camshaft design for precise control of valve and injection timing.
2.Crankshaft connecting rod system
Integral crankshaft made of high-strength forged steel, rounded corners and crank necks are subjected to induction hardening treatment, and the fatigue strength of the crankshaft is higher. The piston is made of aluminum alloy casting, and the design of the w-shaped head and the barrel-shaped skirt can compensate for thermal expansion and cold contraction to ensure a good fit.
3.Lubrication system
High-capacity gear pumps provide pressurized oil to lubricate bearings and cool pistons. All pressure lubricating oil passages are drilled in the cylinder block and inside the cylinder. Oil cooler, full flow filter.

Technical Specifications

Basic Introduction of CCEC KTA38 – D(M)809 Marine Auxiliary Engine

Engine Model:KTA38 – D(M)809
Engine Type:V-12 Cylinders / 4 Stroke / 4 Valve
Displacement:38 L
Rated Speed:1800 RPM
Aspiration Method:Turbocharged & Water-Air Intercooler
Emission Standard:N / A
Bore*Storke:159 mm * 159 mm
Packing Size(L*W*H):2210mm * 1320mm * 1651mm
Dry Weight:3723kg
Lead Time:15-30 Working Days
Payment Terms:T / T ,L / C
CCEC-Marine-Engine-620x350-px-2-scaled (2)

Engine Model

Advertised Power

Aspiration

Compression Ratio

Fuel System

K38 – DM746746 kW (1000 HP) @ 1500 RPMTurbocharged / LTA13.9 : 1PT
K38 – DM821821 kW (1100 HP) @ 1800 RPMTurbocharged / LTA13.9 : 1Direct Injection CMI PT
K38 – DM880880 kW (1180 HP) @ 1500 RPMTurbocharged & Water-Air Intercooler13.9 : 1Direct Injection CMI PT
K38 – DM969969 kW (1300 HP) @ 1800 RPMTurbocharged & Water-Air Intercooler13.9 : 1Direct Injection CMI PT
KT38 – D(M)560560 kW (750 HP) @ 1500 RPMTurbocharged15.5 : 1PT
KT38 – D(M)679679 kW (910 HP) @ 1800 RPMTurbocharged15.5 : 1PT
KTA38 – D(M)664664  kW (890 HP) @ 1500 RPMTurbocharged & Water – Air Intercooler14.5 : 1PT Pump
KTA38 – D(M)768768 kW (1030 HP) @ 1800 RPMTurbocharged & Water – Air Intercooler14.5 : 1PT Pump
KTA38 – D(M)809809 kW (1085 HP) @ 1800 RPMTurbocharged & Water – Air Intercooler14.5 : 1PT
KTA38 – D(M)814814 kW (1092 HP) @ 1800 RPMTurbocharged & Water – Air Intercooler14.5 : 1PT Pump
KTA38 – D(M)880880 kW (1180 HP) @ 1500 RPMTurbocharged & Water – Air Intercooler14.5 : 1PT
KTA38 – D(M)10071007 kW (1350 HP) @ 1800 RPMTurbocharged & Water – Air Intercooler13.9 : 1PT
——END——

General Infomation of CCEC KTA38 – D(M)809 Marine Auxiliary  Engine

Engine ModelKTA38 – D(M)809ConfigurationD233037MX02
Curve No.D(M) – 646CPL CodeCQ607
Displacement2300 in3 / 38 LBore * Stroke159 mm * 159 mm / 6.25 in * 6.25 in
Fuel SystemPTCylinders12 Cylinders, V Type
Prime Power809 kW (1085 HP) @ 1800 RPMAspirationTurbocharged & Water-Air Intercooler
Rating TypePrime PowerOverloadRating TypePrime PowerOverload
Rated Engine Power1085 HP / 809  kW1200 HP / 895 kWRated HP Production Tolerance± 2 %N / A
Rated Engine Torque 3165 lb.·ft.  / 4292 N·m3501 lb.·ft.  / 4784 N·mGoverned Engine Speed1800 RPM1800 RPM
Brake Mean Effective Pressure206 PSI / 1419 kPa228 PSI / 1570 kPaIdle Speed Range725 – 775 RPMN / A
Piston Speed1878 ft/min / 9.54 m/secN / ACompression Ratio14.5 : 1N / A
Friction Power170 HP / 127 kWN / A
——END——

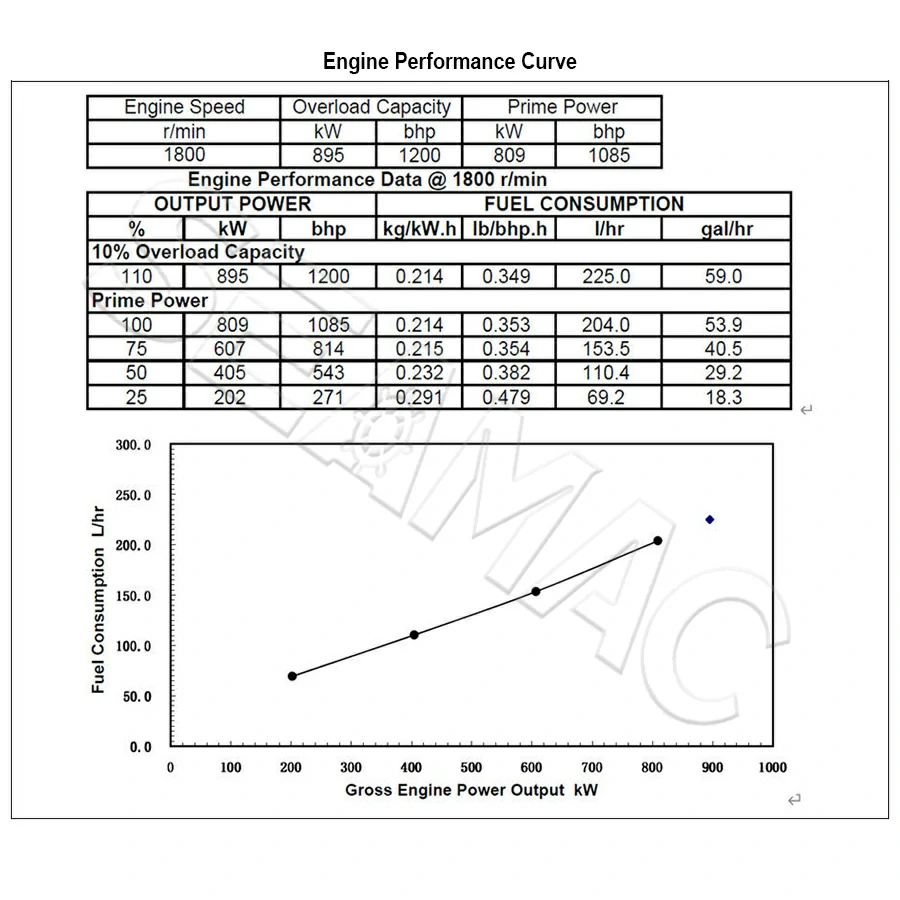

Performance Curve CCEC kt38-D(M)809 Marine Auxiliary Engine

System Technical Data of CCEC KTA38 – D(M)809 Marine Auxiliary  Engine

Fuel SystemPrime PowerOverload
Fuel Consumption53.9 GAL/hr / 204 L/hr59 GAL/hr / 225 L/hr
Approximate Fuel Flow to Pump80 GAL/hr / 303 L/hr85 GAL/hr / 322 L/hr
Maximum Allowable Fuel Supply to Pump Temperature140 °F / 60 °C140 °F / 60 °C
Approximate Fuel Flow Return to Tank26 GAL / 98 hr26 GAL / 97 hr
Fuel Rail Pressure76 PSI / 524 kPa86 PSI / 593 kPa
Weight
Dry – Engine Only8546 lb / 3880 kgN / A
Dry – Engine With Heatexchanger8989 lb / 4081 kgN / A
Installation Diagram No4915140
Hookup Diagram & Drawing, Electrical Circuit No40613494061350
Air SystemPrime PowerOverload
Intake Manifold PressureN / AN / A
Intake Air Flow2650 CFM / 1251 L/sec2900 CFM / 1369 L/sec
Heat Rejection to Ambient7001 BTU/min / 123 kW7741 BTU/min / 136 kW
Exhaust SystemPrime PowerOverload
Exhaust Gas Flow6966 CFM / 3289 L/sec7792 CFM / 3679 L/sec
Exhaust Gas Temperature (Turbine Out)905 °F / 485 °C936 °F / 502 °C
Heat Rejection to Exhaust35689 BTU/min / 627 kW38763 BTU/min / 681 kW
Cooling SystemPrime PowerOverload
Coolant Flow to Main Cooler (with open thermostat)108 GAL/min / 409 L/minN / A
Standard Thermostat Operating Range (Min)180 °F / 82 °CN / A
Standard Thermostat Operating Range (Max)199 °F / 93 °CN / A
Heat Rejection to Engine Coolant328232 BTU/min / 496 kW31192 BTU/min / 548 kW
Pressure Cap Rating (With Heat Exchanger Option)7 PSI / 50 kPaN / A
——END——

Scopes of Supply of CCEC KTA38 – D(M)809 Marine Auxiliary Engine

Exhaust System1. SilencerLubricating System1. Oil Pump
2. Bellows2. Oil Filter
Fuel System1. Fuel PumpStarting System1. Starter Motor
2. Oil Cut Solenoid Valve2. Fywheel Housing
3. Fuel Filter3. Flywheel
Charging System1. AlternatorControl System1.Stadnby Control Panel
Cooling System1. Seawater Pump
2. Heat Exchanger
——END——

Optional Accessories of CCEC KTA38 – D(M)809 Marine Auxiliary Engine

Exhaust System1. SilencerPower  System1. Battery
Fuel System1. Float Fuel TankCooling System1. Radiator
2. Oil – Water Separator2. Cooling Fan
3. Manual Fouling Pump3. Sea Water Pump
4. Fuel Inlet and Outlet Hose4. Heat Exchanger
Remote Control System1. Sea Water Pump
2. Heat Exchanger
——END——
