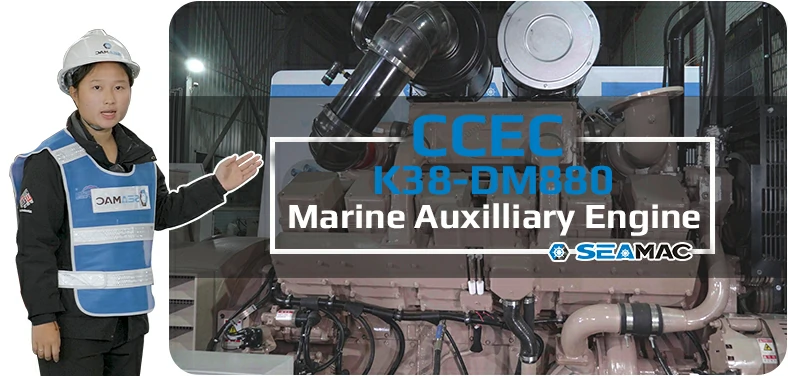

CCEC K38 – DM880 Auxiliary Engine

CCEC K38-DM880 (1500 RPM) Marine Auxiliary Engine is V Type 12-Cylinder, 38 liters four-Strokes Engine with 159 mm (6.25 in) Bore and 159 mm (6.25 in) Stroke.

K38-DM880 Marine Auxiliary Engine Equipped with Direct Injection CMI SPT Fuel System, Comes with Turbocharged / Aftercooled, This Marine Diesel Engine Complies with IMO-NOx Requirements of the International Maritime Organization (IMO). The Overload Capacity Power at 1500 RPM of CCEC K38-DM880 Marine Auxiliary Engine is 1300 HP (969 kW), The Prime Power at 1500 RPM of CCEC K38-DM880 Marine Auxiliary Engine is 1180 HP (880 kW). The Maximum Torque of the Engine at 1500 RPM is 6171 N.m.

Advantages of CCEC K38 – DM880 Auxiliary Engine

  • Four-valve per cylinder design optimizes air/fuel mixture. Improves combustion and emissions. High-strength alloy casting, can withstand higher impact. Each cylinder has a cover, and the oil supply and oil return pipelines are drilled inside the cylinder head, with a simple structure and easy maintenance. Dual camshaft design for precise control of valve and injection timing.

  • Integral crankshaft made of high-strength forged steel, rounded corners and crank necks are subjected to induction hardening treatment, and the fatigue strength of the crankshaft is higher. The piston is made of aluminum alloy casting, and the design of the w-shaped head and the barrel-shaped skirt can compensate for thermal expansion and cold contraction to ensure a good fit.

  • High-capacity gear pumps provide pressurized oil to lubricate bearings and cool pistons. All pressure lubricating oil passages are drilled in the cylinder block and inside the cylinder. Oil cooler, full flow filter.

Technical Specifications

Basic Introduction of CCEC K38 – DM880 Marine Auxiliary Engine

Engine Model:K38 – DM880
Engine Type:V-12 Cylinders / 4 Stroke / 4 Valve
Displacement:38 L
Rated Speed:1500 RPM
Aspiration Method:Turbocharged & Water-Air Intercooler
Emission Standard:N / A
Bore*Storke:159 mm * 159 mm
Packing Size(L*W*H):2210mm * 1320mm * 1651mm
Dry Weight:3723kg
Lead Time:15-30 Working Days
Payment Terms:T / T ,L / C

Coming Soon

Engine Model

Advertised Power

Aspiration

Compression Ratio

Fuel System

K38 – DM746746 kW (1000 HP) @ 1500 RPMTurbocharged / LTA13.9 : 1PT
K38 – DM821821 kW (1100 HP) @ 1800 RPMTurbocharged / LTA13.9 : 1Direct Injection CMI PT
K38 – DM880880 kW (1180 HP) @ 1500 RPMTurbocharged & Water-Air Intercooler13.9 : 1Direct Injection CMI PT
K38 – DM969969 kW (1300 HP) @ 1800 RPMTurbocharged & Water-Air Intercooler13.9 : 1Direct Injection CMI PT
KT38 – D(M)560560 kW (750 HP) @ 1500 RPMTurbocharged15.5 : 1PT
KT38 – D(M)679679 kW (910 HP) @ 1800 RPMTurbocharged15.5 : 1PT
KTA38 – D(M)664664  kW (890 HP) @ 1500 RPMTurbocharged & Water – Air Intercooler14.5 : 1PT Pump
KTA38 – D(M)768768 kW (1030 HP) @ 1800 RPMTurbocharged & Water – Air Intercooler14.5 : 1PT Pump
KTA38 – D(M)809809 kW (1085 HP) @ 1800 RPMTurbocharged & Water – Air Intercooler14.5 : 1PT
KTA38 – D(M)814814 kW (1092 HP) @ 1800 RPMTurbocharged & Water – Air Intercooler14.5 : 1PT Pump
KTA38 – D(M)880880 kW (1180 HP) @ 1500 RPMTurbocharged & Water – Air Intercooler14.5 : 1PT
KTA38 – D(M)10071007 kW (1350 HP) @ 1800 RPMTurbocharged & Water – Air Intercooler13.9 : 1PT
——END——

General Infomation of CCEC K38 – DM880 Marine Auxiliary  Engine

Engine ModelK38 – DM880ConfigurationD233038MX02
Curve No.DM – 6882CPL Code3875
Displacement2309 in3 / 38 LBore * Stroke159 mm * 159 mm / 6.25 in * 6.25 in
Fuel SystemDirect Injection CMI PTCylinders12
Prime Power880 kW (1180 HP) @ 1500 RPMAspirationTurbocharged & Water-Air Intercooler
Rating TypePrime PowerOverloadRating TypePrime PowerOverload
Rated Engine Power1180 HP / 880 kW1300 HP / 969 kWRated HP Production Tolerance± 5 %N / A
Rated Engine Torque 4132 lb.·ft.  / 5602 N·m4552 lb.·ft.  / 6171 N·mGoverned Engine Speed1500 RPMN / A
Brake Mean Effective Pressure270 PSI / 1860 kPa297 PSI / 2050 kPaIdle Speed Range725 – 775 RPMN / A
Piston Speed1563 ft/min / 8 m/secN / ACompression Ratio13.9 : 1N / A
Friction Power115 HP / 86 kWN / APiston Speed1R-6L-5R-2L-3R-4L-6R-1L-2R-5L-4R-3LN / A
Steady State Stability Band at Constant Load0.25 %N / AWeight Dry – Engine Only4301 kg / 9482 lbN / A
Weight Dry – Engine With Heat ExchangerN / AN / A
——END——

Performance Curve CCEC kt38-D(M)880 Marine Auxiliary Engine

System Technical Data of CCEC K38 – DM880 Marine Auxiliary  Engine

Fuel SystemPrime PowerOverload
Approximate Fuel Flow to Pump107.0 GAL/hr / 405.0 L/hr107.0 GAL/hr / 405.0 L/hr
Maximum Allowable Fuel Supply to Pump Temperature140 °F / 60 °C140 °F / 60 °C
Approximate Fuel Flow Return to Tank49.8 Gal/ hr / 188.4 L/ hr44.4 Gal/ hr / 168.1 L/ hr
Approximate Fuel Return to Tank Temperature162 °F / 72 °C163 °F / 73 °C
Fuel Rail Pressure122 PSI / 840 kPa139 PSI / 956 kPa
Average Fuel Consumption- Emissions ISO 8178 D2 Test Cycle30.4 Gal/ hr / 115.2 L/ hrN / A
Air SystemPrime PowerOverload
Intake Manifold Pressure49 in. Hg / 166 mm Hg54 in. Hg / 184 mm Hg
Intake Air Flow2106 CFM / 994 L/sec2236 CFM / 1055 L/sec
Heat Rejection to Ambient7480 BTU/min / 131 kW8090 BTU/min / 142 kW
Exhaust SystemPrime PowerOverload
Exhaust Gas Flow5764 CFM / 2720 L/sec6160 CFM / 2907 L/sec
Exhaust Gas Temperature (Turbine Out)999 °F / 537 °C1018 °F / 548 °C
Exhaust Gas Temperature (Manifold)1232 °F / 667 °C1268 °F / 687 °C
Heat Rejection to Exhaust39921 BTU/min / 701 kW43385 BTU/min / 762 kW
Emissions (in accordance with ISO 8178 Cycle D2)
NOx (Oxides of Nitrogen)6.275 g/kW·hr  / 4.680 g/BHP·hrN / A
HC (Hydrocarbons)0.240 g/kW·hr  / 0.179 g/BHP·hrN / A
CO (Carbon Monoxide)2.131 g/kW·hr  / 1.589 g/BHP·hrN / A
Emissions (in accordance with ISO 8178 Cycle E2)
NOx (Oxides of Nitrogen)7.078 g/kW·hr  / 5.278 g/BHP·hrN / A
HC (Hydrocarbons)0.208 g/kW·hr  / 0.155 g/BHP·hrN / A
CO (Carbon Monoxide)2.397 g/kW·hr  / 1.787 g/BHP·hrN / A
Cooling SystemPrime PowerOverload
Sea Water Pump SpecificationsMAB 0.08.17 – 07 / 16 / 2001N / A
Pressure Cap Rating (With Heat Exchanger Option)15 PSI / 103 kPaN / A
Main Engine Circuit
Coolant Flow to Engine Heat Exchanger (with open thermostat)260 GAL/min / 984 L/minN / A
Standard Thermostat Operating Range (Start to Open)180 °F / 82 °CN / A
Standard Thermostat Operating Range (Full Open)202 °F / 95 °CN / A
Heat Rejection to Engine Coolant3400 kW / 22750 Btu/min418 kW / 23820 Btu/min
Aftercooler (LTA) Circuit
Coolant Flow to LTA Cooler (with open thermostat)41 GAL/min / 155 L/minN / A
LTA Thermostat Operating Range (Start to Open)145 °F / 63 °CN / A
LTA Thermostat Operating Range (Full Open)175 °F / 80 °CN / A
Heat Rejection to Engine Coolant3105 kW / 6000 Btu/min119 kW / 6760 Btu/min
Maximum Coolant Inlet Temperature from LTA Cooler160 °F / 71 °CN / A
——END——

Scopes of Supply of CCEC K38 – DM880 Marine Auxiliary Engine

Exhaust System1. SilencerLubricating System1. Oil Pump
2. Bellows2. Oil Filter
Fuel System1. Fuel PumpStarting System1. Starter Motor
2. Oil Cut Solenoid Valve2. Fywheel Housing
3. Fuel Filter3. Flywheel
Charging System1. AlternatorControl System1.Stadnby Control Panel
Cooling System1. Seawater Pump
2. Heat Exchanger
——END——

Optional Accessories of CCEC K38 – DM880 Marine Auxiliary Engine

Exhaust System1. SilencerPower  System1. Battery
Fuel System1. Float Fuel TankCooling System1. Radiator
2. Oil – Water Separator2. Cooling Fan
3. Manual Fouling Pump3. Sea Water Pump
4. Fuel Inlet and Outlet Hose4. Heat Exchanger
Remote Control System1. Sea Water Pump
2. Heat Exchanger
——END——

Committed to providing reliable premium propulsion system and power system for all kinds of ships around the world, SeaMac is a sub-brand of EMAC group that focused on maritime application. SeaMac’s ranges of products mainly inclduing marine main engine, marine gearbox, marine propellers, marine control lever system, marine auxiliary engine, marine generator set and emergency generator set.
For more information of our marine proplusion and power system products, you are welcome to visit SeaMac homepage: www.seamac.com

Modifiable components of CCEC K38 – DM880 Marine Auxiliary Engine

Air Intake System1. Installation Position of Air FilterStarting System1. 12 V Starter Motor for 12 V Electric System
2. Upgrade to Heavy – Duty Type Air Fitler2. Upgrading to Specified Brand and Speicifications of Starter Motor
Exhuast System1. Can Modify Installation Position and Direction of TurbochargerCharging System1. 12 V Charging Alternator for 12 V Electric System
2. Water – Cooled Exhuast Manifold2. Explosion – Proof Charging Alternator
3. Water – Cooled Turbocharger3. Upgrading to Specified Brand and Speicifications of Charging Alternator
Fuel System1. Upgrade to Fuel Fitler That Integrated With Fuel Transfer Pump and Fuel Pre – HearterEngine Auiliary Accessories1. Additional Auxiliary Systems Can Be Added for Special Applications
Engine Shut-Down System1. 12 V Solenoid for 12 V Electric SystemCooling System1. Can Modify Engine Into Keel Cooling System
2. Explosion – Proof Solenoid2. N / A
Lubricating System1. Oil Pan PositionPower Output System1. Can Modify Size of Flywheel Housing and Flywheel.
2. Number of Dipstick2. Dual – Ear Flywheel Housing (for Twin – Starter System)
3. Position of Dipstick Can Choose From 6 Positions3. Some of Models Can Modify Flywheel Housing Into Pto Integrated Type
4. Can Modify Oil Filter to Be Remote Installation4. Engine Have Connecting Port of Ptos, That Able to Provide Power Output
Engine Mounting System1. Can Modify Engine Mouting Bracket
——END——

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
