DCEC 6BT Fire Pump Engine
DCEC 6BT series fire pump engine is a 6-cylinders in line, 5.9 liters four-strokes engine with 102 mm bore and 120 mm stroke. DCEC 6BT series fire pump engine equipped with Weifu (or BYC) fuel pump and provides both mechanical governor and electronic governor for customers to choose from.
The prime power range of DCEC 6BT series fire pump engine is from 96 kW to 153 kW.
DCEC fire pump engines have different configurations which have different power output, with code T in the engine model name means turbocharged engine, code TA in the engine model means turbocharge with water-air intercooler and code TAA in the engine model means turbocharge with air-air intercooler.
As part of EMAC, PumpMac provides abundant premium pump-driven power pack options, WPT PTO, Advance gearbox and pump head, as well as customized water pump set. We also have a set of NFPA20 standard engine power pack accessories including air intake shut-off valve, DC contactor, engine control panel, jacket water heater etc. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
DCEC 6BT5.9 series electronic fire pump engine can reach upto EU Stage V emission standard, the number 30/40/50 are the emission standard mark of engine, which means engine emission standard are EU Stage III, IV, V. For different emission standard DCEC 6BT5.9 series electronic fire pump engine, the engine itself are the same, the major different of different emission standard engine models are the after-treatment system and ECU program, EMAC will keep updating products introduction page of different emission standard engine models, welcome to subscribe our website to get latest update information.
If you are in need of engine model that not available on our website for the moment, please contact EMAC sales team for technical details and related documents, our well trained sales and engineering team will help you with all products and techical documents available here at DCEC.
General Specifications of 6BT Series
| Engine Type: | 6 Cylinders, in Line |
| Displacement: | 5.9 L |
| Rated Speed: | 1500 – 2500 RPM |
| Rated Power / Speed: | 97 – 15142 kW @ 2900 – 3000 RPM |
| Peak Torque: | N/A |
| Fuel System: | BYC PB / RSV Mechanical Governor |
| Aspiration Method: | Turbocharged & Air-Air Intercooler |
| Bore * Stroke: | 102 mm * 120 mm |
| Basic Engine(L * W * H): | 1015 mm * 725 mm * 990 mm |
| Dry Weight: | 413 -432 kg |
Engine Model |
Rated Power |
Peak Torque |
Engine Model |
Rated Power |
Peak Torque |
|
| 6BT5.9-C130 | 97 kW @ 2900 RPM | N/A | 6BTA5.9-C170 | 125 kW @ 2900 RPM | N/A | |
| 6BTAA5.9-C190 | 142 kW @ 2900 RPM | N/A | ||||
| ——END—— | ||||||
DCEC 6BT Series Fire Pump Engine
This list including all models of DCEC 6BT Series Fire Pump Engine.
Click here to find fire pump engines by type (Fuel System & Engine Speed).

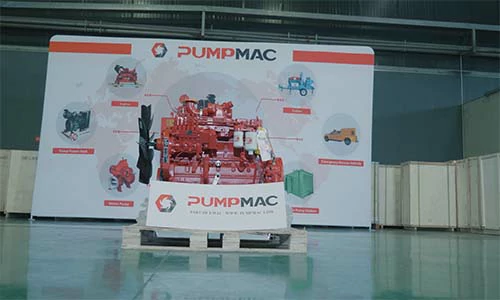

DCEC 6BTAA5.9-C190 Fire Pump Engine
Rated Power:142 kW @ 2900 RPM
Fuel Pump: BYC P7100
Governor: RSV Mechanical
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage II
DCEC 6BTA5.9-C170 Fire Pump Engine
Rated Power: 125 kW @ 2900 RPM
Fuel Pump: BYC PB
Governor:RSV Mechanical
Aspiration: TC & Water-AirIntercooler
Emission Standard: N/A
DCEC 6BT5.9-C130 Fire Pump Engine
Rated Power: 97 kW @ 2900 RPM
Fuel Pump: Mechanical
Governor:RSV Mechanical
Aspiration: Turbocharger
Emission Standard: N/A
