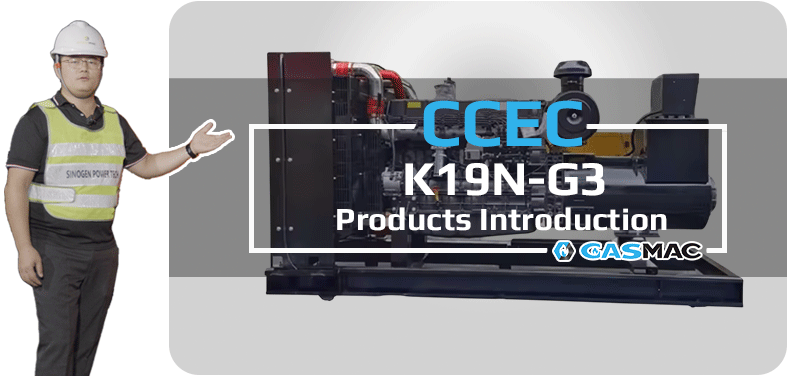

K19N-G3 Gas G-Drive Engine

CCEC K19N-G3(1500 RPM) Gas Generator Drive Engine is 6-Cylinder Inline, 19 liters  Four-Strokes Engine with 159 mm (6.25 in) Bore and 159 mm (6.25 in) Stroke.

K19N-G3 Gas Generator Drive Engine Equipped with Natural Gas Fuel System, Comes with Turbocharged & Water-Air Intercooler.The Standby Power for 50 Hz Generator Set (1500 RPM) of CCEC K19N-G3 Gas Generator Drive Engine is 520 HP (388 kW). The Prime Power for 50 Hz Generator Set (1500 RPM) of CCEC K19N-G3 Gas Generator Drive Engine is 345 HP (257 kW).The Continuous Power for 50 Hz Generator Set (1500 RPM) .

As Part of EMAC, SinoGen Also Provide Complete Power Supply Solutions that Powered by CCEC, Our Ranges of Products Including Open Type Generator Set, Silence Type Generator Set, Super Silence Type Generator Set, Mobile Trailer, Complete Power Truck and Complete Power Car for Railways Applications.

We Provide Full Life Cycle Services for All Customers, From Design to Power System Supply, from Installation to Commissioning, from After-Sales Service Training to Spare Parts Supply, From Trouble Shooting to Overhaul Technical Support.

Advantages of K19N-G3 Gas G-Drive Engine

  • Advanced design and sophisticated manufacturing to adapt to various harsh working conditions! High-strength parts, strong ability to work under heavy loads.

  • Cylinder block and cylinder head adopt integrated design. The occurrence of engine water leakage and oil leakage is prevented, and the parts are about 40 % less than other similar engines. The failure rate is greatly reduced.

  • Using forged steel camshaft and crankshaft, high-strength cylinder block design, multiple parts cast on the cylinder block, high rigidity, high pressure resistance, good reliability, and longer service life.

  • The cylinder bore adopts a platform mesh honing design. The perfect geometric structure effectively prevents oil leakage, and the use of advanced technology such as new piston ring components and gasket crimping and molding reduces oil loss.

  • The five key systems of the electronically controlled engine are all developed by DCEC, and have been applied and verified in different fields around the world to ensure the excellent economy and reliability of the product.

Technical Specifications

Engine Model:K19N-G3
Engine Type:6 Cylinders, in Line
Displacement:19 L
Rated Speed:1500 RPM
Rated Power / Speed:388 kW ( 520 HP ) @ 1500 RPM
Fuel System:Natural Gas
Aspiration Method:Turbocharged & Water-Air Intercooler
Emission Standard:Euro II
Bore * Stroke:159 mm * 159 mm
Packing Size (L * W * H):3350 mm * 1520 mm * 2000 mm
Wet Weight:2057 kg
Lead Time:15-30 Working Days
Payment Terms:T/T , L/C

coming soon

Engine Model

Prime Power

Aspiration

Configuration

Performance Curve

Compression Ratio

K19N-G1343 kW ( 460 HP ) @ 1500 RPMTurbocharged & Water-Air IntercoolerD483002GX03FR483211 : 1
K19N-G3388 kW ( 520 HP ) @ 1500 RPMTurbocharged & Water-Air IntercoolerD483002GX03TBD11 : 1
K19N-G4450 kW ( 603 HP ) @ 1500 RPMTurbocharged & Water-Air IntercoolerD483002GX03TBD11 : 1
——END——

General Infomation of CCEC K19N-G3 Gas G-Drive Engine

Engine ModelK19N-G3Curve NumberTBD
ConfigurationD483002GX03Displacement19 L
AspirationTurbocharged & Water-Air IntercoolerRating388 kW ( 520 HP ) @ 1500 RPM
Bore * Stroke159 mm * 159 mmFuel SystemNatural Gas
Compre Ratio11 : 1Type4 Cycle , ln-line , 6 Cylinder

Machine Data of CCEC K19N-G3 Gas G-Drive Engine

Wet Weight2057 kg
Moment of Inertia of Rotating Components without Flywheel1.82
C.G. Distance From Rear Face of Block599 mm
C.G. Distance Above Crankshaft Centerline282 mm
Maximum Allowable Static Load at Rear Main Bearing907 kg
——END——

System Technical Data of CCEC K19N-G3 Gas G-Drive Engine

Air Induction SystemMaximum Allowable Intake Air Restrictionwith Clean Element3.7 in.H2O
with Dirty Element6.2 in.H2O
Cooling SystemCoolant CapacityEngine Only34.1 U.S.Gal
After-cooler Only4.7 U.S.Gal
Minimum Allowable Pressure Cap @ sea level48 PSI
Maximum Static Head of Coolant Above Engine Crank Centerline18.3 ft.
Acceptable Types of Deaeration SystemPositive
Maximum Coolant Friction Head External to Engine55 PSI
Maximum Coolant Temperature(Maximum Top Tank Temp)95 °F
Thermostat (Modulating) Range82-94 °F
Maximum Coolant Friction Head External to Engine55 PSI
Maximum Coolant Temperature into the Aftercooler54 °
without Power Derate40 °
Thermostat (Modulating) Range32-43 °
Lubrication SystemOil PressureMinimum Low Idle138 PSI
Governed Speed345-483 PSI
Maximum Allowable Oil Temperature121 °F
Total System Capacity (Including By-Pass Filter)84.4 U.S.Gal
Fuel SystemMinimum Fuel Inlet Pressure @ Inlet of GMF Sensor Housing7 PSI
Maximum Fuel Inlet Pressure @ Inlet of GMF Sensor Housing34 PSI
Maximum Fuel Pressure Variation+/- 3 %
Acceptable FuelPipeline Quality Natural Gas
Minimum Fuel Methane Number*80 MN
Minimum Fuel Energy Content*33 BTU/scf
—END—



Scopes of Supply of CCEC K19N-G3 Gas G-Drive Engine

Air Intake System1. Air Intake ManifoldExhuast System1. Exhuast Manifold
2. Standard Air Filter2. Turbocharger
3. Water-Air Intercooler3. Exhuast Elbow
Starting System1. Starter MotorCharging System1. Charging Alternator
2. Starter Rely2. N/A
Lubricating System1. Oil PumpCooling System1. Water Pump
2. Oil Filter2. Engine Fan
3. N/A3. Standard Radiator
Engine Shut-Down System1. Engine Fuel Shut-Off SolenoidPower Output System1. Flywheel
2. N/A2. Standard Flywheel Housing
Fuel System1. Fuel Transfer Pump
2. High-Pressure Fuel Pump
3. Fuel Filter
——END——

Optional Accessories of CCEC K19N-G3  Gas G-Drive Engine

Air Intake System1. Air Intake Pre-HeaterExhuast System1. Muffler & Bellows
2. Air Intake Shut-Off Valve2. Spark Arrestor Type Muffler & Bellows
3. Heavy-Duty Air Filter3. DPF System
4. Plateau Type Air Filter4. N/A
Fuel System1. Coarse FilterLubricating System1. Oil Pre-Heater
2. Fuel Pre-Heater2. N/A
Starting System1. Manual Magnetic DC ContactorCooling System1. Silent Type Radiator
2. Dual Ears Flywheel Housing2. Plateau Radiator
3. Spring Starter Motor3. Salt-Spray Resistant Radiator
4. Air Starter Motor4. Coolant Pre-Heater
5. Hydraulic Starter Motor5. Jacket Water Heater
6. Manual Magnetic DC Contactor6. N/A
——END——

As part of EMAC, SinoGen focusing on generator set related business, from Generator drive engine power pack to complete generator set, from generator control panel to synchronizing cabinet, from super silent type generator set to mobile power trailer, SinoGen provides professional one-stop solution for everything customer needed for generator set.
For more information of our complete generator set products, you are welcome to visit SinoGen homepage: www.sino-gen.com

Modifiable components of CCEC K19N-G3 Gas G-Drive Engine

Air Intake System1. Installation Position of Air FilterCharging System1. 12 V Charging Alternator for 12 V Electric System
2. Upgrade to Heavy-Duty Type Air Fitler2. Explosion-Proof Charging Alternator
Exhuast System1. Position of TurbochargerLubricating System1. Oil Pan Position
2. Water-Cooled Exhuast Manifold2. Number of Dipstick
3. Water-Cooled Turbocharger3. Position of Dipstick
Fuel System1. Upgrade to Fuel Fitler that Integrated with Fuel Transfer PumpStarting System1. 12 V Starter Motor for 12 V Electric System
Engine Shut-Down System1. 12 V Solenoid for 12 V Electric SystemPower Output System1. Size of Flywheel Housing and Flywheel.
2. Explosion-Proof Solenoid2. Dual-Ear Flywheel Housing (For Twin-Starter System)
——END——

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
