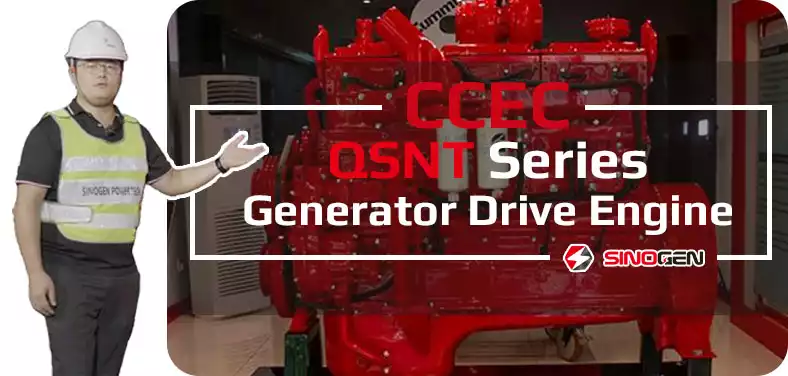

CCEC QSNT Generator Drive Engine
CCEC QSNT series generator drive engine is 12-cylinder inline, 14 liters four-strokes engine with 140 mm (5.5 in) bore and 152 mm (6.0 in) stroke. CCEC QSNT generator drive engine equipped with PT Fuel System, comes with turbocharged and Charge Air Cooled, with a EURO II post-processor.
The prime power range for 50 Hz generator set (1500 RPM) of CCEC QSNT series generator drive engine is from 358 kW to 545 kW.
The prime power range for 60 Hz generator set (1800 RPM) of CCEC QSNT series generator drive engine is from 358 kW to 669 kW.
CCEC generator drive engines have different configurations which have different power output, with code T in the engine model name means turbocharged engine, code TA in the engine model means turbocharge with water-air intercooler and code TAA in the engine model means turbocharge with air-air intercooler. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
General Specifications of QSNT Series
| Engine Type: | 6-Cylinder; In-line; 4-Cycle |
| Displacement: | 14 L |
| Rated Speed: | 1500 – 1800 RPM |
| Emission Standard: | Euro II |
| Fuel System: | CELECT |
| Standby Power: | 392 – 448 kW @ 1500 – 1800 RPM |
| Prime Power: | 358 – 545 kW @ 1500 – 1800 RPM |
| Bore * Stroke: | 140 mm * 152 mm |
| Dry Weight: | 1460 kg |
| Packing Size (L * W * H): | 1534 mm * 781 mm * 1355 mm |
| CCEC QSNT – Drive Engine Catalogue | |||||||
Engine Model | Rated Power | Aspiration | Engine Model | Rated Power | Aspiration | ||
| QSNT-G3-A | 358 kW (480 HP) @ 1500 RPM | Charge Air Cooled Intercooler | QSNT-G3-B | 358 kW (480 HP) @ 1800 RPM | Charge Air Cooled Intercooler | ||
| QSNT-G4 | 545 kW (407 HP) @ 1500 RPM | Charge Air Cooled Intercooler | QSNT-G4X | 545 kW (407 HP) @ 1500 RPM | Charge Air Cooled Intercooler | ||
| ——END—— | |||||||
CCEC QSNT Series G-drive Engine
All models of CCEC QSNT Series G-drive Engine.
Click here to find G-drive engines by type (Fuel System & Engine Speed).
QSNT-G3-A G-Drive Engine
Power: 358 kW (480 HP) @ 1500 RPM
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: STG IIIA, NRMM 3
QSNT-G3-B G-Drive Engine
Power: 358 kW (480 HP) @ 1800 RPM
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: STG IIIA, NRMM 3
QSNT-G4 G-Drive Engine
Power: 407 kW (545 HP) @ 1500 RPM
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

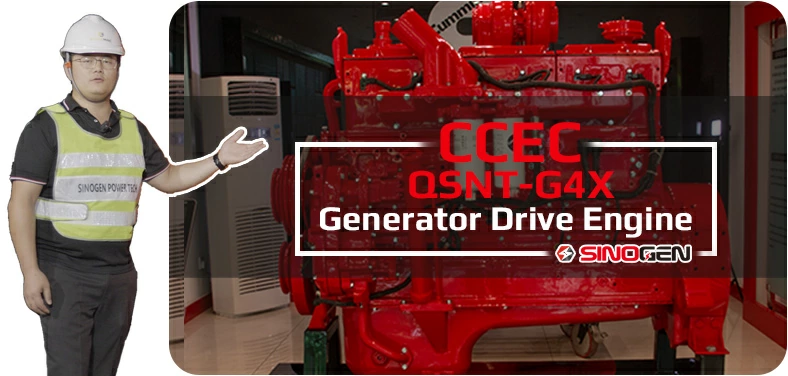

QSNT-G4X G-Drive Engine
ower: 407 kW (480 HP) @ 1500 RPM
Fuel System: CELECT
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A
