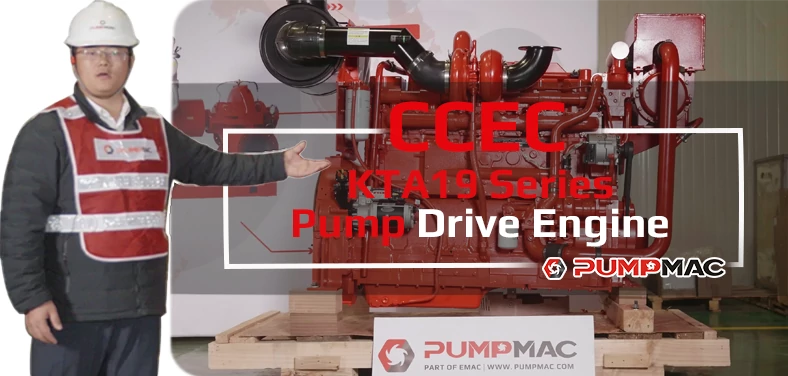

CCEC KTA19 Pump Drive Engine
CCEC K19 Series Pump Drive Engine is a 6-cylinder inline, 18.9 liters four-strokes engine with 159 mm (6.25 in) bore and 159 mm (6.25 in) stroke. K19 Series Pump Drive Engine equipped with PT Fuel System, comes with turbocharger. The power range of CCEC K19 series pump drive engine is from 450 HP to 890 HP (336 kW to 664 kW). The torque range of the K19 Series Pump Drive Engine is 1575 N.m to 3883 N.m.
EMAC is a partner of CCEC for many years, we are a professional pump system solution supplier with many years of experience. We provide customers from all over the world with one-stop pump system solutions from pump system design to pump system supply, from installation to commissioning, and from after-sales. Providing sales service support for spare parts supply, EMAC is your reliable pump system partner, providing you with the best value for money and reliable system solutions.
General Specifications of KTA19 Series
| Engine Type: | 4 Cycle , In-line , 6 Cylinder |
| Displacement: | 19 L |
| Rated Speed: | 1500 – 2100 RPM |
| Rated Power / Speed: | 336 – 664 kW @ 1500 – 2100 RPM |
| Peak Torque: | 1575 – 3228 N.M @ 1300 – 2653 RPM |
| Fuel System: | PT-STC / CMS PT |
| Aspiration Method: | Turbocharged & Water-Air Intercooler |
| Bore * Stroke: | 159 mm * 159 mm |
| Basic Engine (L * W * H): | 2142 mm * 1067 mm * 1733 mm |
| Wet Weight: | 1669 – 2769 kg |
Engine Model | Rated Power | Peak Torque | Engine Model | Rated Power | Peak Torque | |
| KTA19-P450 | 336 kW (450 HP) @ 2100 RPM | 1907 N.m @ 1350 RPM | KTA19-P495 | 369 kW (495 HP) @ 1500 RPM | 2349 N.m @ 1500 RPM | |
| KTA19-P500A | 373 kW (500 HP) @ 1500 RPM | 2587 N.m @ 1350 RPM | KTA19-P500B | 373 kW (500 HP) @ 1800 RPM | 1575 N.m @ 1500 RPM | |
| KTA19-P525A | 392 kW (525 HP) @ 1800 RPM | 2182 N.m @ 1400 RPM | KTA19-P525B | 392 kW (525 HP) @ 2100 RPM | 1780 N.m @ 1300 RPM | |
| KTA19-P600A | 448 kW (600 HP) @ 1500 RPM | 2852 N.m @ 1500 RPM | KTA19-P600B | 448 kW (600 HP) @ 1800 RPM | 1800 N.m @ 2653 RPM | |
| KTA19-C600 | 448 kW (600 HP) @ 2100 RPM | 2237 N.m @ 1500 RPM | KTA19-P680 | 507 kW (680 HP) @ 1500 RPM | 3228 N.m @ 1500 RPM | |
| KTA19-P700 | 522 kW (700 HP) @ 1800 RPM | 3223 N.m @ 1400 RPM | KTA19-P750 | 559 kW (750 HP) @ 1800 RPM | 2965 N.m @ 1800 RPM | |
| KTA19-P755 | 563 kW (755 HP) @ 1800 RPM | 2987 N.m @ 1800 RPM | KTAA19-P673 | 502 kW (673 HP) @ 1500 RPM | 3629 N.m @ 1500 RPM | |
| KTAA19-C700 | 522 kW (700 HP) @ 2100 RPM | 2731 N.m @ 1300 RPM | KTAA19-P818 | 610 kW (818 HP) @ 1500 RPM | 3883 N.m @ 1500 RPM | |
| KTAA19-P890 | 664 kW (890 HP) @ 1800 RPM | 3523 N.m @ 1800 RPM | ||||
| ——END—— | ||||||
CCEC KTA19 Series Pump Drive Engine
This list including all models of CCEC KTA19 Series Pump Drive Engine.
Click here to find pump engines by type (Fuel System & Engine Speed).
KTA19-P450 Pump Engine
Rated Power: 336 kW (450 HP) @ 2100 RPM
Fuel System: PT-STC
Compression Ratio: 15.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
KTA19-P495 Pump Engine
Rated Power: 369 kW (495 HP) @ 1500 RPM
Fuel System: CMI PT
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
KTA19-P500A Pump Engine
Rated Power: 373 kW (500 HP) @ 1500 RPM
Fuel System: PT-STC
Compression Ratio: 14.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
KTA19-P500B Pump Engine
Rated Power: 373 kW (500 HP) @ 1800 RPM
Fuel System: PT-STC
Compression Ratio: 14.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
KTA19-P525A Pump Engine
Rated Power: 392 kW (525 HP) @ 1800 RPM
Fuel System: PT-STC
Compression Ratio: 14.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
KTA19-P525B Pump Engine
Rated Power: 392 kW (525 HP) @ 2100 RPM
Fuel System: PT-STC
Compression Ratio: 15.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
KTA19-P600A Pump Engine
Rated Power: 448 kW (600 HP) @ 1500 RPM
Fuel System: CMI PT
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
KTA19-P600B Pump Engine
Rated Power: 448 kW (600 HP) @ 1800 RPM
Fuel System: PT-STC
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
KTA19-C600 Pump Engine
Rated Power: 448 kW (600 HP) @ 2100 RPM
Fuel System: PT-STC
Compression Ratio: 15.5 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
KTA19-P680 Pump Engine
Rated Power: 507 kW (680 HP) @ 1500 RPM
Fuel System: PT-STC
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
KTA19-P700 Pump Engine
Rated Power: 522 kW (700 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
KTA19-P750 Pump Engine
Rated Power: 559 kW (750 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
KTA19-P755 Pump Engine
Rated Power: 504 kW (675 HP) @ 1800 RPM
Fuel System: CMI PT
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
KTAA19-P673 Pump Engine
Rated Power: 570 kW (764 HP) @ 1500 RPM
Fuel System: CMI PT
Compression Ratio: 13.9 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A
KTAA19-C700 Pump Enegin
Rated Power: 522 kW (700 HP) @ 2100 RPM
Fuel System: N/A
Compression Ratio: N/A
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A
KTAA19-P818 Pump Engine
Rated Power: 610 kW (818 HP) @ 1500 RPM
Fuel System: PT-STC
Compression Ratio: 13.9 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A
KTAA19-P818B Pump Engine
Rated Power: 552 kW (740 HP) @ 1500 RPM
Fuel System: PT-STC
Compression Ratio: 13.9 : 1
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
KTAA19-P890 Pump Engine
Rated Power: 664 kW (890 HP) @ 1800 RPM
Fuel System: CMS PT
Compression Ratio: 13.9 : 1
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A
